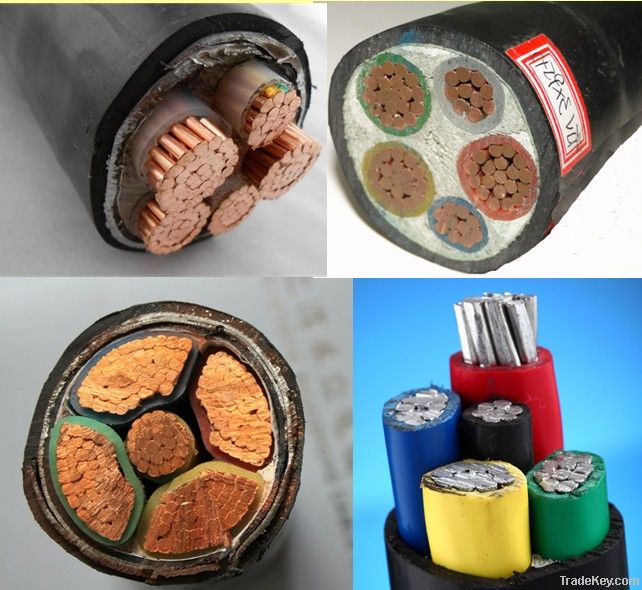

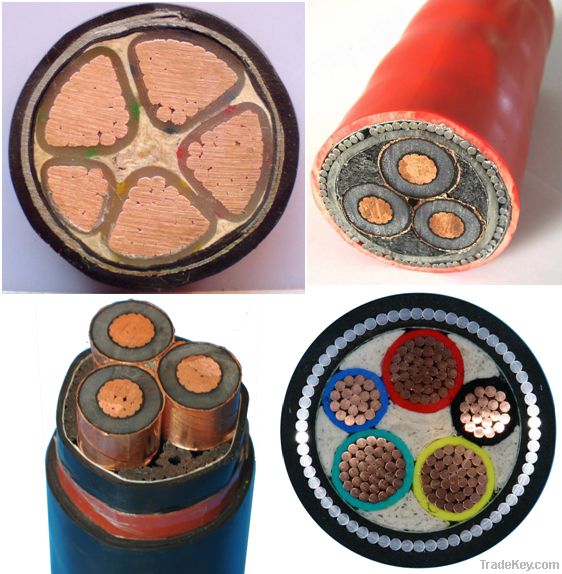

0.6/1kv pvc insulated pvc shesathed power cable

FOB Price

Get Latest Price

1.5 ~ 12.5 USD / Meter ( Negotiable )

1000 Meter Minimum Order

Country:

China

Model No:

LV---600/1000V

FOB Price:

1.5 ~ 12.5 USD / Meter ( Negotiable )(Negotiable) Get Latest Price

Place of Origin:

Henan province

Price for Minimum Order:

1.5 per Meter

Minimum Order Quantity:

1000 Meter

Packaging Detail:

Fumigated wooden cable drum or as required

Delivery Time:

Within 30 days after receiving the downpayment

Supplying Ability:

1000000 Meter per Month

Payment Type:

T/T, L/C, Western Union, Money Gram, PayPal, Other

Product Group :

power cable

Contact Now

Jiaozuo City Baofeng Cable Co., Ltd.

China

Free Member

Contact Person katherine

Daxue Road,Erqi District,Zhengzhou City,Henan Province,China, Zhengzhou, Henan

Contact Now

Product Specification

Factory:More that 500 worker in Henan province
Number of cores:1 core,2 core,3 core,4 core,3+1 core,5 core,4+1 core,3+
Rated voltage---First class conuctor:0.6/1kV,1.8/3kV,3.6/6kV,6/10kV,8.7/15kV,12/20kV,18/30kV
Rated voltage---Second class conuctor:1/1kV,3/3kV,6/6kV,8.7/10kV,12/15kV,18/20kV - 26/35kV
Cross section:4-600sqmm like 4mm2,6mm2,10mm2...185mm2,300mm2,400mm2..
Conductor Type:Plain circular compacted stranded or solid conductor
Certificates:CE/ISO/ROSH/CCC/IECEE

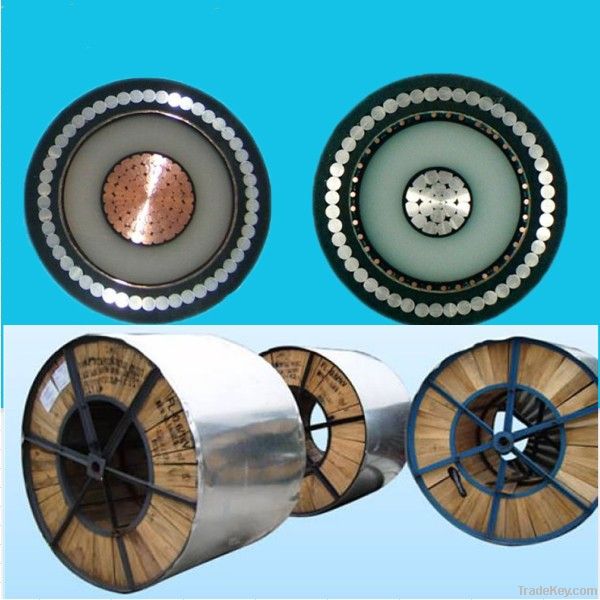

Packing:Fumigated wooden cable drum,steel cable drum
Colour:As per Standards CNS, BS, VDE-DIN, IEC...
Ports:Xiamen port,Ningbo port or Qingdao Port or as required

Product Description

Power cable***-0.6/1kv pvc insulation and pvc shesath
is an assembly of one or more electrical conductors, usually held together with an overall sheath. The assembly is used for transmission of electrical power. Power cables may be installed as permanent wiring within buildings, buried in the g swa copper cable round, run overhead, or exposed.
Standards: swa copper cable
IEC****2,and BS***6, VDE, AS/NZS, UL,etc or as customer's request.

Application: swa copper cable
These cables are most suitable for direct burial or for installation on trays or ducts, Where there is a risk of
mechanical damage, armoured cables should be used.

Nominal Section Area(mm2):
1.5 2.5 4 6 *0 *6 *5 *5 *0 *0 *5 **0 **0 **5 **0 **0 **0 **0 **0 **0 ***0

Construction & descriptions:

Type		Description	Application
Cu	Al	Description	Application
Cu/PVC/PVC Cu/XLPE/PVC	Al/PVC/PVC Al/XLPE/PVC	PVC or XLPE insulation PVC sheath power cable	To be laid indoors, in tunnel, cable furrow or pipe, the cable couldn't bear mechanical force outside
Cu/PVC/PE Cu/XLPE/PE	Al/PVC/PE Al/XLPE/PE	PVC or XLPE insulation PE sheath power cable
Cu/PVC/STA/PVC Cu/XLPE/STA/PVC	Al/PVC/STA/PVC Al/XLPE/STA/PVC	PVC or XLPE insulation, steel tape armor, PVC sheath power cable	To be laid underground, the cable could bear certain mechanical force, but it couldn't bear great pulling force.
Cu/PVC/STA/PE Cu/XLPE/STA/PE	Al/PVC/SWA/PE Al/XLPE/SWA/PE	PVC or XLPE insulation, steel tape armor, PE sheath power cable
Cu/PVC/ATA/PVC Cu/XLPE/ATA/PVC	Al/PVC/ATA/PVC Al/XLPE/ATA/PVC	PVC or XLPE insulation, have no the magnetism steel tape armor, PVC sheath power cable
Cu/PVC/(thin)SWA/PVC Cu/XLPE/ (thin)SWA/PVC	Al/PVC/(thin) SWA/PVC Al/XLPE/(thin) SWA/PVC	PVC or XLPE insulation, thin steel-wire armor, PVC sheath power cable	Be applicable to the well, water inside and fall in the bad soil, the cable cans bear the equal dint outside the machine with pull the dint .
Cu/PVC/AWA/PVC Cu/XLPE/AWA/PVC	Al/PVC/AWA/PVC Al/XLPE/AWA/PVC	PVC or XLPE insulation, have no the magnetism thick steel-wire armor, PVC sheath power cable
Cu/PVC/(thick)SWA/PVC Cu/XLPE/(thick) SWA/PVC	Al/PVC/ (thick)SWA/PVC Al/XLPE/ (thick)SWA/PVC	PVC or XLPE insulation, thick steel-wire armor, PVC sheath power cable	Be applicable to the well, underwater with the bottom of sea, the cable cans bear the bigger pressure with lead to pull the dint.

Country:	China
Model No:	LV---600/1000V
FOB Price:	1.5 ~ 12.5 / Meter ( Negotiable ) (Negotiable) Get Latest Price
Place of Origin:	Henan province
Price for Minimum Order:	1.5 per Meter
Minimum Order Quantity:	1000 Meter
Packaging Detail:	Fumigated wooden cable drum or as required
Delivery Time:	Within 30 days after receiving the downpayment
Supplying Ability:	1000000 Meter per Month
Payment Type:	T/T, L/C, Western Union, Money Gram, PayPal, Other
Product Group :	power cable
