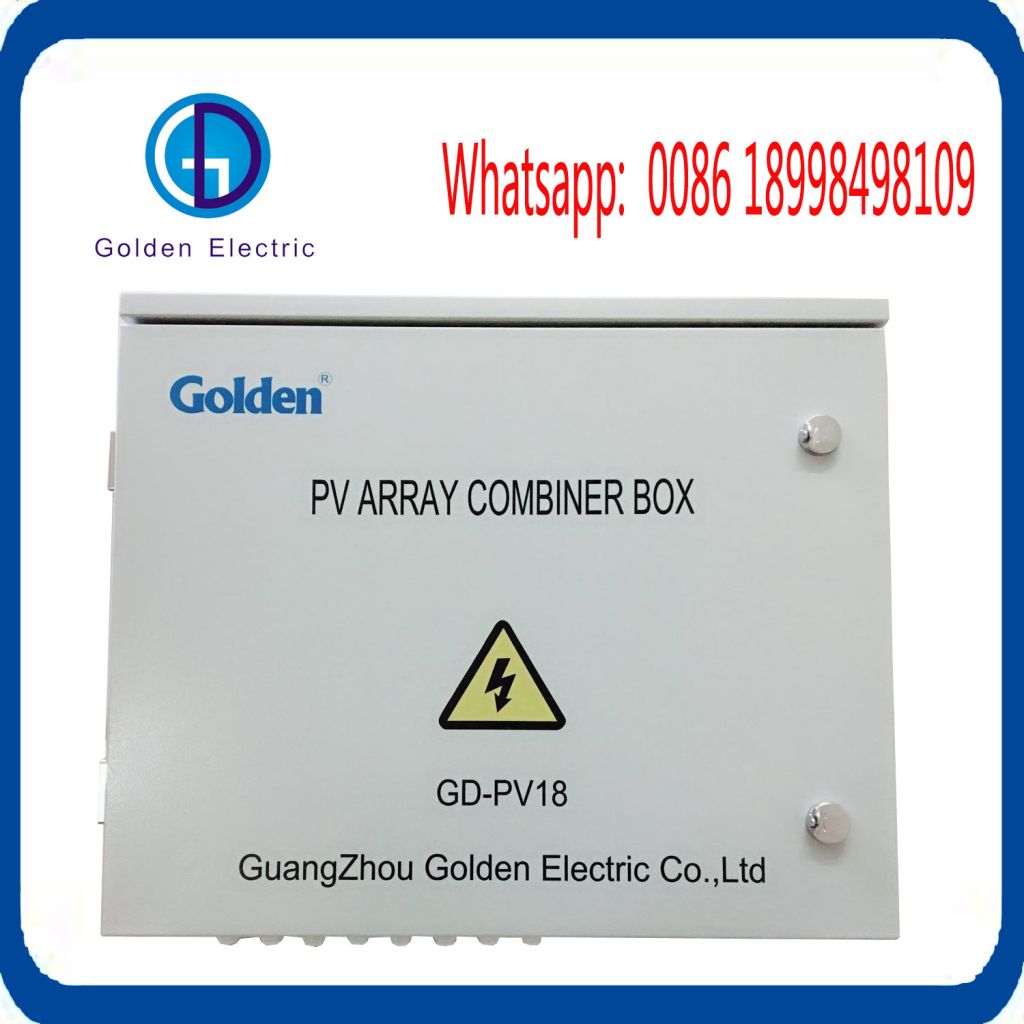

1000V Solar Distribution Box PV Array 12 String DC Combiner Box

FOB Price

Get Latest Price

50 ~ 1000 USD / Unit

1 Piece Minimum Order

Country:

China

Model No:

FOB Price:

50 ~ 1000 USD / Unit (Negotiable) Get Latest Price

Place of Origin:

china

Price for Minimum Order:

50 per Unit

Minimum Order Quantity:

1 Piece

Packaging Detail:

1piece packing with one carton

Delivery Time:

10days after payment

Supplying Ability:

1000 Piece per Week

Payment Type:

T/T, Western Union, Money Gram, PayPal

Product Group :

pv combiner box

Contact Now

GUANGZHOU GOLDEN ELECTRIC CO., LTD

China

Free Member

Contact Person Ms. member

Guangzhou, Guangdong

Contact Now

Product Specification

Brand Name: GOLDEN
Material: METAL
Size: 500*300*200
Max. Power: 1000vdc

Voltage 1000VDC:CIRCUIT BREAKER 300A
FUSE 1000V 15A:WITHOUT MONITORING

Product Description

***0V Solar Distribution Box *2 String DC Combiner Box
*2 String DC Combiner Box
High reliability:
With DC fuse
With DC surge protection Device
With DC circuit breaker or DC load isolation switch.

Strong adaptability:
Ip*5 design,waterproof,anti dust and anti ultraviolet.
Strict test for high and low temperature,used widely.
The simple installation,the simplified system wiring,the convenient wiring.
The box body is made of cold rolled steel and other metal materials.

Flexible configuration:
Used for single crystal silicon solar modules,polycrystalline silicon solar modules,thin film solar modules.
current rating of the photovoltaic fuse,circuit breaker,load isolation switch is modified.

Technical Specification of PV Combiner Box

Name	PV Combiner box
Electric parameter
system Max DC Volt	***0V
Max amp for each string	*5A
Max strings	*6
Max output switch amp	**0A
Number of inverter MPPT	1
Number of output strings	1
Lighting protection
category of test	II grade protection
Nominal discharge amp	*0KA
Max discharge amp	*0KA
Volt protection level	3.8KV
Max continuous operation volt Uc	***0V
Poles	3P
structure characteristic	plug push module
system
Protection grade	IP*5
Output switch	DC circuit breaker/DC isolation switch(optional)
MC4 connector	standard
PV DC fuse	standard
PV surge protector	standard
Monitoring module	Optional
preventing diode	Optional
Box material	metal
Installation method	wall mounting type
Operating temperature	5ºC- 5ºC
Elevation of temperature	2KM
Permissible relative humidity	***5% No condensation
Environment Humidity	0~*9%
Installation: indoors/outdoors (IP*5 electronics)	Yes

DC combiner box bus synthetic DC of *6 PV components to 1 output. Each channel is with a fuse.Output side is equipped with lighting protection and circuit breaker.It greatly simplify wiring of DC power distribution cabinet and inverter.Realize lighting protection,short circuit protection and grounding protection.PV combiner box divided into two type:intelligent box and Non intelligent lighting protection status,detect circuit breaker status and summarize output voltage and so on. Design and configuration strictly accordance with the "Technical specification for photovoltaic junction
equipment"CGC/GF **7:***4. Provide users with a safe,brief,beautiful and applicable photovoltaic system products. The product adopts outdoor wall mounted type,which adapt to the harsh environment.In addition to the core components,the other can be customized by user requirements.
