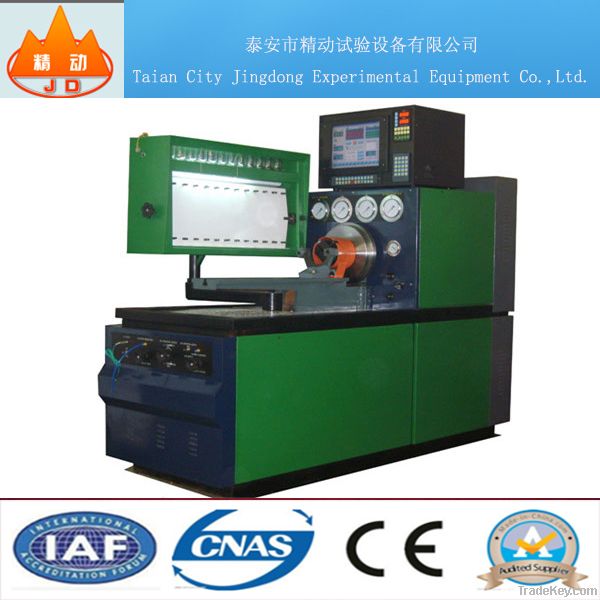

12PSB 12PSB JD-II diesel fuel injection pump test bench

Product Description

Characteristics
This series test bench adopt high quality frequency conversing device. speed canbe preset.*5’ true color LCD display. Installed industrial embedded computer
motherboard. Computer and digital meter display. Super-large digital tube display RPM, count, two sides , convenient operation.computer and digital meter display RPM, oil temperature, advance angle,gears.
Functions
1.Measurement of each cylinder’s delivery at various rotation speeds
2.Checking of each cylinder’s injection time with static state
3.Check of speed governors
4.Checking of the electric magnetic valve of distributor pumps
5.Checking performance of the pneumatic speed governors
6.Checking of the pressure compensators
7.Measurement of the reflux delivery of distributor pumps
8.Measurement of the internal pressure of the distributor pumps body
9.Gas membrane governor negative pressure performance
*0.Checking of the sealing of fuel injection pump body.
parameters

1.Operation position: computer and manual device
2.Cylinder:*5cc (two sets)
3.Volume of oil tank:*0L
4.Temperature automatic control:*0+/*2ºC
5.Test oil filtering unit:5µ
6.DC supply:*2v/*4v
7.Digital display: rotation speed, count, fuel quantity, advanced angle
8.Machinery meter display: high-low fuel pressure, VE internal pressure, +/- air pressure
9.Fuel supply pressure: low **0.6mpa, high **6mpa
*0.VE1 pressure:**0.*6mpa, VE2 pressure :**1.6mpa
*1.Supply air pressure: +pressure **0.3mpa, -pressure **0.*4mpa
*2.RPM preset: *0 gears,*****0rpm
*3.Power: **0v/*0hz(on request)
*4.Total size: ***0***0****0mm
*5.Net weight:**0kg
*6.Center height:**5mm
*7.Flywheel inertia’s moment:0.8kg/m²
*8.Output power:7.***5kW
