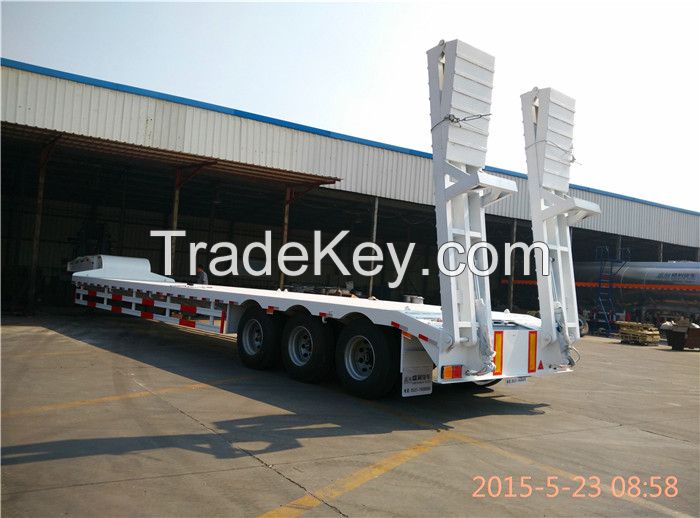

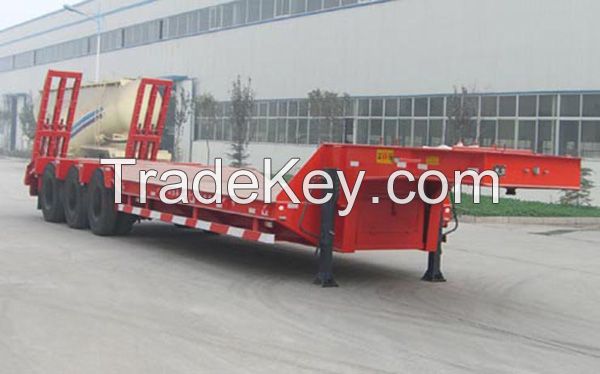

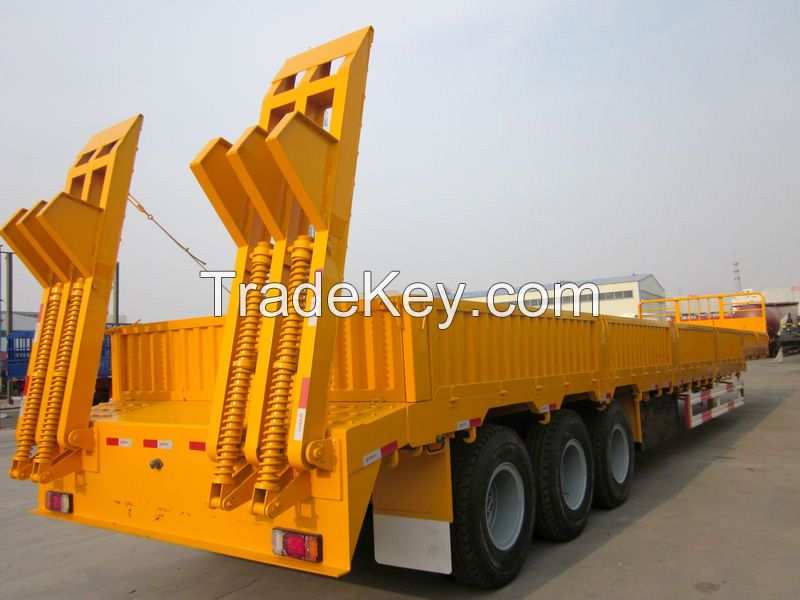

40-60ton 3 axle extendable low bed trailer / low flatbed truck semi trailer / low boy truck semitrailer

Chassis and main parts

DIMENSION

****0mm****0mm****0mm,Size can be design depends on customers request

AXLES

*3 T/PER axle, FUWA /BPW/HJ brands for choose

RIM

8.***0 *3PCS or other sizes

TIRE

*2R*0 *3 PCS or other sizes ,Triangle/Double Coin/Linglong

SUSPENSION

Mechanical suspension or Airbag suspension

LEAF SPRING

*0(W)mm**3(Thickness)mm**0 Layer or **0mm**2mm**2 Layer

KINGPIN

JOST brand 2.0 or 3.5inch bolts type

LANDING LEG

JOST brand C**0T or China brand *8Tons (Double speed)

MAIN BEAM

Height: **0mm***0mm, upper plate is *4mm**5mm, middle plate is 8mm**2mm, Double plate design if payload more than *0tons

down plate is *6mm**5mm ; Material is Q**5B standard steel .

SIDE BEAM

*6mm **5mm channel steel (Material is Q**5B standard steel ).

PLATFORM

Standard 3 mm*6mm thickness checkered plate

BRAKING SYSTEM

WABCO brand emergency valve, T*0/*0+T*0 Spring brake chamber, one piece of *5L air tank , ABS is optional

GOOSENECK

Heavy duty type

RAMP

Manual or Hydraulic type

ELECTRIC SYSTEM

Voltage is *4V / 7 ways (7 wire harness) / LED light

TOOL BOX

One piece ,equipped with 1 unit Tire spanner,1 piece sleeve and 1 piece cranking bar)

PAINTING

Complete Chassis sand blasting to clean rust, 1 coat of anti corrosive prime, 2 coats of final paint

OTHERS

Design and make the right trailer depends on customers request
