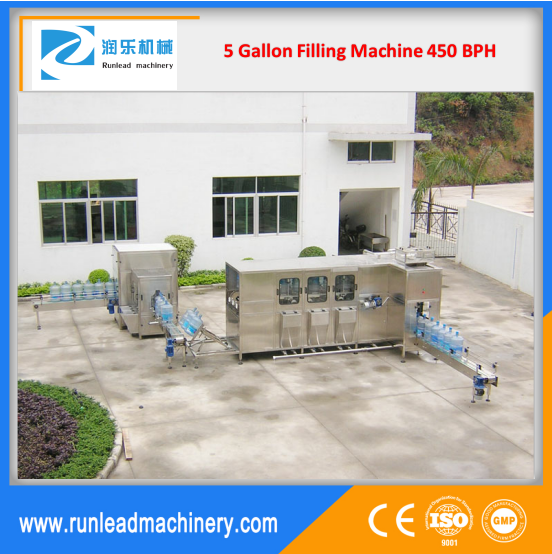

5 gallon water filling machine

Product Description

1. Automatic De-capper
BG series full-auto lid pull off machine is a special equipment design for put off of 5 gallon machine. It can insure the lid don’t broken and can reused. The machine is control by computer, so the capacity can adjust, outfit of lid put off can adjust by air tank, it solve the problem about different high of barrel and wide of barrel mouth , improve the success rate of  pull out lid.
technological parameter：
head of pull out lid:1piece
Dimension: Φ**6×**0×Φ*6
Capacity of pull out lid :3*0b/h
air source:press0.6—0.8Mpa 、air consumption**0L/m
weight：about *0Kg



2. Automatic External brush machine
The machine is before equipment of washing of barrel filling production line. It consists of transmission machine, brusher, water pump. Setting following function: main brusher, bottom brusher, side brusher and so on. Exterior brushing and spurt with water, rotate brush can carry out cleaning the outside barrel, washing quality is stable.
technological parameter：
total power：2.5KW
suitable shape of barrel：Φ**0×**0×Φ*6
capacity of washing：*50b/h
weight：about  **0kg

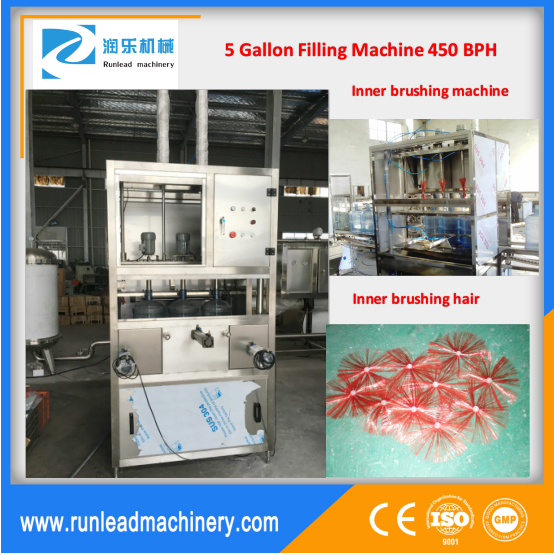

3.Automaticinsidebrush machine
The machine is before equipment of washing of barrel filling production line. It consist of transmission machine, brusher, water pump, setting 4 brushing working place, spurt interior and exterior with water, rotate washing to carry out empty barrel’s whole part was washed, the washing quality is stable.
Technological parameter:
total power：1.4KW
suitable shape of barrel：Φ**0×**0×Φ*6
capacity of washing：*50b/h
weight：about**0kg

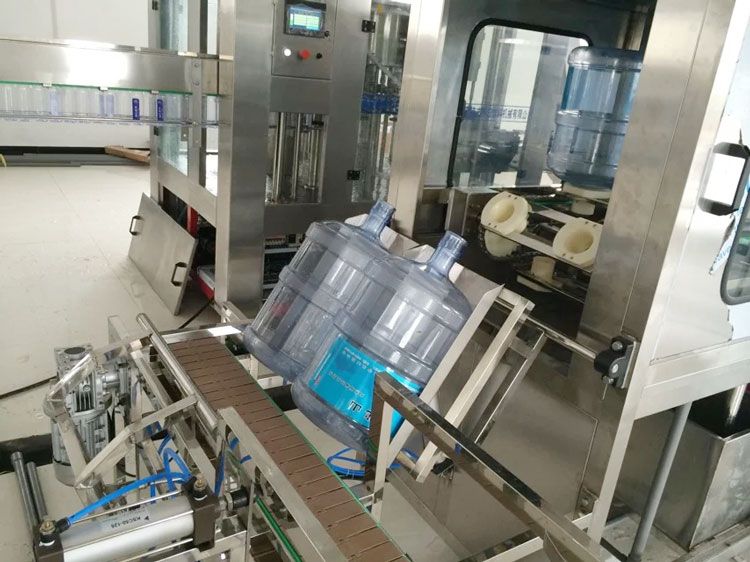

4.Automatic barrel loader

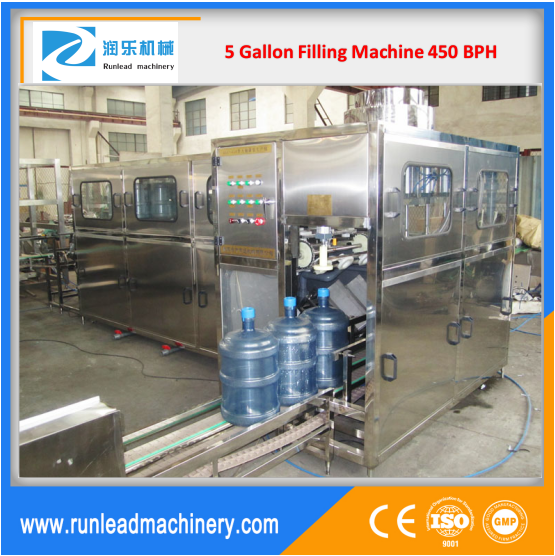

3.Rising, filling and capping machine (QGF-*50)
QGF-3*0 barrel filling machine is mainframe for produce 5 gallon barreled water. It consist of frame, water tank, pipeline, water pump, air tank, transmission machine, electric machine, can finish empty barrel washing , filling , capping through several washing , fit quantify  filling and auto wear lid and capping. The whole working process was control by PLC, realize stability washing effect, accurate filling capacity and perfect capping effect.
Technological parameter:
Model :QGF**0
Mainframe working place：four row and ten barrel seats
Washing: move up and down，enter barrel mouth **0mm
Volume:  *8.9L
Suitable shape of barrel:Φ**0×**0×Φ*6
The number of filling head：1set
The number of capping head：1set
Capacity:3*0b/h
Total power : 4.*9KW、(washing pump 4sets、filling pump 2sets)
Press of air source：0.4**0.6Mpa、consumption of air：**0L/m
Gas consumption : 0.6m3/min
Rated Voltage: **0V/*0HZ
Consumption of water：consumption of water 2T/H、（disinfection water reuse，water reuse one time，filing water：*5T/H
weight：abut *1*0kg







Control Box



5.Light checker
DJinspection light use for lighting when inspect whether exist sundries in barrel.
Technological parameter:
Mian power：0.*5KW
Suitable of barrels：Φ**6×**0×Φ*6
Out put：3*0b/h
Dimension ：***0×**0×**0
Weight：about *0kg



6. Shrink tunnel
ZSM heat contracting machine is consist of water vessel and electric heat up, electric heat up to produce steam, when the barrels with plastic cover through inspected by inspection light pass steam channel, heat contracting machine exam there are barrels, then open electromagnetism valve to release high pressure steam to made plastic cover shrink to molding.
Technological parameter:
voltage：**0V
total power：4KW
capacity：3*0b/h
weight：*0kg
