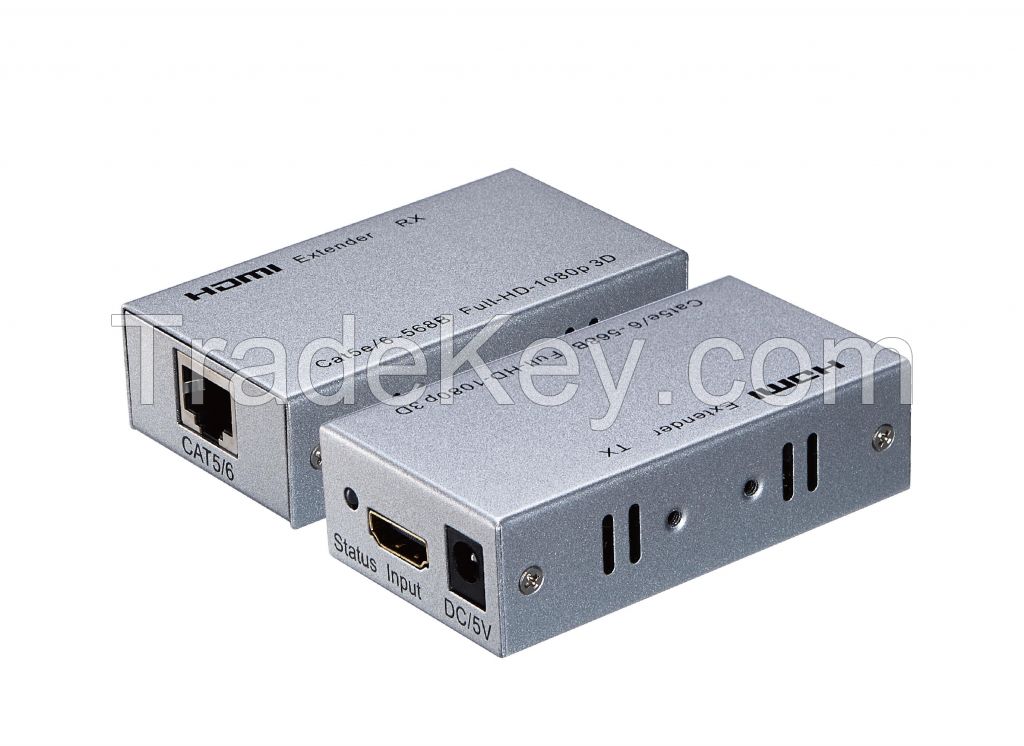

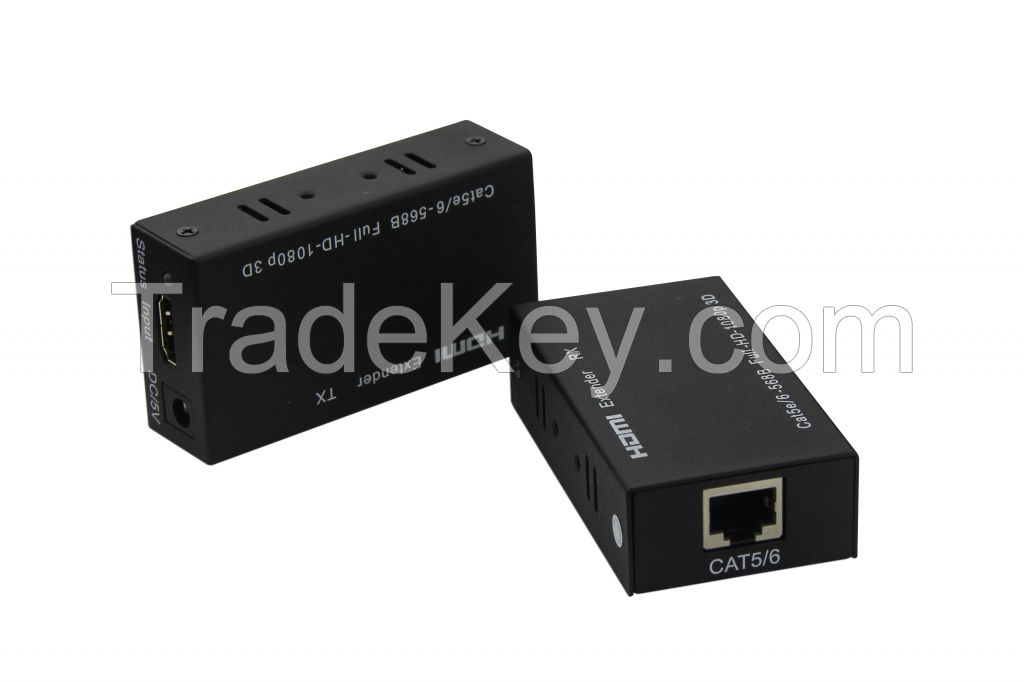

60m HDMI Extender

Product Description

FEATURESSupport HDMI 1.4aSupport 3DSupport highest video resolution ***0p/*0HzSupport 1.*5Gbps data rate and tmds clock up to **5MHz Support 8/*0/*2 bit deep color Support AWG*6 HDMI standard cable, up to *5 metres, output up to *0 metres Signal transmission: By using single cat*5e or cat*6(recommended) cable instead of HDMI cable, it can extend the distance up to *0 meters between TX and RX.                              No loss of qualityInstall in minutesNeed DC5V/1A power supplyOperating and Connecting:
Connect one HDMI cable between source device and TX Extender, the max cable distance is *5 metersConnect one HDMI cable between display device and RX Extender, the max cable distance is *0 meters Connect single cat*5e or cat*6(recommended) cables instead of HDMI cables between TX and RX Extender, the max cable distance is *0 meters Connect 5V power supply to the TX and RX.LED indicator lightTX LED indicator light: When there is no signal , it turns blue; When there is signal , it turns red.

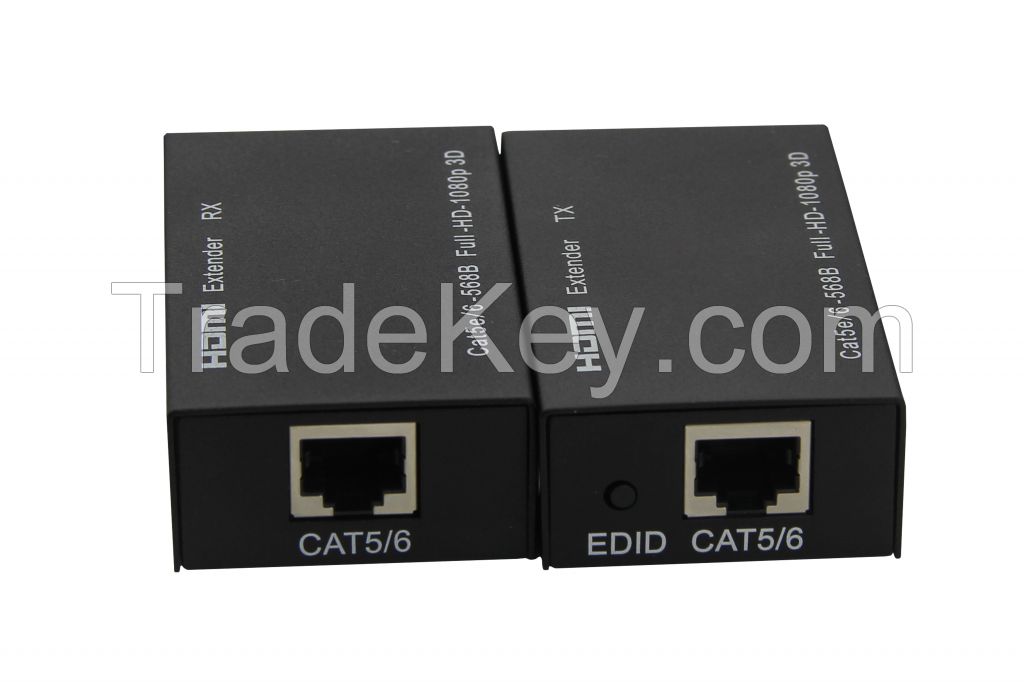

RX LED indicator light: When there is no signal , it turns blue; When there is signal , it turns red.EDID : The can support the switch of EDID between 2D and 3D.(3D is the default EDID when the power is on).
SPECIFICATIONS:
Length of CAT*6/CAT*5E cable between Rx and TX....................Up to *0 meters
HDMI Input.................*4/*0/*0fs/***0p/***0i/**0p/**6p/**6i/**0p/**0i
Support audio .................................DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
HDMI Output.............*4/*0/*0fs/***0p/***0i/**0p/**6p/**6i/**0p/**0i
Support audio output....... ..........DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth..........................................**5MHz
Max baud rate...........................................1.*5Gbps
Input video signal ..................................... 0.5~1.5Volts p-p
Output DDC signal .................................... 5Volts p-p (TT1L)
Input HDMI cable distance...........................≤*5m AWG*6 HDMI standard cable
Output HDMI cable distance............................................ ≤*0m AWG*6 HDMI standard cable
TX Max working current...........................................**0mA
RX Max working current..........................................**0mA
Power adapter format.........Input:AC (*0HZ, *0HZ) **0V***0V; Output: DC5V/1A
Operating Temperature range....................... (**5 to **5ºC)
Operating Humidity range............5 to *0%RH (No Condensation)
Dimension (L x W x H) .......................*1x*3x*2 (mm)
TX Weight.............**0g
RX Weight.............**0g
The Package includes:

1. TX Extender :1pc   RX Extender:1 pc

2. 5V DC Power adapter

3. User Manual
