Product Introduction
Specifications:
1.Technical:Cold bending
2.Electric:Schneider
3.System:MITSUBISHI
4.Hydraulic Parts:Yu ken Japan

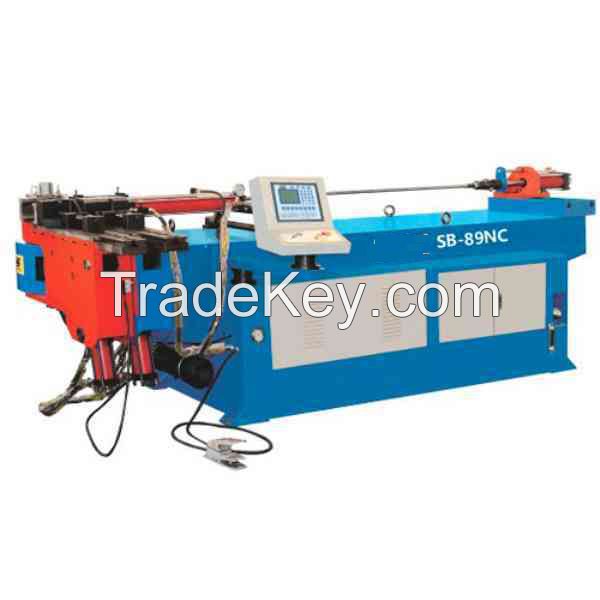

5.Tube Bending Machine
Main Features:
Body by welding; mechanical parts through assembly; imported
hydraulic system and electronic control system. tube bending
machine
1.Uses the microcomputer control, automatic bending
2. Safety: the emergency stop on the bending arm
3. Dialogue operation, easy to study and understand
4. High pipe-bending precision up to ±0.15°
5. 1000 groups pipe-bending information storage, all angles work
forms a coherent whole.
6. The mandrel automatically in and out, saving much time
7. Suitable for bending steel pipe, stainless steel pipe, copper
pipe, aluminum pipe, etc.
8. Can install auxiliary push die, low returning-core function, can
bend thin pipes9. Special fitting: special mold, anti-wrinkle
board, auxiliary push installation, etc.
Main Parameter
| Specification/Model | Unit | DW89NC |
| Max bending diameter× wall thick | mm | Φ89×4 |
| Max bending radius | mm | 450 |
| Min bending radius | mm | 89 |
| Max bending angle | Degree | 190 |
| Bending speed | °/s | 30 |
| Bend accuracy | ° | ±0.1 |
| Max mandrel distance | mm | 3000(can be extended) |
| Bending number of tube elbow | Unit | 15 |
| Number of bending program | Unit | 1000 |
| Oil motor power | KW | 15 |
| Max hydraulic pressure | Mpa | 14Mpa |
| Size | mm | 3150*1200*1150 |
| Weight | Kg | 2000KG |
| Bend method | doubel oil cylinder and chain | |
| Cooling system | water |
