Description:
JRXE***0 -A4 Copy Paper Cutting /Sheeting Machine makes up a blank
in China market. It is the best choose among the manufactures who
produce medium or high level products. This machine is suitable for
cutting the large coil packaging material(such as Gloss photo
paper, digital photo paper, ordinary paper, coated paper, board
paper, Gold or Silver cardboard, holographic paper, cigarettes
& wines packing and printing material. Etc), paper &
plastic complex material and fiber material,
etc.
Feature:
This machine adopts the servo motor to control the fixed-length
cutting, feeding. It is equipped with the photoelectric,

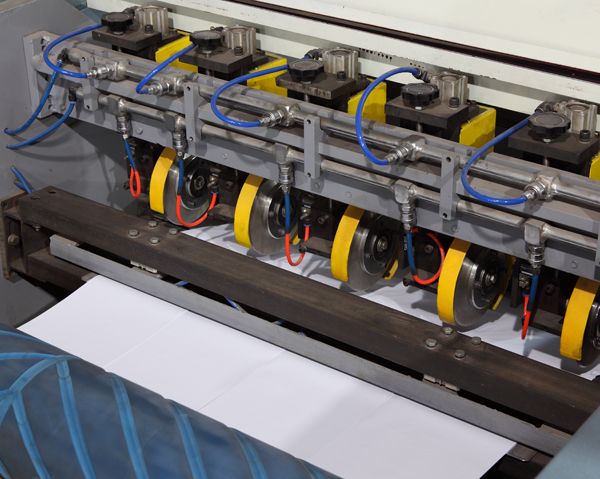

Correction, tracing modifying system. It can do crosscutting and
Vertical cutting at the same time. And it can trace feeding
institution with the products, blowing& absorbing
transportation at same time, automatic collecting, Robert automatic
folding materials and cross transport to
worktable.
Drive System use pneumatic system, Photoelectric sensor to control,
folding materials system use air and oil pressure to improve
equipment...This machine integrates photoelectric, liquid and gas
as a whole, PLC touching screen, and has the features of easy
operation, high-precision cutting, state operation and low
noise.
The machine has the fenture of the motor frequency speed
adjustment, automation counting, giving an alarm when stop and
tension with digital indication.
All transitional rollers can be done in client's opinions to avoid
surface injure.
This machine is very important to Scratch of Gloss photo
paper.
We designed the air compress transport system
Main Parameters:
| Cutting Size | A4(**0***7) | |
| Size Precision | ±0.2MM | |
| The accuracy | ±0.2MM | |
| Trimness (*****0pcs) | Width | ±0.*5MM |
| Length | ±0.2MM(fixed-length) | |
| maximum Width of raw materials | ***0MM | |
| maximum diameter of raw materials | ***0MM(Max.weight:1.2ton) | |
| Speed | *0pcs/min | |
| Max.Stack Height | ****0MM | |
| Paper tube core Inner Dia. | 3"=*6.2MM | |
| source of air pressure | 0.**0.6Mpa | |
| Work Voltage | **0V | |
| Total Power | *3kw(Except air pressure power:*1kw,1.6m 2 ) | |
| Weight | 3.5ton | |
| Cutter Timing Belt | ***0**5*8M=1:1 | |
| Main Cutter Motor Belt | A Model **4 =2pcs | |
| Servo Motor Synchronous Belt | ***0**5*8M =1pcs | |
| Circular knife Synchronous Belt | **0**0*8M =1pcs | |
| Backup Roll Motor Belt | A Model ***0=2pcs **0=2pcs | |
|
Reducing motor A Model Belt |
Transporting Belt ***0=2pcs Transporting Belt **7=2pcs Transporting Belt **4=2pcs |
|
| Robot Synchronous Belt | ***4**0*8M=2pcs | |
| Synchronous Machine Synchronous Belt | **9**0*8M | |
|
Conveyer Belt (L*W*H) |
***0**0*3=*2pcs ***0***0*3=1pcs ***0***0*3=1pcs |
|
