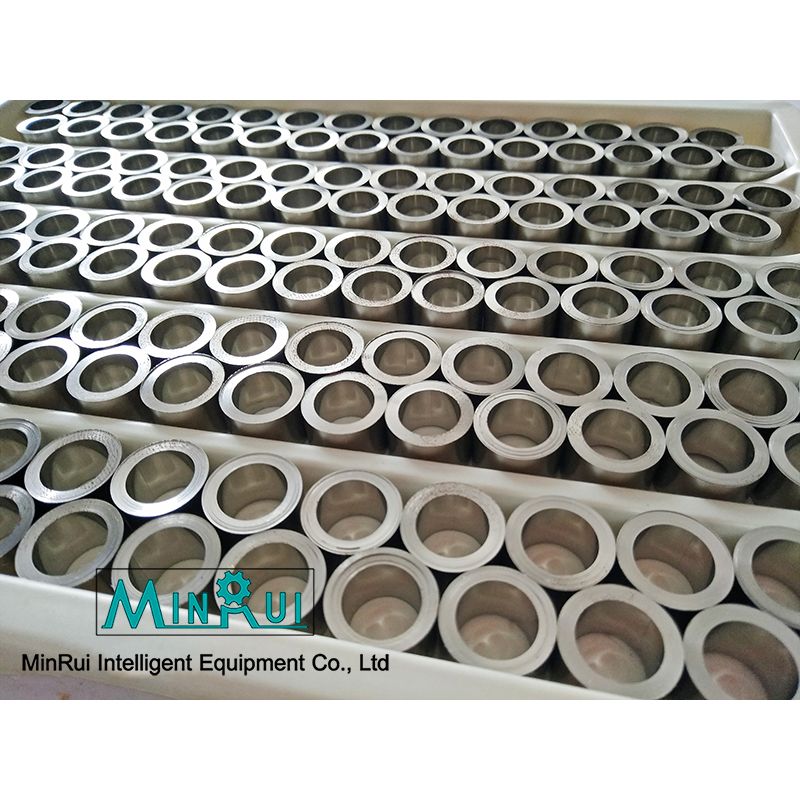

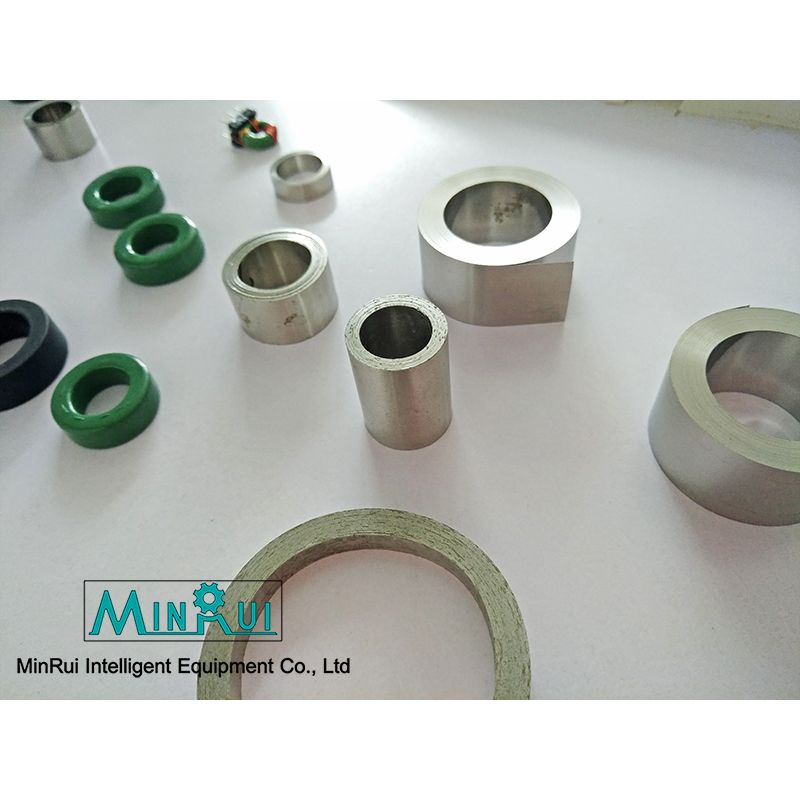

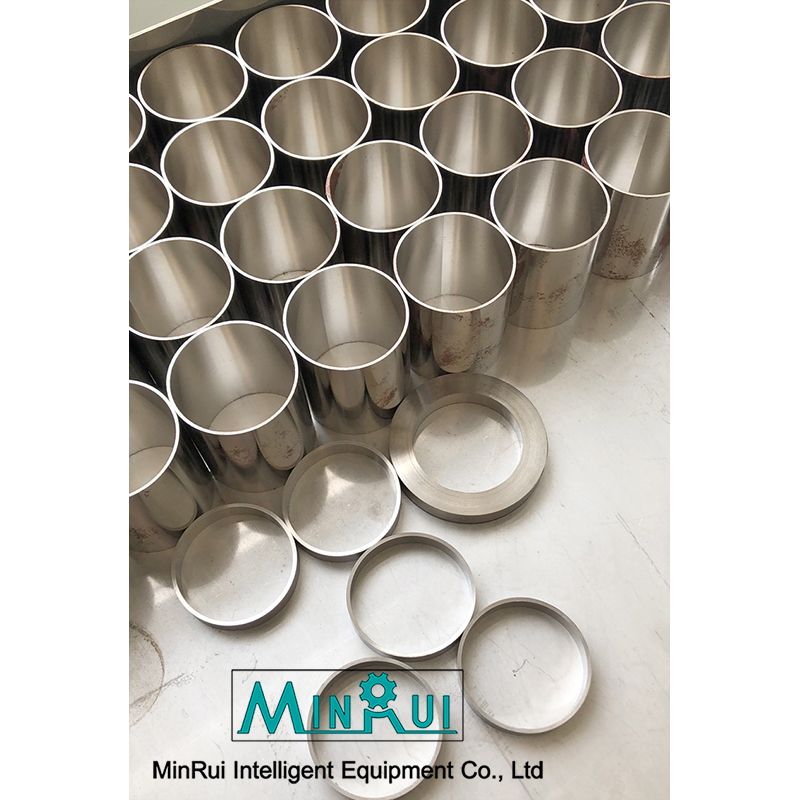

amorphous transformer core winding machine

Product Description

Main characteristics of amorphous core winding machine

1. The winding machine is made of unidirectional winding, automatic cutting and automatic welding,

2. The continuous feeding of the winding machine adopts constant tension control to ensure the product tightness, size consistency and adjustable tension.

3. The feeding trough of this machine guides and corrects the feeding. Easy adjustment, wide width range

4. The unique design of the cutter is made of special steel, which will not cut cracks. It is durable and maintenance free for life

5. Good consistency of welding machine, adjustable current, suitable for welding of various materials, good stability

6. The mechanical winding adopts Siemens Servo motor to drive the winding needle through the synchronous belt, which is more accurate, reliable and fast than that of the traditional mechanism driven by the auxiliary structure such as motor, so as to ensure that the size and number of turns of amorphous tape are consistent, and the quality is effectively improved.

7. This machine adopts photoelectric control, so that the positioning is accurate, the operation is more stable and reliable, the winding productivity of the machine is improved, and the failure rate is reduced.




Technical parameters:

Inner diameter of iron core: ***5mm

Outer diameter of iron core: ***0mm

Core height: ***5mm

Power supply: AC**0 V, *0 Hz

Power: 1.2kW

Note: those not in the above scope can be customized according to customer requirements.
