Product Description
Executive Standard
GB*********6 Design code for
strengthening concrete structure
Description:
The instrument is suitable for
testing the anchorage force of various of anchor shank, rebar and
expansion bolts, also for testing the pull force of glass block
screen wall.
Features:
Capability: **0kN/ ***0kN
Digital pressure meter feature is
liquid crystal display, direct force reading, peak holding, data
storage, curvature correction, automatic shutdown
Double action, hydraulic oil
cylinder retraction
Double speed manual hydraulic
pump
Can change with handheld meter,
high precision

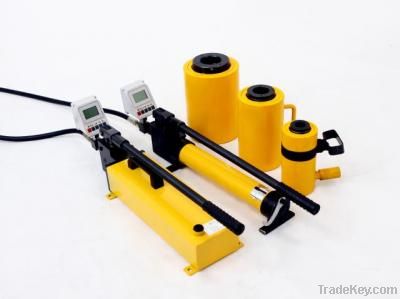

Configuration:
1. Manual hydraulic oil pump
2. Hydraulic oil cylinder
3. Digital pressure gauge
4. High-pressure hose
5. Anchorage, connector
Technical
parameters:
ZY**0
technical parameters:
1. Manual pump:
Pressure: *3MPa
Weight: *1.5kg
Packing case weight: 6.5 kg
2. Oil cylinder:
Capability: **0KN
Tension stroke: **7mm
Weight: *0kg
Central hole: *6mm
3. Digital pressure gauge:
Measurement range: ****0KN
Power supply: 2pcs No.5
battery
Weight: 0.*4kg
ZY***0
technical parameters:
1. Manual pump:
Pressure: *3MPa
Weight: *1.5kg
Packing case weight: 6.5kg
2. Oil cylinder:
Capability: ***0KN
Tension stroke: **0mm
Weight: *4kg
Central hole: *4mm
3. Digital pressure gauge:
Measurement range: *****0KN
Power supply: 2pcs No.5
battery
Weight: 0.*4kg
Anchorage
specifications:
φ6, φ8, φ*0, φ*2, φ*4, φ*6, φ*8,
φ*0, φ*2, φ*5, φ*8, φ*2, φ*6, φ*8, φ*0
Connector specifications:
ZY**0: M6, M8, M*0, M*2, M*4, M*6,
M*8, M*0, M*2, M*4, M*7, M*2, M*0
| Country: |
China |
| Model No: |
NJZY-50/100
|
| FOB Price: |
( Negotiable ) (Negotiable)
Get Latest Price
|
| Place of Origin: |
CN |
| Price for Minimum Order: |
- |
| Minimum Order Quantity: |
1 Set |
| Packaging Detail: |
42KG |
| Delivery Time: |
8days |
| Supplying Ability: |
100 Set per Day |
| Payment Type: |
T/T |
| Product Group : |
Construction NDT equipment
|
