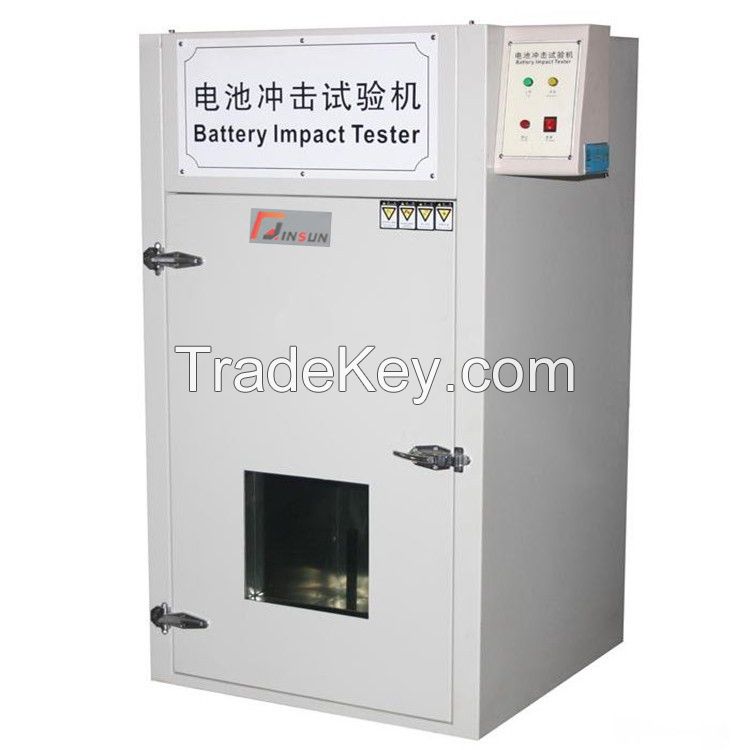

Battery impact tester

FOB Price

Get Latest Price

( Negotiable )

1 Piece Minimum Order

Country:

China

Model No:

FOB Price:

( Negotiable )(Negotiable) Get Latest Price

Place of Origin:

Price for Minimum Order:

Minimum Order Quantity:

1 Piece

Packaging Detail:

Delivery Time:

Supplying Ability:

Payment Type:

T/T, L/C, D/A, D/P, Western Union, Money Gram, PayPal, Other

Product Group :

Instrument

Contact Now

上海千实精密机电科技有限公司

China

Free Member

Contact Person Zhao

Shanghai, Shanghai

Contact Now

Product Specification

Brand Name: QinSUn

Product Description

Standards:

　　GBIT*********5 "Safety requirements and test methods of power Batteries for Electric Vehicles" 　　GB/T*********2 "Safety requirements for lithium-ion batteries and battery packs for portable electronic products. 　　UN**3 United Nations Manual of Tests and Standards for the Transport of Dangerous Goods 　　IEC****3 "Safety requirements for batteries （groups） composed of cells and for use in portable equipment" 　　UL********2 "Inner Battery Standard"

Applications:

Product Information:

Product introduction

　　The test sample cell is placed on a flat surface with a *5.8±0.2mm（5/8 in）

diameter rod placed in a cross position over the center of the sample. A 9.1kg or

*0kg weight is dropped from a certain height （**0mm or ***0mm） onto the

sample. cylinder

　　When the battery is subjected to impact test, its vertical axis should be parallel

to the plane and perpendicular to the vertical axis of the steel column. The most

axis of the square battery is perpendicular to the steel column, and the largest surface

is perpendicular to the impact direction. Each battery receives only one impact test.

The battery does not catch fire or explode.

Main parameter

　　Inner box size :**0x**0x***0mm（W x D x H）

　　Equipment dimensions :**0x**0x***0mm（W x D x H）

　　Material :SUS**1 stainless steel plate, thickness 1.2mm and coated with Teflon

　　Outer box material: 1.5mm thick cold rolled steel plate paint treatment

　　Observation window: **0x**0mm tempered glass, transparent window with

stainless steel mesh.

　　Lighting device: The machine is equipped with a light inside to facilitate the

observation of the state of the tested sample.

　　Smoke outlet: **0mm in diameter, located at the rear of the box.

　　Pressure relief port: The opening size is **0x**0mm, located at the back of the

box. When the sample is exploded, the pressure relief port will pop open and remove

the pressure.

　　Door: single door open left, door equipped with safety limit switch, side equipped

with explosion-proof chain to ensure the safety of personnel.

　　Ball weight: 9.1kg, *0kg, 0.1kg

　　Impact height :*****0mm, commonly used test height **0 —— *5mm

　　Control mode: touch screen control

　　Displacement accuracy: 5mm soil

　　Impact mode: lift the falling ball to a certain height and release it. The falling

ball falls freely in the vertical direction without tilting or shaking.

　　Metal rod: Diameter *5.8±0.2mm steel rod

　　Maximum battery size :**0x**0x**0mm

　　Impact surface :*5# steel paint treatment, thickness *5mm

　　Equipment weight :**0kg

　　Power supply :AC**0V

　　Power :**0W
