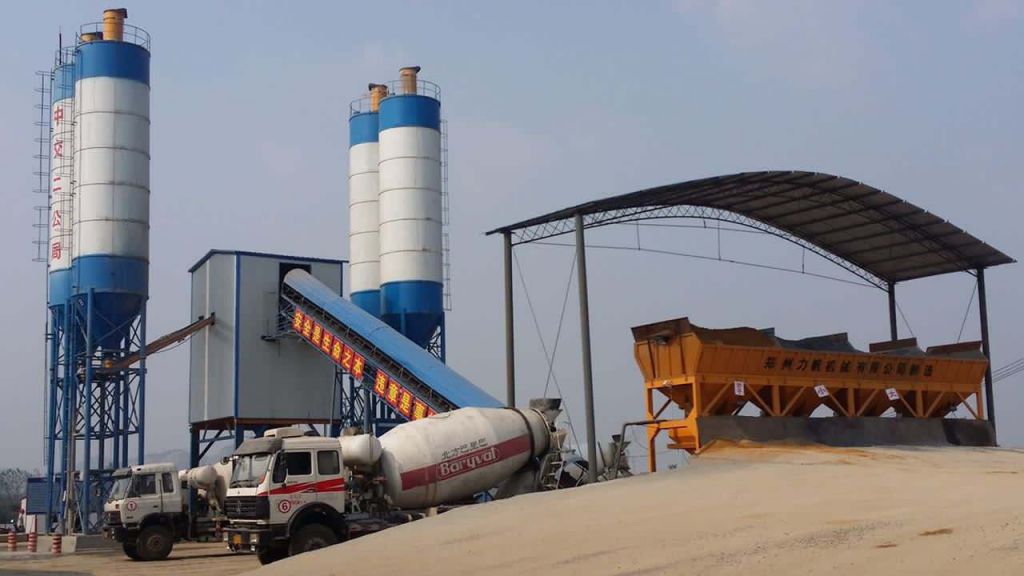

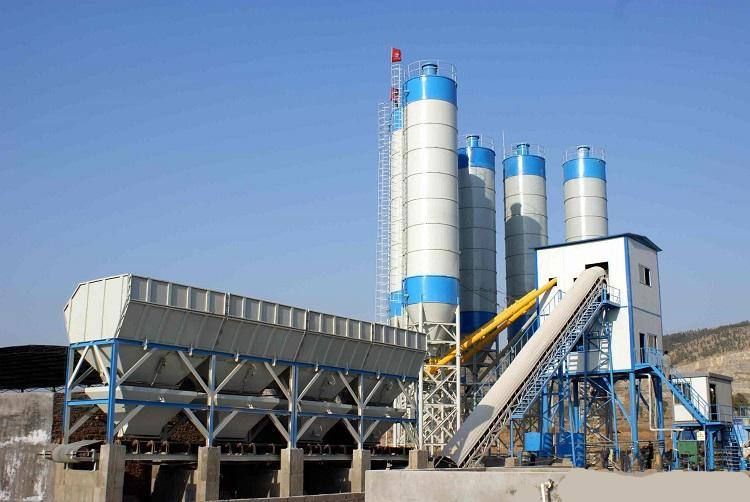

Belt Conveyor concrete mixing plant for mixing concrete

Product Description

Stationary Concrete Mixing Plants.

一.Description of  Belt Converyor Concrete Mixing Plant:

HZS series of Concrete Batching Plants is developed by our company on the basis of adopting the world's sophisticated technologies, this concrete mixing plant have been widely used in the domestic and overboard,  as well as earned a perfect reputations in the construction field, we have dedicated in manufacturing concrete mixing plant for many years.

二.Features of   Belt Converyor Concrete Mixing Plant:

1. Driving system adopts planetary gear, the gimbals transmission shaft insures circumgyrate at the same speed

2. With its modularization structure, it is easy to transport, install and debug more quickly.

3. Mixing system choose the spiral mixing system , which has high efficiency , scale board and mixing blades adopts high-rigidity and high tenacity wearable case alloy steel, to prolong the working life.

4. Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.

5. Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying, this system is equipped with overvoltage warning and low oil level warning, safe and reliable

6. PC+PLC control system ensures the high reliability.

7. With its virtue of precise computation, it can meet the requirement of every high performance concrete.

8. Human-based intelligent control facilitates the operation greatly.

9. Structural members are durable, and most electric elements adopt world famous brands.

三.Main Parameters of Belt Conveyor Concrete Batching Plants:

Model HZS*0 HZS*0 HZS**0 HZS**0

Capacity *0m3/h *0m3/h **0m3/h **0m3/h

Mixing system Twin shaft concrete mixer

Aggregate feeder Belt conveyor

Discharging height ***0mm ***0mm ***0mm ***0mm

After-sale service Erection & commissioning, operator training

Warranty *2 months after erection

Concrete mixer JS***0 JS***0 JS***0 JS***0

Discharging volume ***0L ***0L ***0L ***0L

Charging volume  ***0L ***0L ***0L ***0L

Mixing circle *2s

Max. mixing size *0/*0mm

Aggregate batching machine PLD***0 PLD***0 PLD***0 PLD***0

Storage bins quantity 2 or 3 or 4 sorts 3 or 4 sorts 3 or 4 sorts 3 or 4 sorts

Aggregate scale hopper ***0L ***0L ***0L ***0L

Weighing system Water, Cement, Additive

Weighing precision        ±1%

Air system Air compressor, etc

Control system type Computer auto-control module (PLC can be optional item)
