Box Column Drilling Gantry

Product Description

                Box Column Drilling Gantry Machine
                           Model No. BDG****0

Features & Advantages

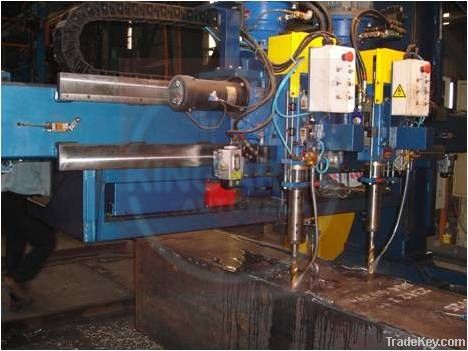

    Box column drilling gantry machine is composed of a drilling head, an elevation column, a work table, and an electric control system.
    The maximum work piece drilling size is ***0mm and the minimum is **0mm.  It is easy to operate and adjust. This machine is a necessary equipment for profile structural steel professional manufacturers.

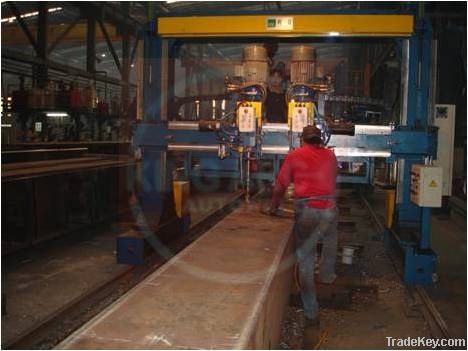

    The gantry is a motorized structure that travels on rails and is equipped with all necessary equipment for operation.
    Laser cross can drill precision and easy to operate

Work Capability
1.    Flange Width ***0MM
2.    Web HeightL ***0MM
3.    Length: ****0MM
4.    Max thickness of plate: **0mm
5.    Diameter of bits: ****8mm
6.    Drilling spindle: 2 set
7.    Speed of drilling spindle: ******0 rpm
8.    The stroke of spindle: **0mm
9.    Drilling spindle motor: AC 7.5 hp
*0.    Travel speed of gantry: ***0mm
*1.    Weight: ***0 kgs
*2.    Laser cross :2 set

Optional Equipments
1.    Front Conveyor
2.    Rear Conveyor





Main component part list
Item    specifacation    brand    country
1.    Drilling head        Taiwan
2.    Hydraulic pump    Teco    Taiwan
3.    Motor/gear box    Teco    Taiwan
4.    Inverter    Mitsubishi    Japan
5.    PLC    Mitsubishi    Japan
6.    Electric component    Fuji/Teco/    Taiwan/Japan/Euro/USA
7.    Hydraulic valve    Yukan    Japan/Taiwan
8.    Bearing    NKK    Japan/Taiwan
9.    Cable    Taitong     Taiwan
