FOB Price
Get Latest Price10 ~ 15 USD / Set ( Negotiable )
|1 Set Minimum Order
Country:
China
Model No:
SD-1V4S
FOB Price:
10 ~ 15 USD / Set ( Negotiable ) Get Latest Price
Place of Origin:
-
Price for Minimum Order:
10 per Set
Minimum Order Quantity:
1 Set
Packaging Detail:
1set/box, carton box without factory name
Delivery Time:
Sample Order within 1workday
Supplying Ability:
2000 Set per Month
Payment Type:
Western Union
Product Group :
Contact Person Leo
Beijing, Beijing
1. Products function description

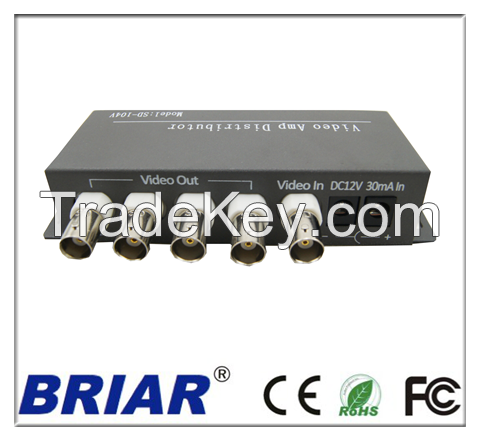

1 In 4 Out ultrathin video distributor ultrathin,high isolation,low power, stable and reliable, 1 channels video signal,distribute 4 channelsoutput ,Thedevice distribute 1 channels video signal into 4 channels output equably,which have signal amplification function.
1,According to actual situation,the problem that traditional video distributor
transmit short distance to Q9 socket ,is difficult to install and take down is
solved.
2,Be different from video distributors in the market,the volume of the device is small, and convenient to transport.
3,Main components are paster ones,and use Ta capacity,which can promise stable signal indication;
4,the device has low power consumption,and outlay high-tension supply power transfermer,which make weak current and strong current be devided,so that make sure safe use.
2.Installation note
1.Words trembling after install this equipment, then adjust V-L side of the video .
2.clockwise for Strengthening, counterclockwise for decrease, generally strengthen will solve this problem.
3.Equipment for debug free equipment, All adopt SMD technology, when one channel or more channels no image, Check BNC holder whether match head for key point, adjust metal spring interior of the BNC seat.
3. Description:
|
Technology indication |
|
|
Video gain |
1dB |
|
Power supply |
DC*2V / *0MA |
|
Frequency response |
*0 MHz±1dB |
|
Video |
0.**1.4p-p ,*5Ω terminating BNC |
|
Video output |
0.**1.4p-p ,*5Ω terminating BNC |
|
SNR(Signal to Noise Ratio) |
>*0dB |
|
Differential gain |
≤1% |
|
Differential phase |
≤1° |
|
Power consumption |
0.9W |
|
Size |
**0(L) X*5(W) X 4(H)mm |
|
Weight |
**0g |
|
Working Temperature |
**0℃~*5℃ |
|
Working Humidity |
≤*0%RH(Non-condensing) |
4.Notes
1.Payment Term: T/T,L/C,Paypal ,Western Union
2.Delivery time: Samples order within one workday
3.Packing: Neutral box packing and without any factory's information.
4.All of our products have one year quality warranty
5.Beijing Briar Technology Co.,Ltd. have the final explanatory power of specifications.
| Country: | China |
| Model No: | SD-1V4S |
| FOB Price: | 10 ~ 15 / Set ( Negotiable ) Get Latest Price |
| Place of Origin: | - |
| Price for Minimum Order: | 10 per Set |
| Minimum Order Quantity: | 1 Set |
| Packaging Detail: | 1set/box, carton box without factory name |
| Delivery Time: | Sample Order within 1workday |
| Supplying Ability: | 2000 Set per Month |
| Payment Type: | Western Union |
| Product Group : | Video Splitter |
