CCD Spectroradiometer Sphere Compact System

Product Description

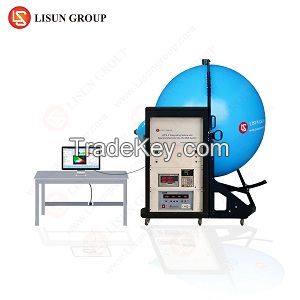

LPCE*3 is a CCD Spectroradiometer Integrating Sphere Compact System for LED Testing. It is suitable for single LED and LED luminaires' photometric, colorimetric and electrical measurement. The measured data meets the requirements of CIE **7, CIE*4,  CIE**3.3, COMMISSION DELEGATED REGULATION (EU) ***9/***5, IES LM*****9, Optical-Engineering***********2, IESNA LM****2, ANSI-C*8.**7 and GB standards

The Sphere System Configuration:
CCD Spectroradiometer (LMS****0), Optical Fiber (CFO*1.5M), Digital Power Meter (LS***8R), DC Power Source (DC-S Series), AC Power Source (LSP***0VAS), Integrating Sphere (IS*1.5MA-CASE and IS*0.3M), Standard Light Source (SLS**0W and SLS**0W)

Measurement:
• Colorimetric: Chromaticity coordinates, CCT, Color Ratio, Peak Wavelength, Half Bandwidth, Dominant Wavelength, Color Purity, CRI (Ra, R1 to R*5), Spectrum Test, TM*0 (Rf, Rg), CQS
• Photometric: Luminous Flux, Luminous Efficiency, Radiant Power, EEI, PAR, PPF
• Electrical: Voltage, Current, Power, Power Factor, Harmonic (Optional)

Specification:
• Spectral Range Wavelength: **0nm~**0nm(LMS***0VIS) (**0~***0nm is optional)
• Spectral Wavelength Accuracy: ±0.5nm  Wavelength Reproducibility: ±0.5nm
• Sample Scanning Steps: ±0.1nm
• Accuracy of Chromaticity Coordinate (Δx, Δy): ±0.**3 (under Standard A Lamp)
• Correlated Color Temperature CCT: 1,**0K~*5,**0K. CCT Accuracy: ±0.5%
• Color Rendering Index Range: 0~**0.0, Accuracy: ± (0.3%rd±0.3)
• Photometric linear: ±0.5%
• Stray light: <0.**5% (**0nm) and <0.*3% (**5nm)
• The system includes the auxiliary lamp device and the software includes self-absorption function
• Connect with PC via USB cable. The English version software can be run in Win7, Win8 and Win*0, Win*1 (The driver was Certificated by Microsoft)
