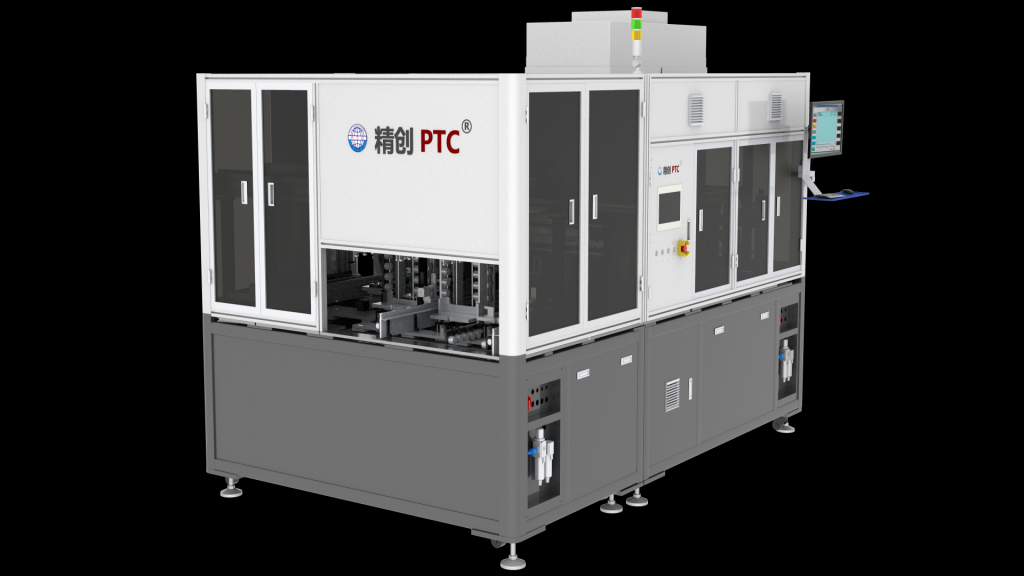

DBC Cosmetic Defect Inspection EquipmentÂ
Automatic optical defect inspection equipment uses a
multi-station optical imaging system to capture the imaging
of the sample boards. Specific algorithm processes the
acquired images to capture the defects.Â
Defects
inspected by the equipment include protrusion, residual
copper, cutting dislocation, poor solder mask, oxidation,
scratches, copper deficiency, bubbles, poor plating and
others.
Â
Â
Automatic optical inspection machine is available to detect various kinds of defects;
Use high-speed line-scan camera and high-precision lens to ensure high detection accuracy and production capacity;
Adopt precision motion platform to ensure the imaging stability;
Designed with multi-station optical detection system to reduce the missing rate;
Re-inspection mode combining online confirmation and workstation confirmation improves the re-judgment efficiency;
The software facilitates data traceability and generates statistical reports.
Â
Â
◇◇ Specifications ◇◇Â
|
Model No. |
DE-DBC |
|
Suitable object |
Copper DBC |
|
Object size |
max **0x**8mm(±2mm) |
|
Object thickness |
**2mm |
|
Max allowed warpness |
1.2mm |
|
CT |
**0pcs/h |
|
Defect confirmation |
AOl online-confirmation+workstation confirmation |
|
Defect types |
protrusion, residual copper, cutting dislocation, poor solder mask, oxidation, scratches, copper deficiency, bubbles, poor plating and others. |
|
Additional function |
laser coding |
|
Overall size |
***0mm(L)x***0mm(W)x***0mm(H) |
|
Over weight |
about ***0KG |
|
Power supply |
single-phase 3 wire AC **0V±*0% |
|
Air supply |
0.**0.7Mpa |
|
Power consumption |
8KW |
Â
