Clay panel curtain wall

Product Description

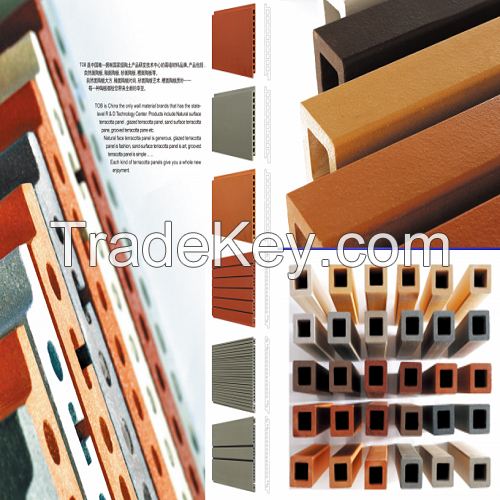

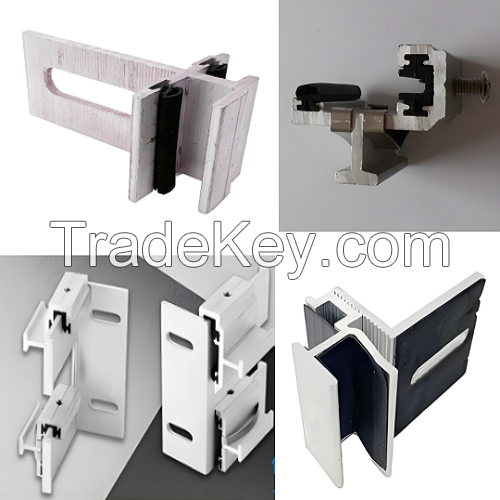

The clay panel curtain wall adopts an *8mm thick open clay panel curtain wall system. The back side adopts aluminum alloy hangers and clay panel hangers to support the panel, which is fixed on the vertical keel of the curtain wall. The columns adopt *0**0*4 hot-dip galvanized square steel pipes.

The main features are:

* The raw material of the clay panel is natural clay, does not contain any other ingredients, and will not cause any pollution to the air. The color is completely the original color of clay, green and environmentally friendly, no radiation, mild color, and will not cause light pollution;

* The clay panel panel adopts a perfect hollow design, which not only reduces the dead weight of the clay panel, but also improves the air permeability, noise reduction and thermal insulation performance of the clay panel;

* The clay panel curtain wall adopts a semi-open installation method, with a vertical gap of 3mm and a horizontal gap of 8mm; the open clay panel is spliced ​​according to the principle of isobaric rain curtain, and has good waterproof function. No glue is needed at the joints to avoid pollution and affect the facade effect.

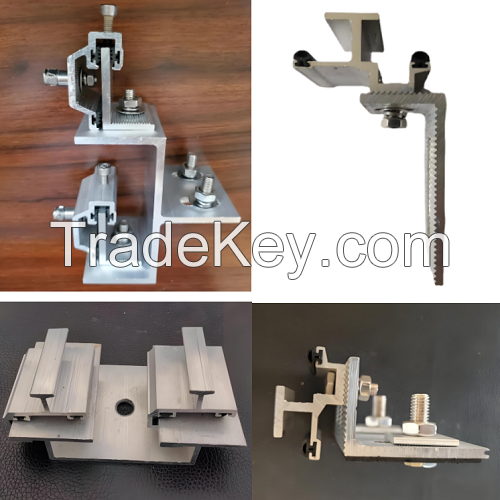

*The installation position of the ceramic panel has a six-way adjustment function, which makes the curtain wall installation more accurate, the curtain wall lines more smooth, and the flatness is excellent;

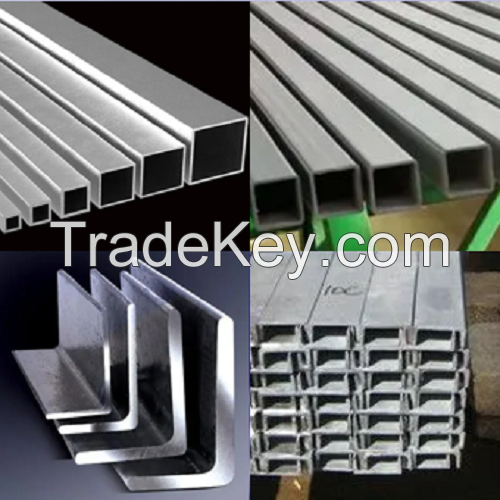

*This system uses steel square tubes as columns, which have strong bending and wind pressure resistance;
