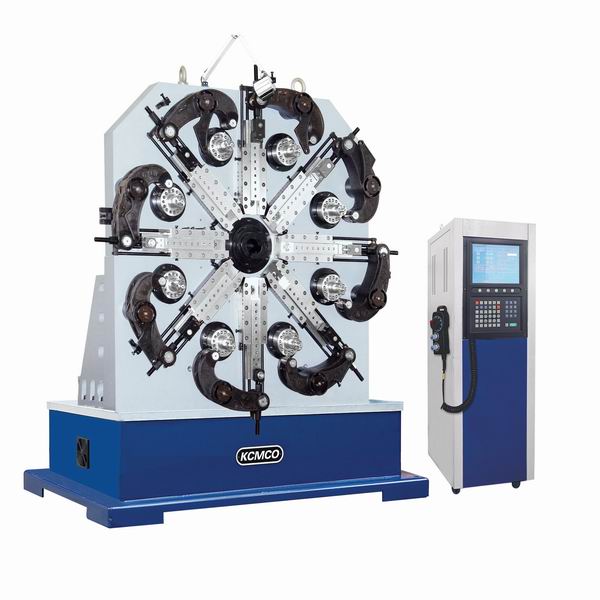

CNC versatile wire coiling machine

Product Description

Features: TCK**5WCNC wire coiling machine combines precision CNC controlled servo-motion system and conveniences of mechanization. It is suitable for various kinds of spring products through a simplified setup and programming procedure. TCK**5WCNC wire coiling machine is equipped with eight slides. We design tools for individual purposes such as bending, coiling, pitching, forming, and cutting. Working spaces and angles are considered very carefully to develop portable tool holders for straight movement or supporting movement from other slides. TCK**5WCNC wire coiling machine is able to produce torsion springs, compression springs, tension / extension springs, taper-spring, wire-forms and other related spring products. TCK**5WCNC wire coiling machine is designed for **6 axis , 4 axis is standard assignment (cam, wire feeding, wire rotary and rotary quill ) 2 servo spinner system are optional upon request. Technical Parameter: Model TCK**5WCNC Axes Number **5(6) Wire size range 3.0～6.5mm Max. Outer Diameter ￠**0mm Max. Feeding length unlimited Feeding setting value ±0.*1～±***9.*9mm Wire feeding speed 0～*5M/Min Cam Setting value ±0.1°～±**9.9° Cam speed *0RPM/Min Wire feeding motor *1.0KW Cam Motor 5.5KW Zaxis Motor 1.5KW Rotating wire motor 3.0KW Spinner motor 3.0KW Power AC **0V *0Hz Dimension(LxWxH) ***0x***0x***0mm Weight ***0kg
