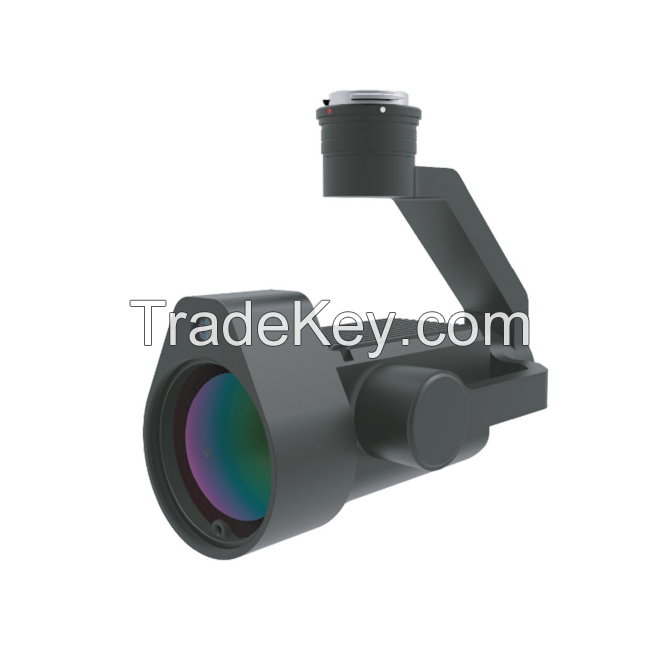

Compatible AiLF U10 UAV Based Laser Methane Combustible Natural Gas Leakage Detector

FOB Price

Get Latest Price

28000 ~ 50000 USD / Unit

1 Unit Minimum Order

Country:

China

Model No:

U10

FOB Price:

28000 ~ 50000 USD / Unit (Negotiable) Get Latest Price

Place of Origin:

Shandong

Price for Minimum Order:

28000 per Unit

Minimum Order Quantity:

1 Unit

Packaging Detail:

Carton Box

Delivery Time:

20-30 days

Supplying Ability:

3000 Unit per Year

Payment Type:

T/T, L/C

Product Group :

UAV Based Laser Methane Leak Detector

Contact Now

View Brochure

AiLF Instruments Co., Ltd

China

Free Member

Contact Person Jason

Beijing, Beijing

Contact Now

Product Specification

Measuring Principle:Laser Absorption Spectrum
Maximum Detection Distance:150m
Concentration Range:0~50,000 ppmÂ·m
Resolution:3ppm.m

Product Description

M**0 Compatible AiLF U*0 UAV Based Laser Methane Combustible Natural Gas Leakage Detector

The U*0 is a lightweight, highsensitivity gas detector based on Tunable Diode Laser Absorption Spectroscopy (TDLAS), which enables rapid identification of methane from up to **0 m away, or at a concentration as low as 5ppm.m. Powered by DJI SkyPort, the U*0 can be seamlessly integrated with DJI Matrice **0 Series and Matrice **0 RTK

Up to **0m

The advanced AiLF laser telemetry technology enables U series to have a response time of 0.**5s and a very low static detection limit, capable of effectively detecting gas leaks at the height of over a hundred meters.

Light Weight

The extremely lightweight design, meets the requirements of the "Interim Regulations on the Flight Management of UAV" with the carrier drone, and can perform tasks in airspace below **0m without application of flight.

Highly- Automated

It supports two automatic inspection modes of area scanning and route inspection, and can import KML files to GIS routes to generate inspection tasks. On-site selection allows for leak scanning in villages or stations.

Highly - Open

It supports exporting inspection reports and event records through the app, and the SD card is used to store inspection videos and logs. System integration services are provided to transmit inspection data and on-site videos to customer's information platform.

Model	U*0	Detection Subject	Methane (CH4)
Measuring Principle	Laser Absorption Spectrum	Detection Laser Class	Class I Eye Safe
Resolution	3 ppm · m	Indication Laser Class	Class IIIR No direct sight or instrument observation
Response Time	0.**5s	Operating Temperature	*0 ~ 0 ºC
Maximum Detection Distance	**0m	Operaing Humidity	<*8%RH, no condensation
Concentration Range	0~0,*0 ppm·m	Main Unit Dimension	*4 × 9 × **3 mm
Compatible with UAV Model	DJI M**0 Series	Main Unit Weight	0.7kg

Application
The drone-based laser methane detector is widely used in the following fields:

Urban Gas Distribution Pipelines:
Detects leaks in gas pipelines to ensure the safety of urban gas supply.
Petroleum and Petrochemical Industries:
Detects methane gas concentrations in refineries, chemical plants, etc., to prevent explosions and other accidents.
Metallurgical and Power Industries:
Detects gas leaks in locations where leaks may occur, ensuring production safety.
Environmental Monitoring:
Monitors methane concentrations in the atmosphere to assess environmental quality and pollution levels.
Other Complex Environments: Inspects pipelines in landfill sites, complex terrain areas, etc.
