Cone Crusher,cone crusher parts,cone crusher specification

Cone Crusher,cone crusher parts

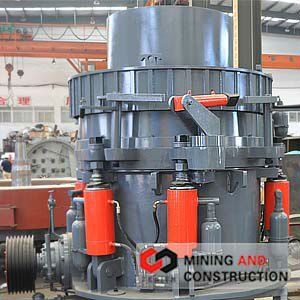

Thiscrusher is suitable for crushing various mid-hard and above mid-hardores and rocks. It has the advantage of reliable construction, highprod activity, easy adjustment and less cost in operation. The springrelease system of crusher acts an overload protection system thatallows tramp to pass through the crushing chamber without damage to thecrusher. Two kinds of sealed formation dry oil and water are used, theplaster stone and engine oil are separated, and reliable performance isensured.

Illustration of How cone Crusher works?

Cone crusher crushes materials by the working surface between themovable cone and fixed cone. The movable cone of the cone crusher issupported by spherical bearing and fixed on a hanging erect shaft whichis set in the eccentric sleeve, and the sleeve is set on the stoppingand pushing bearing. The movable cone and erect shaft are driven by theeccentric shaft sleeve together. The eccentric shaft sleeve is drivenby horizontal shaft and fimbriated gear, and the wheel of the conveyorbelt is driven by motor through v-belts. The lower part of verticalshaft is installed in the eccentric sleeve. When the eccentric sleeveof cone crusher rotates, there is a conical surface lined out by theshaft. When the movable cone comes near the fixed cone, rocks aregrinded into pieces, when the cone leaves, grinded materials isdischarged from the discharge hole. The fixed cone can be ascended ordescended by adjusting setting to adjust the width of discharge hole;consequently the output size is determined.

cone crusher specification
