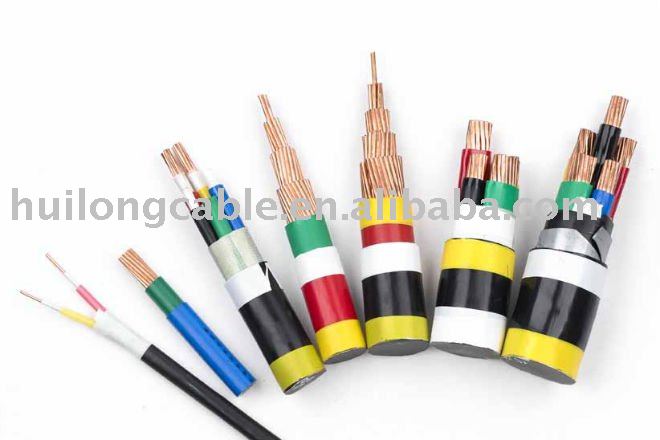

Control cable

Product Description

Conductor:
Solid or stranded Aluminu

-Insulation:
*0 Celsius Degree PVC Insulated
-Circuit Identication:
The insulation shall be red, black
-Filler:
Polypropylene lament with lapped binding tape
-Inner Sheath:
Polyvinyl chloride (Black)
-Armor:
Galvanized steel wire/steel tape/Unarmored/Aluminum wire
-Core-covering:
Binding tape
-Outer Sheath:
Polyvinyl chloride (Black)

-Application:
For use in ducts, trays and direct burial in ground. The cable is subject to immerse in water all the time.
-Standards / Testing Specications:
IEC ******1.

Installation
This cable can be installed in duct, tray or direct burial. It is recommended that the installation instructions indicated by the Local Electric Code, or any equivalent, be followed, so that the safeguarding of persons and the integrity of the product will not be affected by eciencies in the installation.

XLPE Insulation Power Cable
The Application of Power Cable
Power Cable is used to transmit power on power distribution circuit of AC *0Hz, rated voltage *5 KV or lower. It has not only excellent electrical performance, mechanical performance, heat-resistant & anti-aging performance, environment resistant character & chemical-corrosion resistant performance, but simple structure, light weight, without restriction by laying fall, and it also has high temperature (*0) for long term

Instruction
I. Executive Standard: GB****6.1.3 adopts international electrician committee IEC****2

II. Working Features:
1. Environment temperature should be no lower than 0 for laying, the cable fall without limitation

2. The min bending radius of cable is stipulated as follows: Single core: *0(d+D) 5% three cores: *5(d+D) 5% (D is actual diameter of cable; D is actual outer diameter of conductor).

3. Operation temperature of cable PVC sheath is no more than *0.

4. Max rated temperature of cable conductor is *0, and no higher than **0 in time of short circuit (max. Lasting time is no longer than 5s).

Our company can produce both flame retardant and non-flame retardant series of XLPE power cable...Our products can be produced according to our works specifications which are equivalent to GB****6, IEC****2, IEC****2, IEC****4, and its some indexes are superior to standards stated above...

The flame-retardant cable covers all kinds of low-smoke low-halogen, low-smoke halogen free and three classes of A, B, C. We can design and manufacture special XLPE cable according to the other standards require by the customers, such as heavy section cut part conductors, water-resistant, defend termites, defend mouse, and so on...
