Corrugated Metal Roof PV Mounting System

Product Description

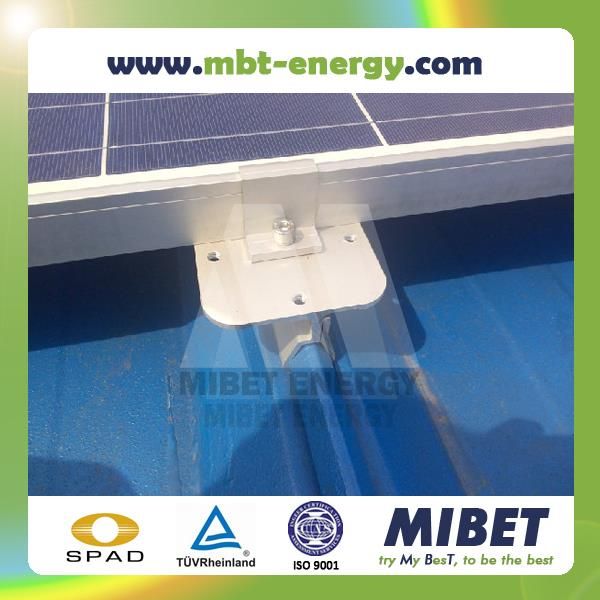

MRac Angle Flyback IV is specially designed for the corruagated roof of corresponding shape with the maximum flexibility in designing for both residential and commercial rooftop solar system. By our patented components, the panels can be installed on the hooks which are fitted to the corrugated shape of the metal sheet and can be used on both even and sloping surfaces. The high strength and corrosion resistence can bear the extremly high wind and snow load.







Advantages

1. Quick Installation: Quick and easy installation is promised due to our patented components;

2. Structural Strength: The system is applicable for heavy snow load installation area;

3. Special Design: The panels can also be installed directly on the hook without rails.

4. Quality Guarantee: The Strict QC over all components makes our solution more reliable. Mibet will offer *0 years of warranty (however, the actual working life will be more than *0 years).





Technical Patameters

1. Specification: L**0***0

2. Material: Al****-T5

3. Thickness of Oxidation Layer: Not less than *0μ

4. Tensile Strength: Pull off from the corrugated roof when the tensile force reach 3.*5KN

5. Compressive Strength:  The corrugated roof damaged while the hook is in good condition when the pressure reach 6.*9KN.
