Crawler Spider Boom lift

Product Description

Fuzoom Crawler Spider Boom Lift

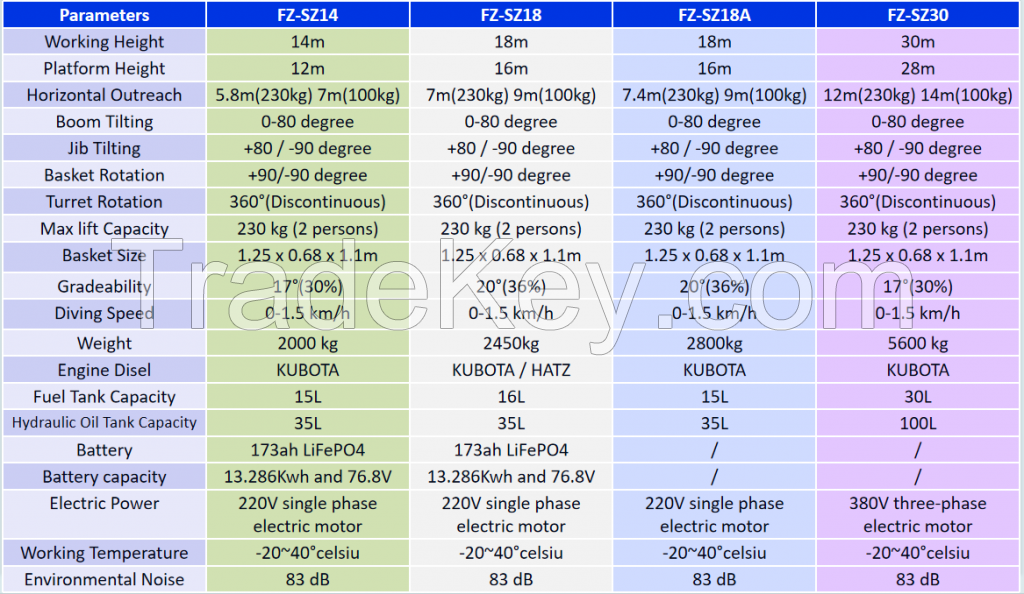

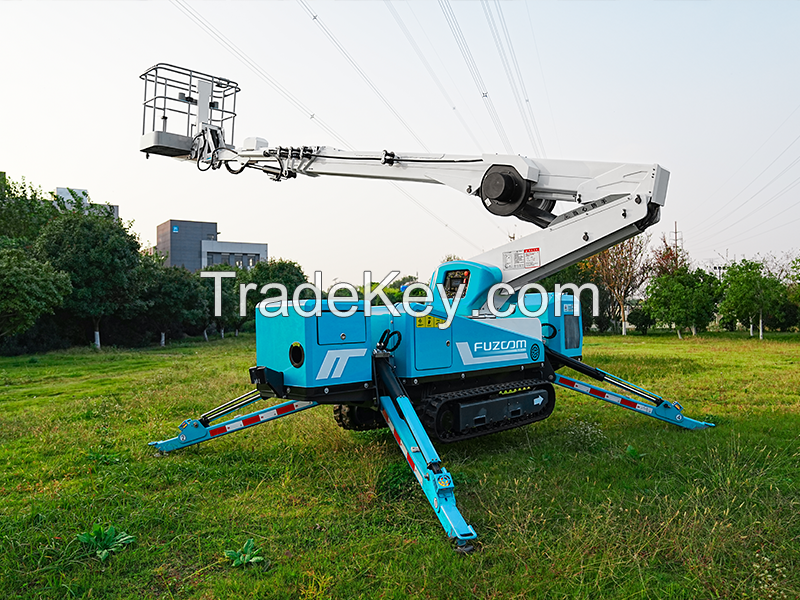

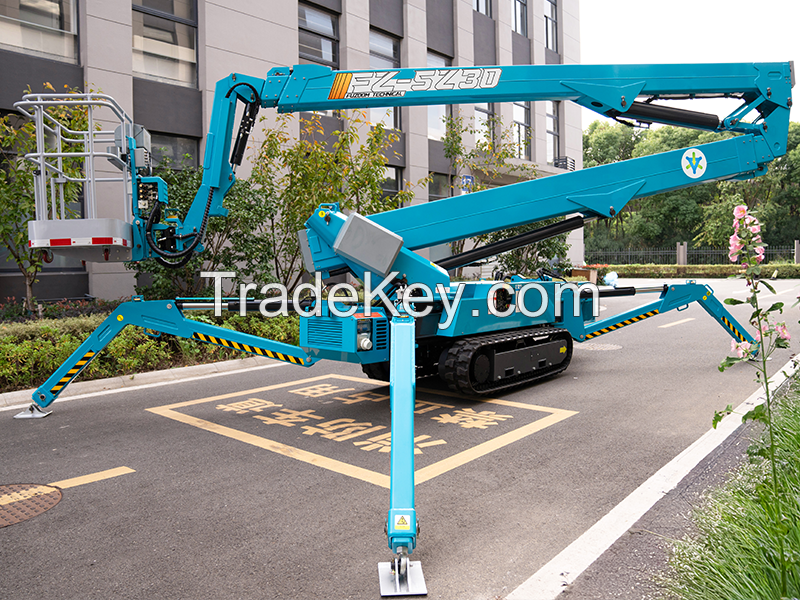

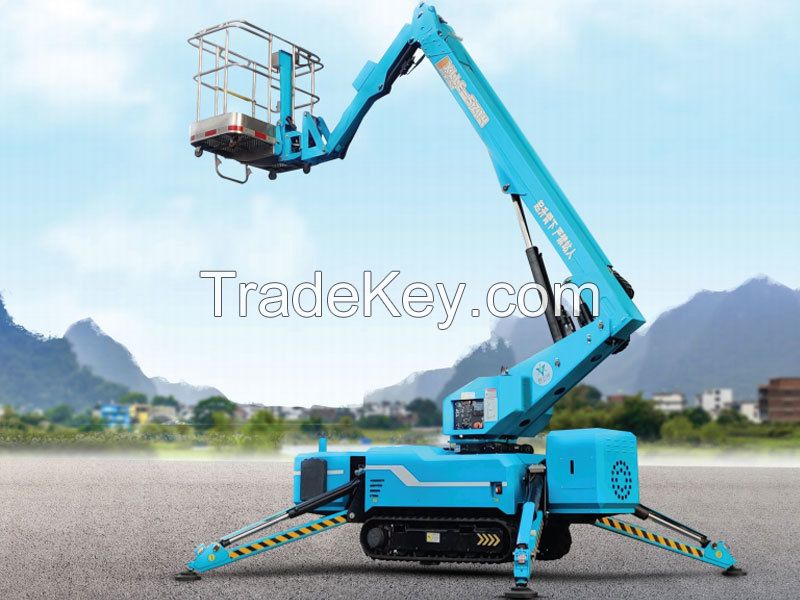

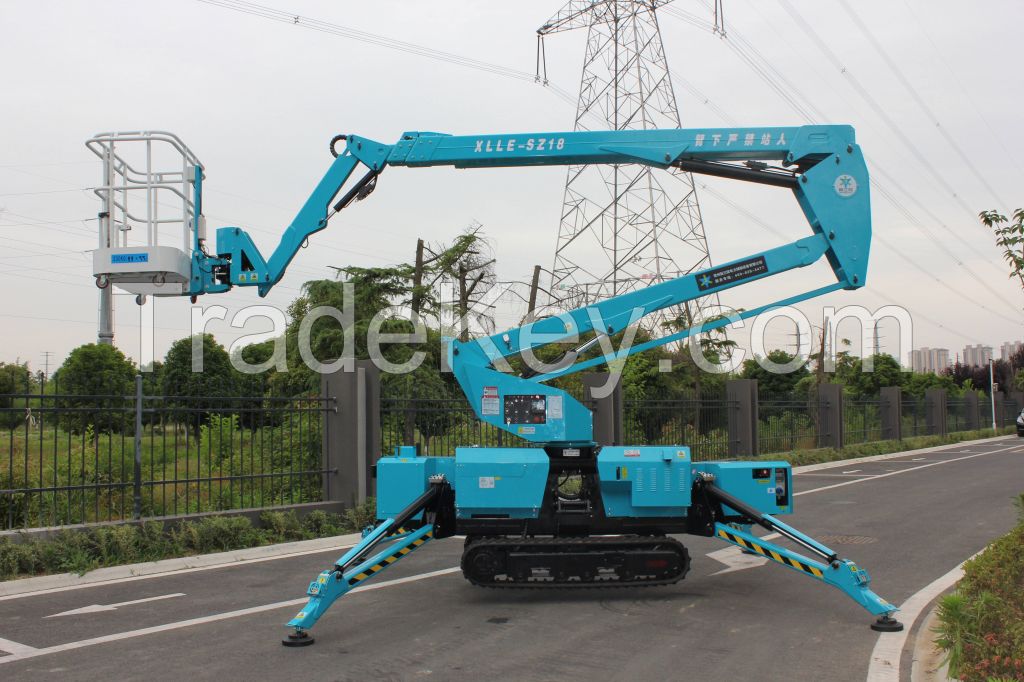

Fuzoom technical is a professional manufacturer of crawler spider boom lifts. Currently, we have 4 models of spider lifts, SZ14, SZ18, SZ18A and SZ30, with working heights of 14 meters, 18 meters and 30 meters. The SZ14 and SZ18A are telescopic spiderlift, SZ18 and SZ30 are articulated. A new model SZ26 will be launched in 2026.

High-quality core components
In order to make reliable products, we use all core components from top international brands. Take 18A as an example, its equipped with Kubota engine, S.Y motor, Bosch Rexroth controller, German GATES hydraulic oil pipe, IGUS cable, MOBA dual redundant leveling sensor,  REELCRAFT reel and CONE DRIVE rotary reducer are from USA. Swing cylinder and hand pump are from Italy.etc.

Control Mode
Fuzooms Spider lifts are equipped with a very easy-to-understand control panel on the chassis and a remote control that can be controlled 100 meters away.  The SZ30 comes with an extra control panel in the basket. So as to meet the different needs of users

Dual - Power
The diesel and AC dual power as standard, which not only ensures stability and safety, but also achieves economy and environmental protection. At the same time,it is also equipped with aemergencymanual pump, which can slowly return the work platform to the ground when there is no AC or engine failure.

Safety
The one- automatic leveling function is applied to our spider lift. The working arm will be allowed to be operate when spider lift leveled. The functions of working arm, outriggers and walking are locked to each other, so that the operator can only operate one of the functions alone.  The spiderliftalso has an over range and overweight alarm & limit functionto ensure that the operationalways in a safe range.
