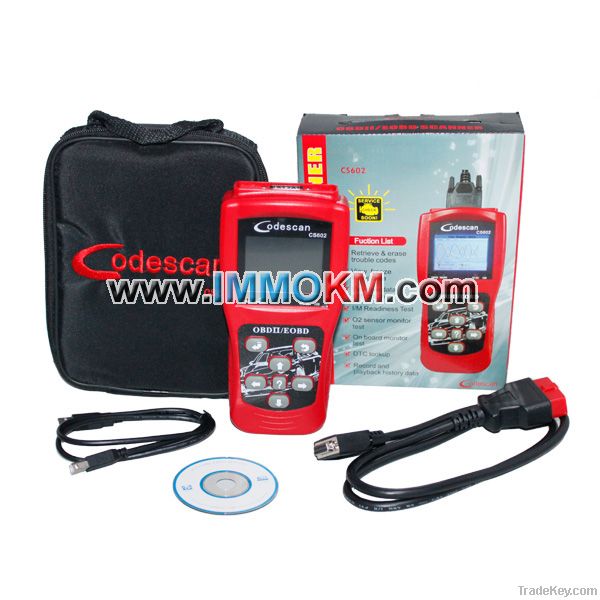

CS602 Codescan OBDII EOBD OBD II Scanner

Product Description

CS**2 Codescan OBDII EOBD Scanner

Function list:
1. Retrieve and erase trouble codes;
2. View freeze frame data;
3. View live data with graph;
4. I/M Readiness test;
5. O2 sensor monitor test;
6. On board monitor test;
7. DTC lookup
8. Record and playback history data

Feature & Functions:
1. Works on all ***6 and later OBDII compliant US, European and Asian vehicles;
2. Support all *0 OBDII test modes, including the latest SOA mode;
3. Support diagnostic protocol including SAE J***0 PWM/VPW, ISO *****2, ISO ******4(KWP), ISO******4(*1bit and *9bit CAN)
4. Language including English, Spanish, French;
5. Uses 2.8' color LCD display;
6. Retrieves generic codes and manufacturer specific and resets monitors;
7. View freeze frame data;
8. View live PCM datastream;
9. Graphs live datastream;
*0. Read live O2 sensors test data;
*1. Read vehicle information(VIN, CID and CVN)
*2. Record and playback history data;
*3. Build in OBDII DTC lookup libray.

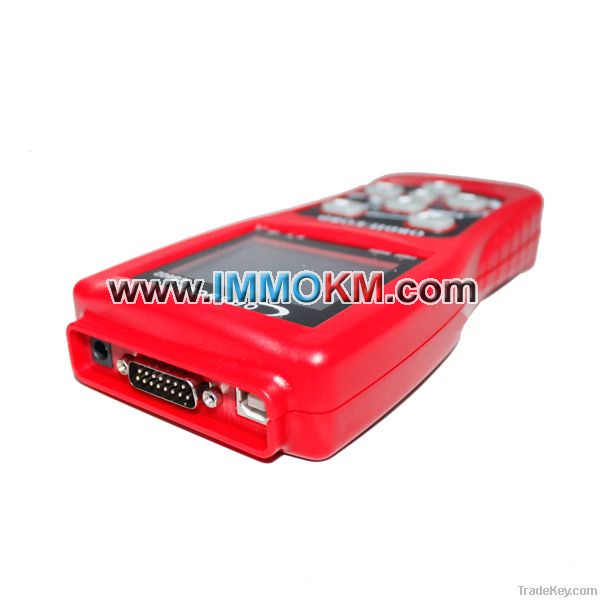

CS**2 outline:

1. Cable with OBDII connector*-Connect CS**2 to the vehicle'data link connector;
2. LCD Display*-Indicate test result;
3. Exit Button*-Return to previous menu;
5/7 Right/Left Buttons*-Move cursor right or left for selection;Or turn page up or down when more than one page is displayed;
4/6 Up/Down Buttons*-Move cursor up or down for selection;
. Enter Button*-confirm a selection(or action) from a menu list.
*0. Help Button*-Show help information for user;
*1. Power Port*-Power supply of *2V.
A Red LED indicator lamp*-confirmed DTC; When it displays"Confirmed DTC", the red indicator lamp will light on;
B Yellow LED indicator lamp*-Pending DTC; When it not sure or unknown DTC, the yellow indicator lamp will light on;
C Green LED indicator lamp*-No DTC; When they are no DTC, the green indicator lamp will light on;
D Blue LED indicator lamp
; Dispaly the status of usb communication when updating.

Specification:
1) Screen: 2.8” TFT **2K true color, **0***0 QVGA LCD display
2) Input voltage range: 8~*2V
3) Operating current: *@********************umption: <1.2W (Typical)
5) Operating temperature: *2°F~**2°F / 0
6) Storage tempetature: *4°F~**8°F / **0°C ~*0°C
