Digital Rail Head Wear Gauge for Rail Side-Cut and Railhead Wear Measurement

Products Description



Rail Wear Gauge

Digital rail wear gauge is used for special measuring tools of railway line maintenance department for line frog and wing rail wear value, digital display rail wear measuring instrument is suitable for the railway fixed frog fork ruler and the vertical wear amount and pile height of the wing rails on both sides, quickly measure the vertical and side wear of rail frogs.

Advantages

1. Digital type with direct readings:
LCD display screen, clear and readable; No calculations required,gives direct reading ; When reading, hold down the HOLD   to fix the measurement value and facilitate reading.
2. High measuring accuracy: The measurement accuracy is 0.*1m

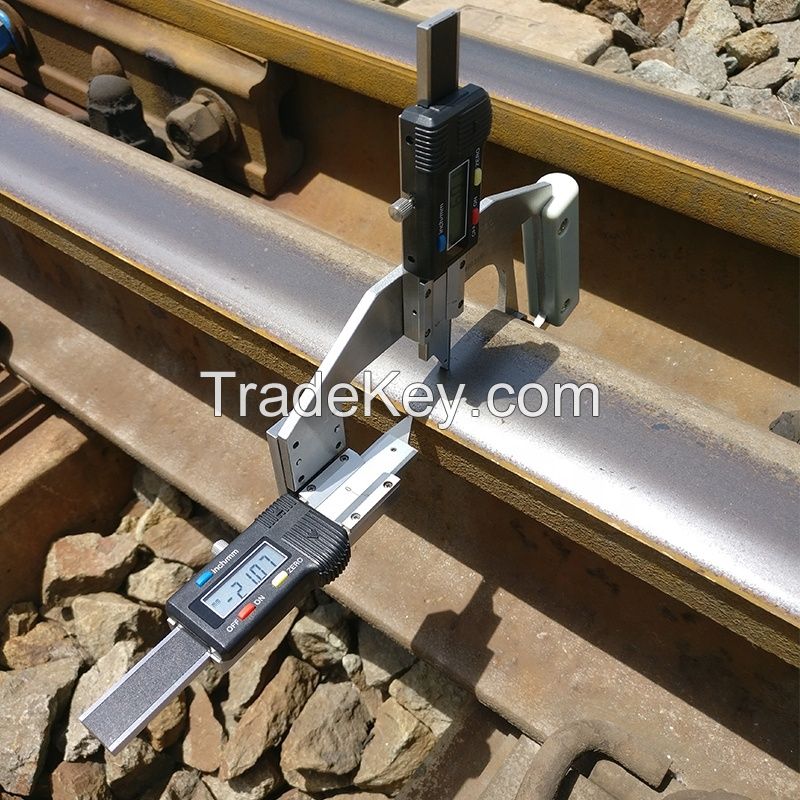

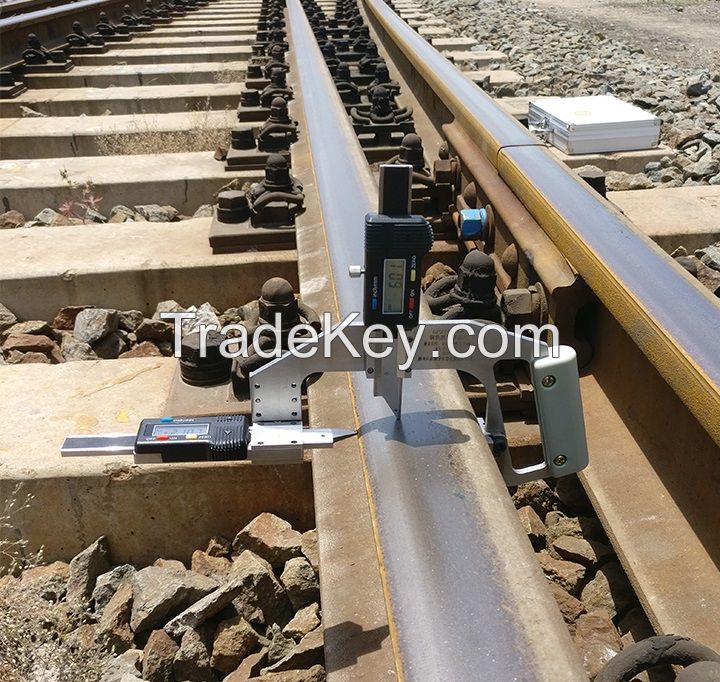

3. Easy to use, measure the vertical and lateral rail wear at the same time:
position the rail wear gauge on the outer side of the rail .Push the vertical and lateral rail wear gauge so that the measuring
probe is in contact with the upper surface and inner side of the rail respectively.Then the vertical and lateral wear of the rail
can be read.
4. Metric /Imperialunit
5. Support customize:we could customize all kinds wear gauge according to different rail profiles and different measure points.
6. Fast calibration:One-key zero clearing function, can be quickly calibrated before each use to reach the factory measurement accuracy.
7. Magnetic fixed part: strong magnetic fixed part to attach to the rail.
8. Rail fillet as measuring base to ensure measure data more accuracy: Rail fillet is more clear than rail bottom,no dust. It
  could ensure the measure result reliability.
9. Portable Handle
This product is designed with a handle that is easy to hold, which greatly improves the portability of the product. It can avoid touching the ruler body directly, cause the ruler body to be stained and corroded, improve the product service life.
*0. Goodstability and high strengthof the material
The ruler body is made of 3cr*3 stainless steel. After the heat treatment, it has higher strength and hardness, not easy to
deformation, it has a good stability.
*1. Customize the matching calibrator

Product Paramenters

Details Images



Package & Delivery

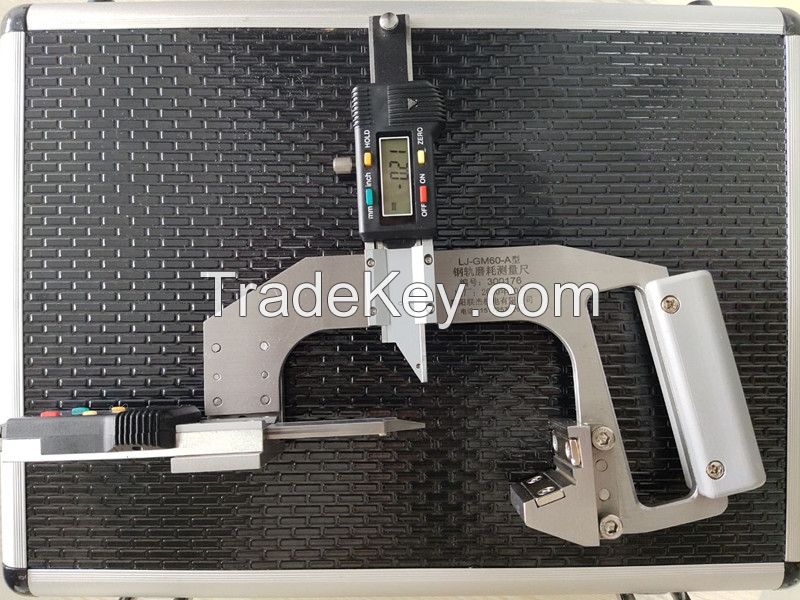

Package : Aluminum box + Paper Box

Company Profile



Xiangyang Lianjie Mechanical&Electrical Co.,Ltd.

Xiangyang Lianjie Mechanical&Electrical Co.,Ltd. Established in ***3,specialized in designing and manufacturing of the geometry measurement systems for the railway,including digital track gauges,mechanical gauge,rail wear gauge,turnout measurement gauges ect. Our products are China Railway Construction Corporation Limited (CRCC) approved.The products are used by CRCC for all their rail operation. Besides, our products are also being used by major rail operators in America, Australia, Europe and the ASEAN countries.The bitterness of poor quality remains long after the sweetness of low price is forgotten. Our mission is to manufacture high quality rail measurement instruments at a competitive price with reliable services to our clients in order to help them to maintain & operate a safe railway system.
