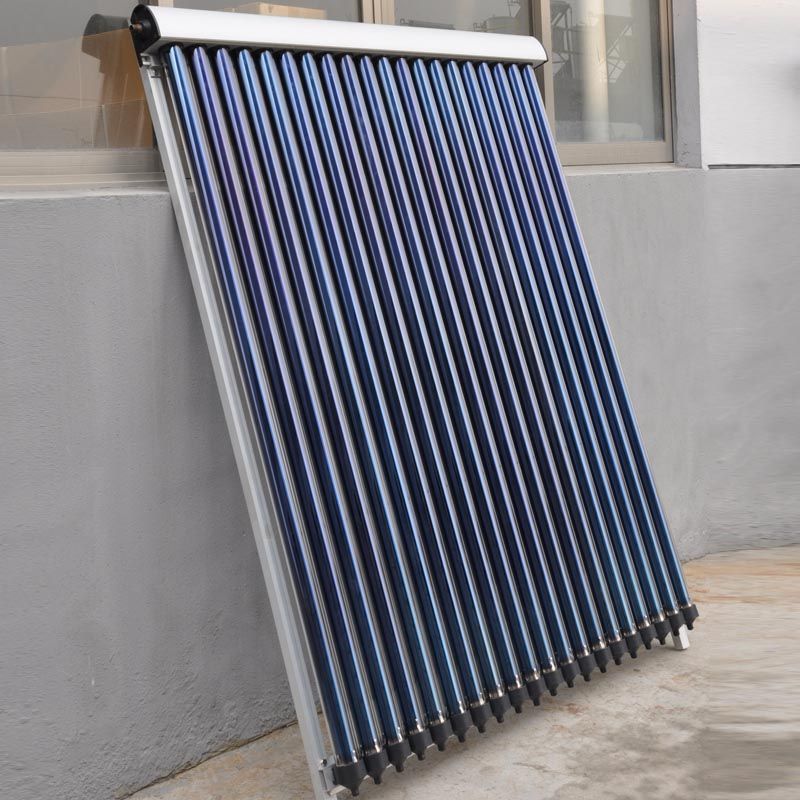

Dll-C-P02 U Pipe Solar Thermal Collector

FOB Price

Get Latest Price

160 ~ 330 USD / Set

|

1 Minimum Order

Country:

China

Model No:

Dll-C-P02

FOB Price:

160 ~ 330 USD / Set Get Latest Price

Place of Origin:

-

Price for Minimum Order:

160 per Set

Minimum Order Quantity:

1

Packaging Detail:

Standard Export Cartons

Delivery Time:

30 DAY AFER ORDER CONFIRMED

Supplying Ability:

2000 Set per Month

Payment Type:

L/C, T/T

Product Group :

Contact Now
Free Member

Contact Person Cindy

Haiyan, Jiaxing, Zhejiang

Contact Now

Product Specification

  • Size:10 15 20 (tubes)

Product Description

Features:
1) No water in vacuum tubes, each vacuun tube works individually
2) Collector has large scale and higher efficiency for CPC reflector (**0 absorber)
3)  Low temperature resistance: No breaks at **5.

4) Quick heat energy exchange
5)  Adopt to different installation environment for the rational design bracket.

Technical Information

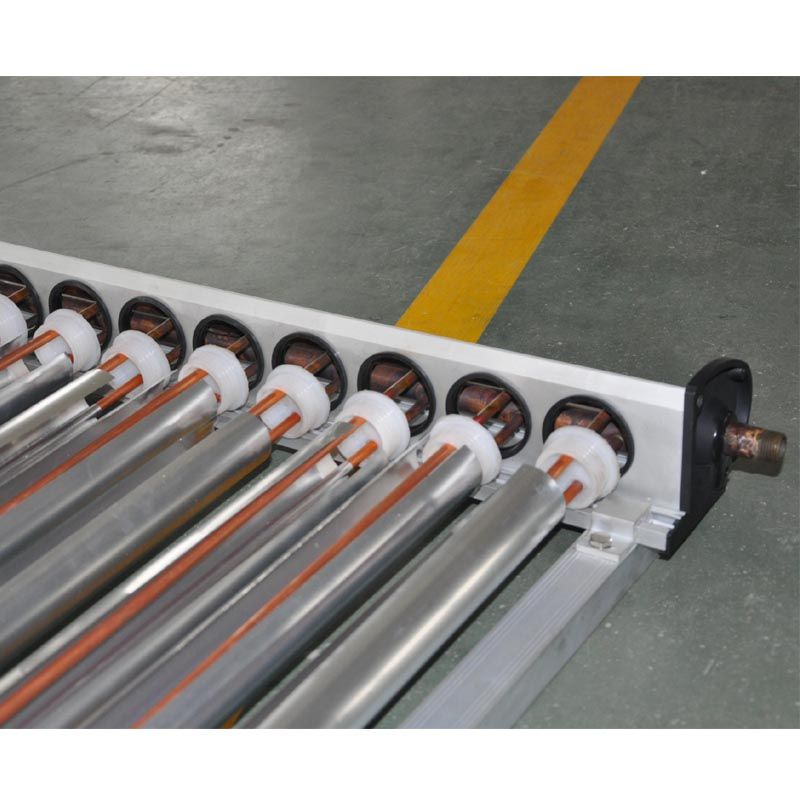

A) Vacuum Tube with U pipe
     a) Three target solar vacuum tube, size: *8X***0mm
     b) U Pipe: Red copper, Dia: 8mm, wall thickness: 0.6mm
     c) Heat transfer fluid: Anti-freeze fluid (water-glycol)
     d) Aluminium fin: whole piece aluminum sheet, length:***0mm; thickness: 0.2mm
     e) Sealing Plug: Sillicone rubber with stainless steel

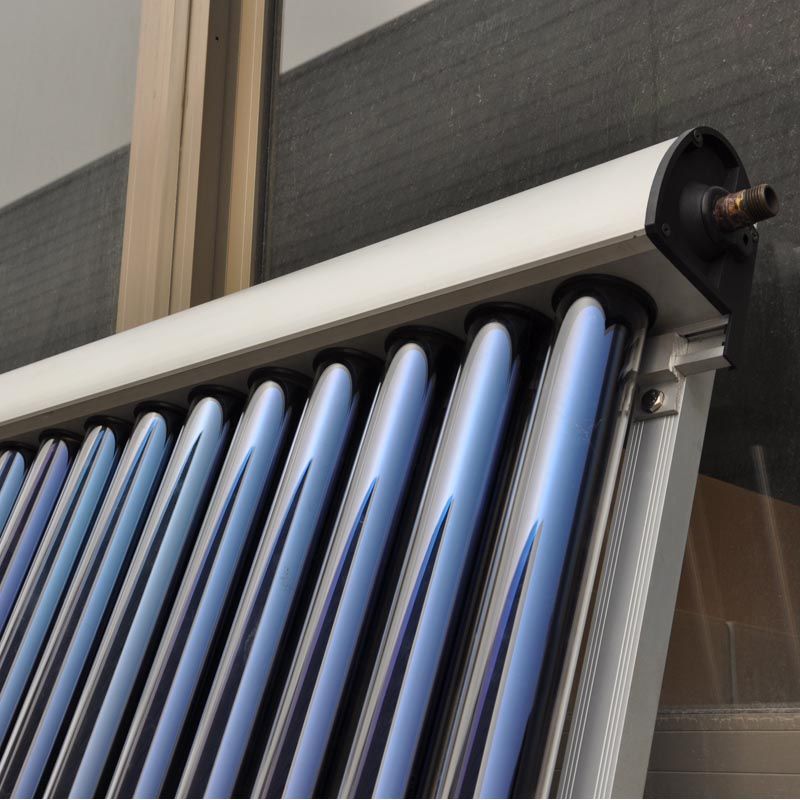

B) Manifold Casing:
     a) Material: Aluminum alloy, thickness>=2mm
     b) End cover: Nylon plastic parts
     c) Manifold anti-water ring: Sillicone rubber
     d) Collector anti-dust Cover: Sillicone rubber

C) Header pipe: Red copper, Dia: *2mm, thickness:1mm

D) Insulation: Rock wool, thickness: *5mm; density: *0Kas/m3

E) Connection Material & Size: Brass, G1/2'' OR G3/4'' male thread or to customer's request

F) Bracket: Aluminum alloy, thickness: 2mm

G) Tube Supporter: Adjustable nylon plastic parts (sliding type)
