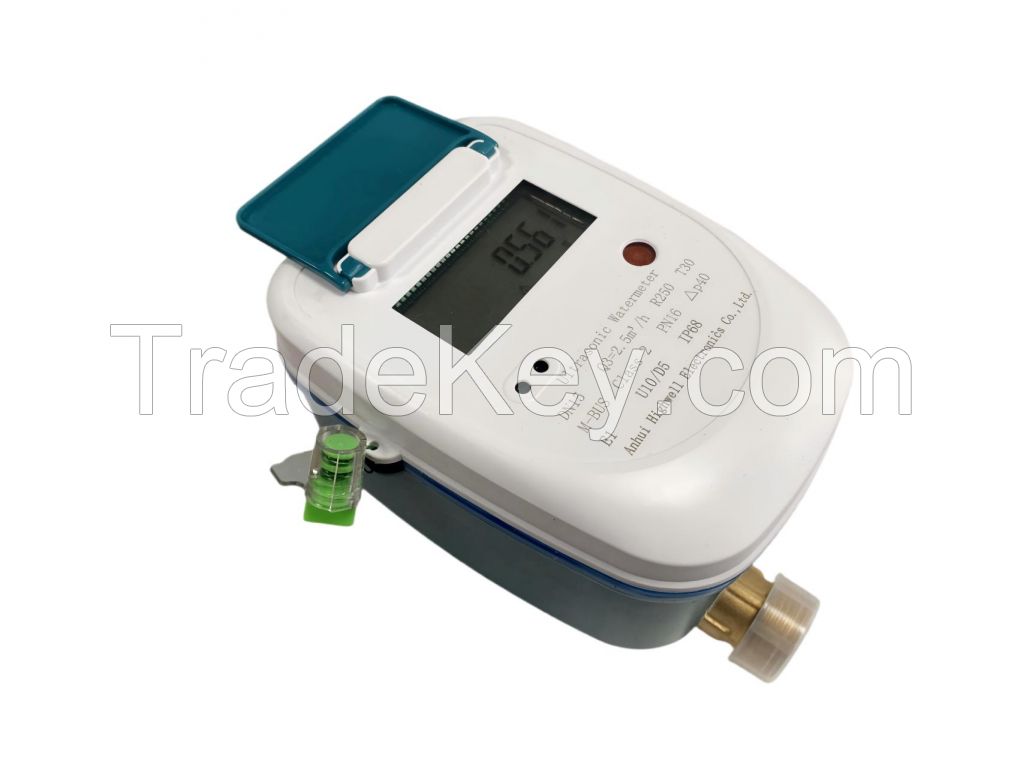

Features
1.Uses picosecond-level high-precision metering chips, providing
low starting flow, wide measurement range, high accuracy, and the
ability to measure even the smallest drops of
water.
2.the electronic components are fully sealed, offering
waterproof, moisture-proof, dust-proof, dirt-proof, and
sand-proof characteristics.
3.Can store *4 monthly records, **0 daily records, and **2 hourly
records. Data can be preserved for a long time even after power
loss.
4.Real-time monitoring of battery, temperature, and flow. In case
of low battery voltage, transducer abnormalities, or non-full
pipe (empty pipe) conditions, the system has the capability to
detect, record, and alert. the screen will display corresponding
prompts.
5.Multiple communication options are available (infrared, RS**5,
M-Bus, NB-IoT, LoRa, Cat1, TTL, LoRaWAN, etc.) to enable
centralized meter reading, parameter setting, and other
functions.
6.Optional valve control function for remote valve
operation.
7.Supports remote online upgrades at the meter end, continuously
meeting new requirements for the water meter and addressing user
concerns.
Technical Parameter
| Performance | Parameters | |||||
| Nominal Diameter | Q3/Q1 |
Starting flow QS (L/h) |
Minimum flow rate Q1 (L/h) | Transition flow rate Q2 (L/h) |
Permanent flow rate Q3 (L/h) |
Overload flow rate Q4 (L/h) |
| DN*5 | R**0 | 2.4 | *0 | *6 | ***0 | ***5 |
| DN*0 | R**0 | 4 | *6 | *5 | ***0 | ***0 |
| DN*5 | R**0 | 6.4 | *5 | *0 | ***0 | ***5 |
| DN*2 | R**0 | *0.2 | *0 | *4 | ****0 | ****0 |
| DN*0 | R**0 | *6 | *4 | **0 | ****0 | ****0 |
| Performance | Parameters |
| Measured Medium | Domestic water (other liquids require customization) and must fill the pipe |
| Operating Voltage | DC3.6V (non-rechargeable lithium battery) |
| Accuracy Class | Class 2 |
| Q3/Q1 | R**0 |
| Nominal Diameter | DN*5～DN*0 |
| Maximum admissible Pressure | *6 bar |
| Environmental Class | Class O |
| Temperature Class | T*0/T*0/T*0(optional) |
| Upstream Flow Field Sensitivity Class | U*0 |
| Downstream Flow Field Sensitivity Class | D5 |
| Electromagnetic Environment Class | Class E1 |
| Communication Interface | RS**5/M-Bus/Infrared/NB-IoT/LoRa/Cat1/TTL/LoRaWAN(optional) |
| Protection Class | IP*8 |
| Button | Touch |
Outline Dimension
| Nominal Diameter | Length L (mm) | Width W (mm) | Height H (mm） | Thread Diameter D (mm） |
| DN*5 | **5 | *8 | **9 | G3/4B |
| DN*0 | **5 | *8 | **6 | G1B |
| DN*5 | **5 | *8 | **5 | G1 1/4B |
| DN*2 | **0 | *8 | **2 | G1 1/2B |
| DN*0 | **0 | *8 | **4 | G2B |
