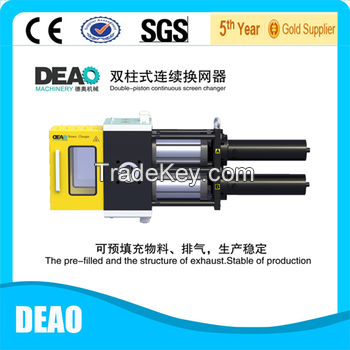

Double-piston continuous screen
changer
Description

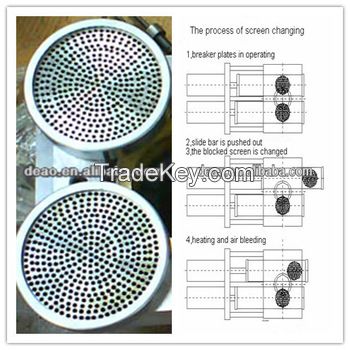

Double-piston continuous screen changer is
designed to consist of two pistons with each containing a filter
screen,the two screens work at the same time,when a screen change
is required,one of the pistons is moved out while the other remains
in the operating position,and the melt flows continuously through
the other piston,the pressure fluctuation is small,thereby meeting
the requirement of high quality production.
Application：
*Castfilm, plate,
sheet, pipe,
granulation , etc
*Applicable to the production line of
collosols, adhesive, coating and finishing materials and other
blending agent products, used for filtration
of mixture
material.
Performance Features
*Large
filtering area, High efficiency
*Dual
channels for filtration, no need to stop the working machine when
changing
the screen.
* Material
leading and air exhausting design, product
continuance
*Small
pressure fluctuation when changing screen, stable of the material
flow
| Type |
Dimensions L/W/H(mm) |
Screen-Dm （mm) |
Suitable Materials |
Capacity (kg/h) |
Heating Power (kw) |
Pressure (Mpa) |
| DHZ*****0 | **0***0***0 | *0 | Almost all polymers | *****0 | 4 | ≤*5 |
| DHZ*****0 | ***0***5***5 | *0 | Almost all polymers | ******0 | 6 | ≤*5 |
| DHZ***140 | ***0***0***0 | **0 | Almost all polymers | ******0 | 7.4 | ≤*5 |
| DHZ*****0 | ***0***5***5 | *30 | Almost all polymers | ******0 | *0 | ≤*5 |
| DHZ*****0 | ***0***0***0 | **5 | Almost all polymers | *******0 | *2 | ≤25 |
| DHZ**-300 | ***0***0***0 | Oval screen | Almost all polymers | ****-3**0 | 13 | ≤25 |
| DHZ******0 | ***0***0***0 | Square screen | Almost all polymers | *5**-4**0 | 13 | ≤25 |
