DP120/60 Segment Launching Gantry

Product Description

DP**0/*0 Segment Launching Gantry（in year ***4, 2 sets）
Client: CCCC First Highway Engineering Co., Ltd

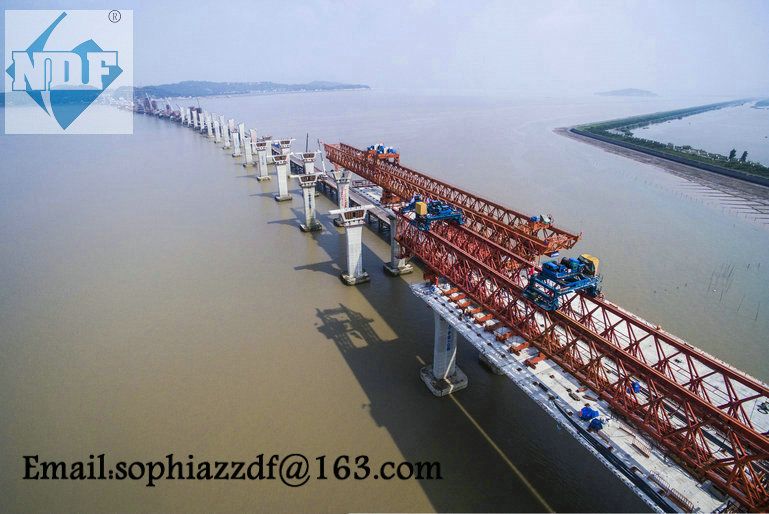

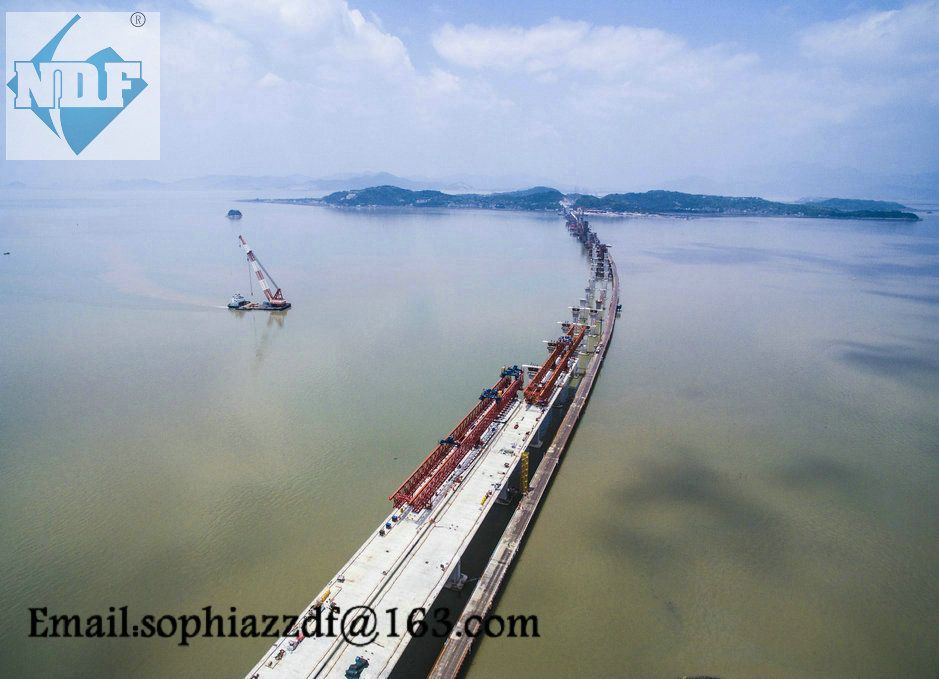

Project applied ：Yueqing Bay Cross-sea bridge（ continuous beam bridge ，T structure, span by balanced ）
segment launching gantry Technical data ：max span *0m, Max  load ***0t，max segment weight **0 t，longitudinal slope 2.3%，curve radius ***0m。
Main technical parameter
Technical parameter
Construction Method
Span    *0m、*7m
Longitudinal gradient    ≤3%
Transverse gradient    ≤3%
Applicable curve radius：Larger than ***0m
Power requirements    **0V, *0Hz
segment gantry transport requirement：meet the requirements of normal road transport limitations
segment Girder supply method:supply the girders from the end part of the Launcher if on the bridge or supply directly under the bridge.
Max. weight of girder section    **0t
Max. span weight    ***0t
Max. hoisting height of trolley    ≥*0m
Winch hoisting speed    0~3m/min
Trolley travel speed    0~*5m/min
trolley sling    **0°
**0°rotation,4% adjustable in 2 directions
