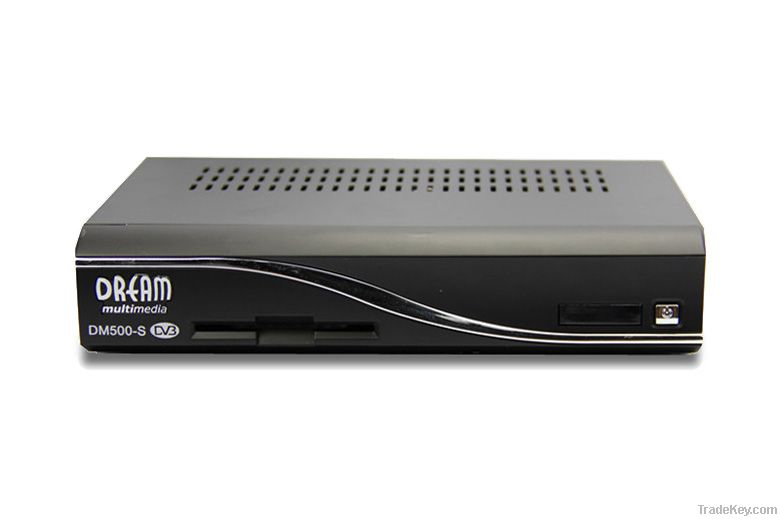

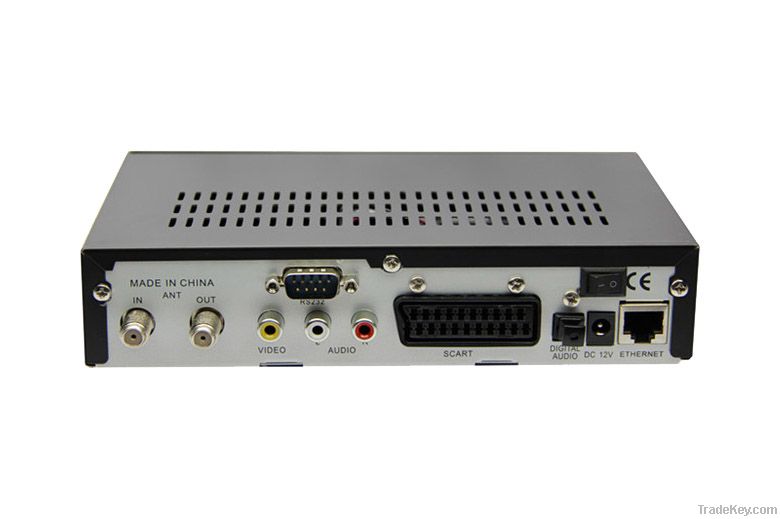

dreambox 500s

Product Description

Product Description

Features:
- **0MHz IBM PowerPC processor (**0Mbps)
- Linux operating system
- 1 x smart card reader
- MPEG*2 hardware decoding
- **0MB full duplex Ethernet interface
- 2 LED status
- Unlimited channel lists for TV/radio
- Channel change time: <1 second
- Full automatic service scan
- Supports directly bouquet lists (indirect unlimited)
- Supports EPG (electronic program guide)
- Supports multiple LNB switching controls (supports DiSEqC)
- Fully adaptable OSD in many languages (skin support)
- SPDI/F interface for digital bit stream out (AC*3/DTS)
- 1 x SCART interface (fully controlled by software)

Video decoder:
Video Compression MPEG*2 and MPEG*1 compatible
Video Standard PAL and NTSC
Video Formats 4: 3 / *6: 9
Footage *6: 9, automatic assimilation for *6: 9 TV-Device (over Scart)
Letterbox precolating for 4: 3 TV-Device Audio decoder:
Audiokompression MPEG*1 & MPEG*2 Layer I and II
Audio Mode Dual (main/sub), Stereo
Frequency: *2 kHz, *4.1 kHz, *8 kHz, *6 kHz, *2.*5 kHz, *4 kHz

Video parameter:
Input Level FBAS 1 Vss +/- 0.3 dB on *5 Ohm
Teletext filter in conformity with ETS **0 **2 Standard

TV-Scart:
Output: FBAS, RGB, S-VHS over OSD selectable

DBS-Tuner:
Frequency Range **0...***0 MHz
Signal Level - *5 dBm...- *5 dBm
Signal-to-Noise Level *2 dB max.
DBS-Tuner Input Connector F-Type female
Input Impedance *5 Ohm
AFC +/- 3 MHz
Demodulation Shaped QPSK
Input Symbol rate 2...*5 Mbaud/s, SCPC / MCPC
FEC Viterbi and Reed-Solomon
Viterbirate 1/2, 2/3, 3/4, 5/6, 7/8, automatic assimilation
Roll-off Factor *5 %
Demultiplexing according ISO ******1

Ethernet:
**0 MBit compatible, bi-direktional interface
Function Update of Firmware and Preprogramming

LNB Power and polarisation:
LNB Current **0mA max.; Short-circuit-proof
LNB Voltage vertical < *4V without load, > *1, 5V at **0mA
LNB Voltage horizontal < *0V without load, > *7, 3V at **0mA
LNB shut-off at Standby-Mode

Count of active satellite position:
DiSEqC 1.0/1.2 SAT POSITION / SAT OPTION
DiSEqC - Rotor Control

Output digital:
Output Level 0, 5 Vss on *5 Ohm
Sampled Data Filtering *2 kHz, *4.1 kHz, *8 kHz
S/PDIF-Output optical (AC3)

Output analog:
Output Level L/R 0, 5 Vss on **0 Ohm
THD > *0 dB (1 kHz)
Crosstalk < **5 dB

Serielle Interface RS **2:
Typ RS**2 bidirectional
Bit rate **5, 2 kBit/s max.
Plug Connector SUB-D*9
Function Update of Firmware and Preprogramming

Power consumption:
< *0W / *2V

Input voltage:
DC*2V, alternating acurrent +/- *5%

Extern power supply:
Input:
******0V AC / ****0Hz / 0, 6A
Output:
*2V = / 1A

Others:
Ambient Temperature **5° C...**5° C
Humidity < *0%

Package Content:
*DM ***-S Receiver
* AC Charger
* Remote Control
* AV Cable
* User Manual
