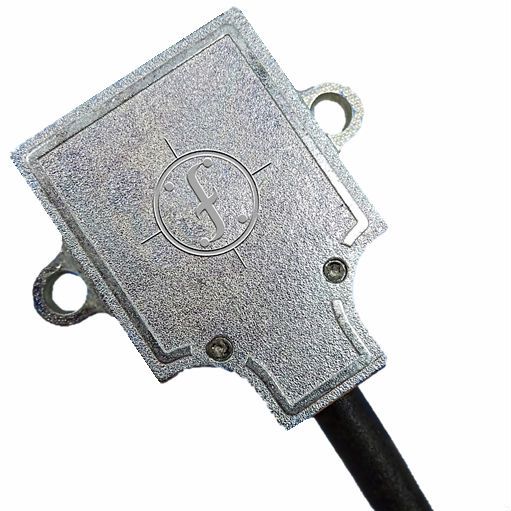

Dual/Two Axis Tilt Sensor Inclinometer (075x-xx02-99)

Product Description

The **5x-x*****9 MEMS inclinometer measures tilt angle and inclination in one or two axes with high accuracy and resolution. This inclinometer can be mounted vertically or horizontally.

Example Applications:

1.  Aerial lift platform level monitor or control
2.  Blade angle measurement of road graders and pavers
3.  Robotic controls
4.  Satellite dish alignment
5.  Navigation instrumentation and compensation
6.  Wheel alignment systems

Benefits:

1.  Competitively priced
2.  Extremely long life
3.  Very low power consumption
4.  Excellent resolution, repeatability, and long term stability
5.  Excellent customer support
6.  On time deliveries
7.  Manufactured in The United States of America

Operating Specifications:

Axes of Measurement: 2
Repeatability: ≤0.1°
Resolution: ≤0.*7°
Linearity (±*0°): ±0.1°
Roll Sensitivity: 4%
Null Temperature Offset: ±0.1°
Range Temperature Offset: ±0.5%
Operating Temperature: **5° C to **5° C
Frequency Response: *8 Hz

Operating Ranges:

***********9: ±*0°
***********9: ±*0°
***********9: ±*0°
***********9: ±*0°

Interfaces:

***********9: Analog
***********9: RS***5
***********9: Analog
***********9: Analog

Physical Characteristics:

*0 mm x *0 mm x *5 mm (L x W x H)
