FOB Price
Get Latest Price10 ~ 20 USD / Meter
|1000 Meter Minimum Order
Country:
China
Model No:
-
FOB Price:
10 ~ 20 USD / Meter Get Latest Price
Place of Origin:
-
Price for Minimum Order:
10 per Meter
Minimum Order Quantity:
1000 Meter
Packaging Detail:
All-steel corrugated reels with fixed base, outside wrapped by fuming wood
Delivery Time:
Shipping by sea
Supplying Ability:
10000000 Meter per Month
Payment Type:
Other, PayPal, Money Gram, Western Union, D/P, D/A, L/C, T/T
Product Group :
Contact Person Ms. Chang
No.555, Wuding Road, Jingan, District, Shanghai
Electric Submersible Pump
Cable
QYYFN PI & Fluoroplastics / NBR
/ 205℃(401℉)
/ Flat
Products

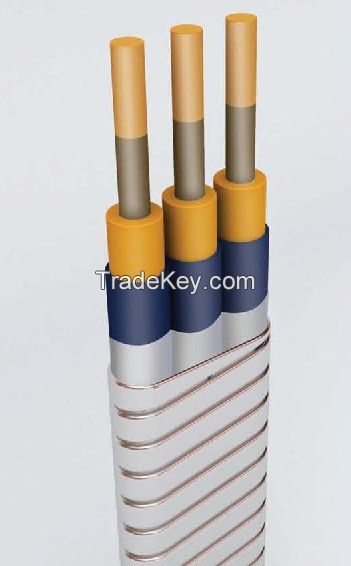

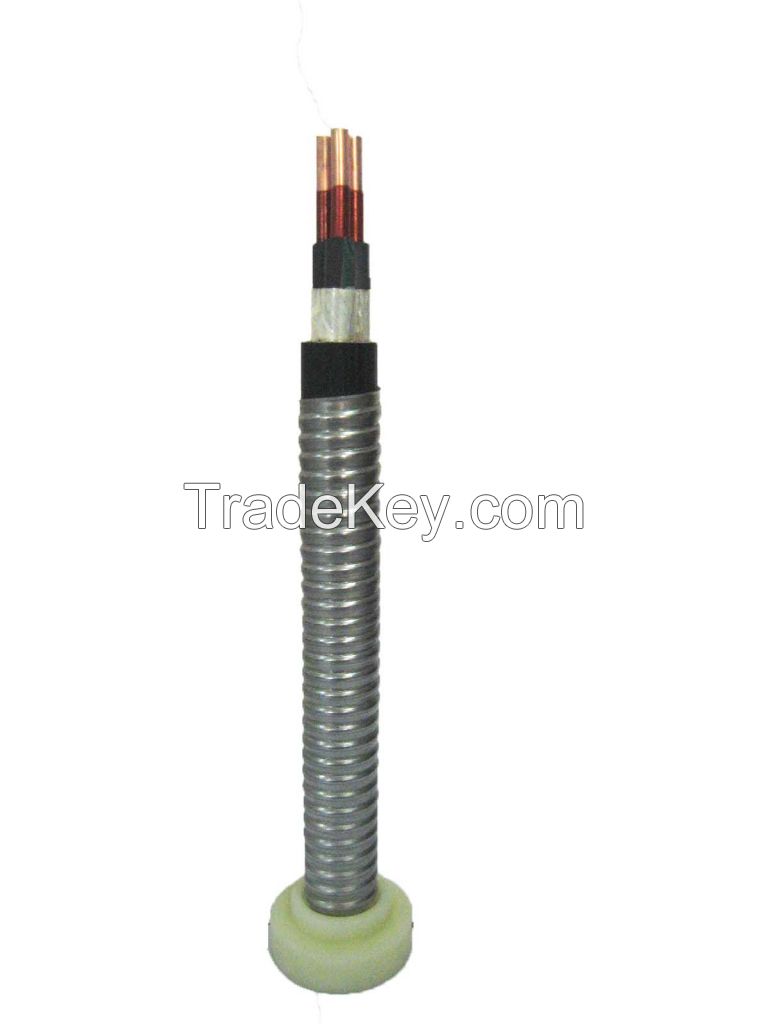

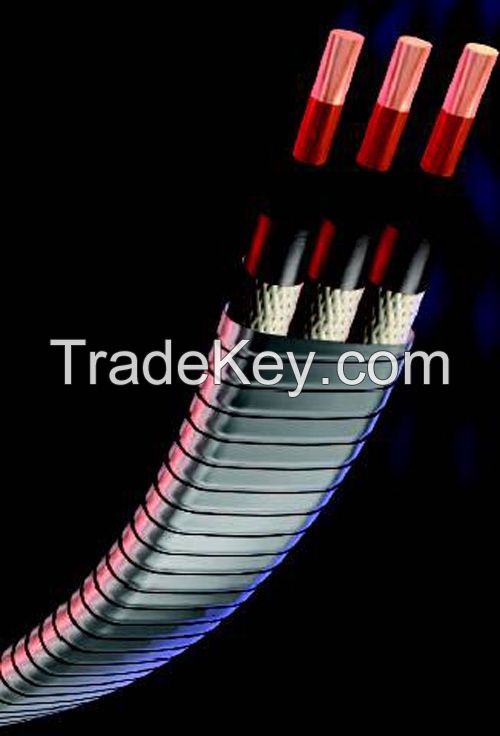

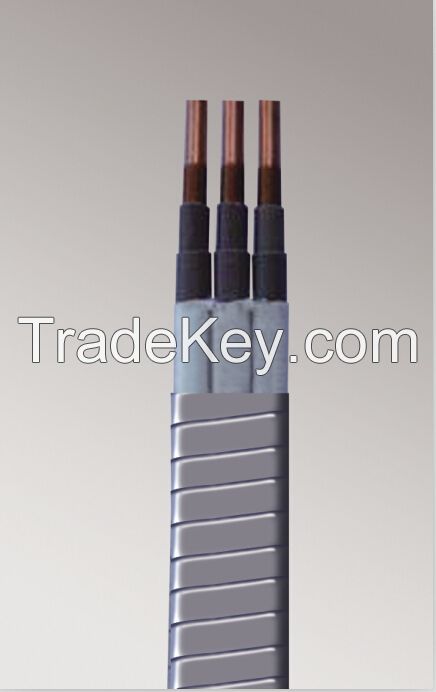

Description
Oxygen-free Solid
(Stranded) Bare Copper Conductor, Combined Insulation with
Polyimide-F46 Composite Film and Fluoroplastics, Nitrile Rubber
Jacket, Polytef and Fiber Tape covered completely over the jacket,
Full Galvanized Steel (or Stainless Steel or Monel) Tape
Interlocking Armour, Flat type.
Production
Range
Voltage: 3kV, 4kV,
5kV, 6kV
Temperature: The permissible and long-term working
temperature is 205℃(401℉).
Performing
Criterion
API RP 11S5-2008,
11S6-2008; IEEE 1017, 1018, 1019; GB/T
16750-2008
Application
Range
The cable is
applicable for using in Electric Submersible Pump Units with rated
voltage less than 3kV or 6kV. It has the excellent function of
oil-resistance, heat-resistance and
corrosion-resistance.

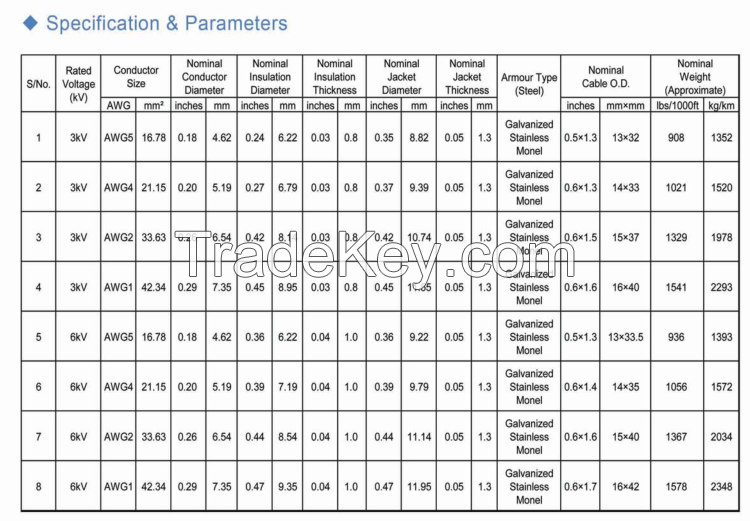

Specification &
Parameters
We can also
produce customers required cable according to the concrete
specification.
Delivery &
Packing
All-steel
corrugated reels with fixed base, outside wrapped by fuming
wood.
Packing length according to customers'
requirements.
| Country: | China |
| Model No: | - |
| FOB Price: | 10 ~ 20 / Meter Get Latest Price |
| Place of Origin: | - |
| Price for Minimum Order: | 10 per Meter |
| Minimum Order Quantity: | 1000 Meter |
| Packaging Detail: | All-steel corrugated reels with fixed base, outside wrapped by fuming wood |
| Delivery Time: | Shipping by sea |
| Supplying Ability: | 10000000 Meter per Month |
| Payment Type: | Other, PayPal, Money Gram, Western Union, D/P, D/A, L/C, T/T |
| Product Group : | ESP CABLE |
