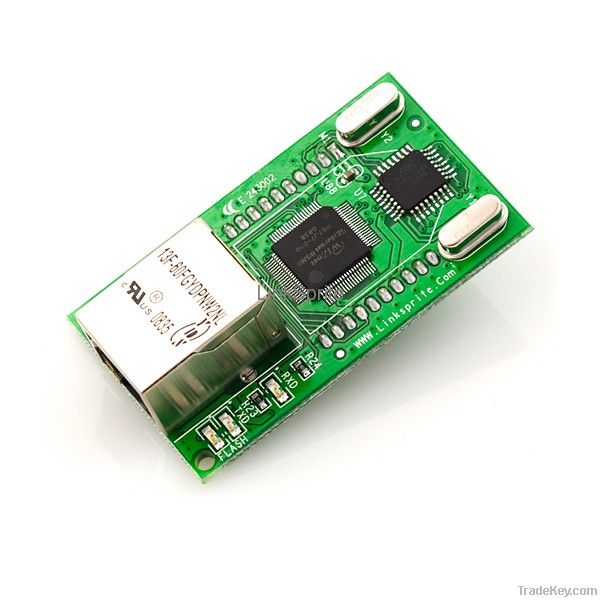

Embedded Serial Web Server Module

Product Description

 LinkSprite embedded serial web server module is designed to provide a TCP/IP access to the serial data. The output pin uses a **-pin 2mm spacing layout, which is pin-compatible with Xbee module from Digi .The LinkSprite embedded serial web server module can also be plugged directly on LinkSprite PLC-UART power line communication module to act as a powerline to web server bridge. Because it's a serial server, a configurable static IP address is used to prevent IP address being changed.  The module is configurable through the convenient AT commands.

 The evaluation board for the serial web server module is LinkSprite UART-UART evaluation board (Part number: LS-UART-UART).

• Fully transparent mode, plug and play coming out of the box without the need to do any programming.
• Static IP address
• *0BaseT/**0BaseTX Ethernet PHY
• TCP/IP Protocols
• Support Auto Negotiation (Full-duplex and half duplex)
• AT commands used for advanced configuration.
• 3.3V TTL UART
• Low power
• RoHS
