FOB Price
Get Latest Price0.1 ~ 0.5 USD / ( Negotiable )
|1 Minimum Order
Country:
China
Model No:
LM-01
FOB Price:
0.1 ~ 0.5 USD / ( Negotiable ) Get Latest Price
Place of Origin:
-
Price for Minimum Order:
0.1
Minimum Order Quantity:
1
Packaging Detail:
Inner vacuum packing, outer standard carton box , special packages for your pcb and pcba are allowed.
Delivery Time:
16-16 working days after comfirm your payment
Supplying Ability:
1000000
Payment Type:
T/T, L/C, D/A, D/P, Western Union, Money Gram, PayPal
Product Group :
Contact Person Sunny
Shenzhen, Guangdong
|

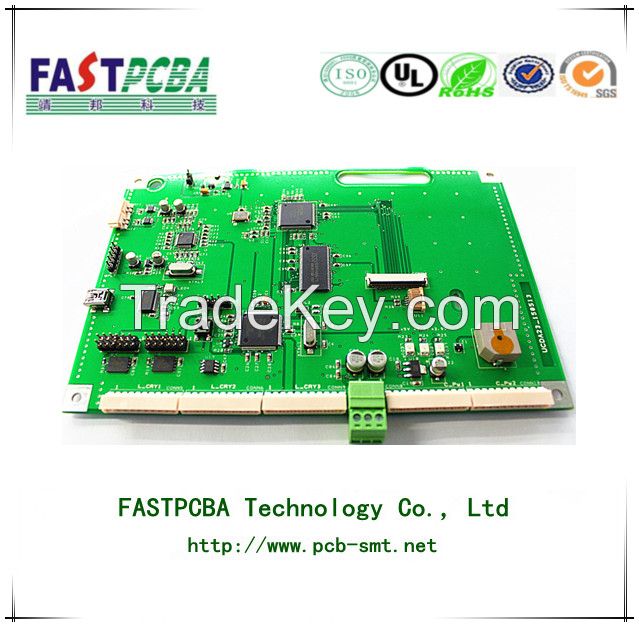

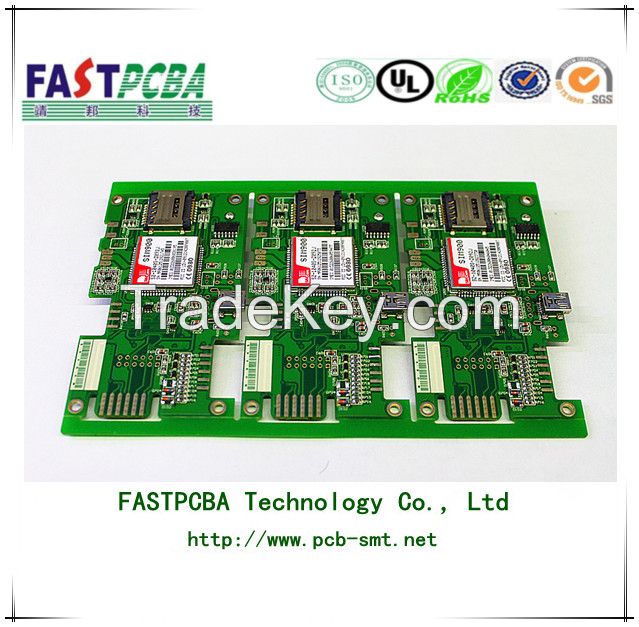

Fastpcba technology high quality pcb factory and pcba oem in china |
||
|
Article |
Description |
Capability |
|
Material |
Laminate materials |
FR4,Alu,CEM3,Taconic,Rogers |
|
Board cutting |
Number of layers |
1-58 |
|
Min. Thickness for inner ayers (Cu thickness are excluded) |
0.003(0.07mm) |
|
|
Board thickness |
Standard |
0.04-0.16±10%(0.1-4mm±10%) |
|
Min. |
Single/Double layer: 0.008±0.004 |
|
|
4 layer: 0.01±0.008 |
||
|
8 layer: 0.01±0.008 |
||
|
Bow and twist |
< 7/1000 |
|
|
Copper weight |
Outer Cu weight |
0.5-4 oz |
|
Inner Cu weight |
0.5-3 oz |
|
|
Drilling |
Min size |
0.0078 (0.2mm) |
|
Drill deviation |
±0.002 (0.05mm) |
|
|
PTH hole tolerance |
±0.002 (0.005mm) |
|
|
NPTH hole tolerance |
±0.002 (0.005mm) |
|
|
Plating |
Min hole size |
0.0008 (0.02mm) |
|
Aspect ratio |
20 (5:1) |
|
|
Solder mask |
Color |
Green,white,black,red,yellow,blue... |
|
Min solder mask clearanace |
0.003 (0.07mm) |
|
|
Thickness |
0.0005-0.0007(0.012-0.017mm) |
|
|
Silkscreen |
Color |
White,black,yellow,red,blue... |
|
Min size |
0.006 (0.15mm) |
|
|
E-test |
Flying Probe Tester |
Y |
|
Controlled Impedance |
Tolerance |
±10% |
|
Impedance tester |
Tektronix TDS8200 |
|
|
Surface Finish |
HASL,ENIG,immersion silver,immersion tin,OSP... |
|
Our Contacts
Mobile phone/whatsapp: +86 159 8957 2498
QQ: 1540299121
Wechat:liumengliang-2010
| Country: | China |
| Model No: | LM-01 |
| FOB Price: | 0.1 ~ 0.5 / ( Negotiable ) Get Latest Price |
| Place of Origin: | - |
| Price for Minimum Order: | 0.1 |
| Minimum Order Quantity: | 1 |
| Packaging Detail: | Inner vacuum packing, outer standard carton box , special packages for your pcb and pcba are allowed. |
| Delivery Time: | 16-16 working days after comfirm your payment |
| Supplying Ability: | 1000000 |
| Payment Type: | T/T, L/C, D/A, D/P, Western Union, Money Gram, PayPal |
| Product Group : | pcb and pcba |
