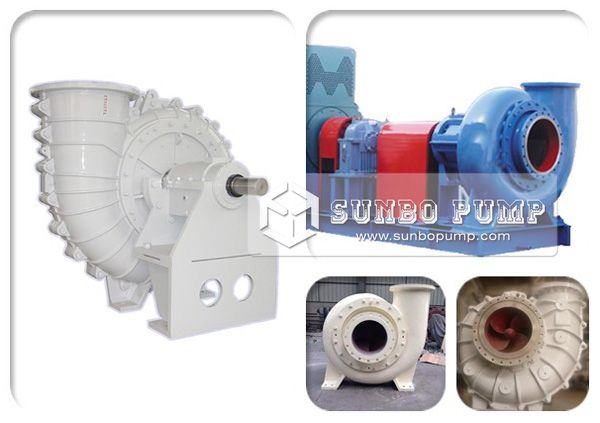

FGD Pump Fule Gas Desulphurization Recirculation Pump

Product Description

FGD pump is single stage, single suction horizontal centrifugal pump. It is mainly used as the circulating pump for absorption tower in FGD system in Power Plant. The wet parts are designed with the CFD Fluid Simulating Analysis Technology to ensure its high-efficiency operation. The position of impeller in the pump internal can be changed by adjusting the bearing assembly, which can ensure the pump to run efficiently. The pump design adopts back pull-out structure, which is easy to disassemble and without need to remove the inlet and outlet pipeline.

Features:

1. The bearing at pump end is double-row taper roller bearing, and bearing at drive end is cylindrical roller bearing. The bearings are lubricated with oil to longer the service time.

2. The special integrated mechanical seal design is suitable to Thermal Power Plant Fuel Gas Desulphurization process.

3. Frame plate, cover plate and joint plate are made of ductile cast iron to maximum the pressure-loaded bearing capacity.

4. Material of the FGD pump mainly is duplex phase stainless white iron and natural rubber. The duplex phase stainless white iron also names as A49, 28% Cr, corrosion resistant suitable for low pH (less than 4) duties, where erosive wear is also a problem, ensure pump long-life operation term.

Specifications:



a) Size: DN350-DN1000mm
b) Flow:1500-14000m3/hr
c) Head:12-32 m
d) Rotate speed:1450-2900r/min
e) Motor power:2.2-55 KW


Production Overview:

The pump restricting parts adopt the advanced flow simulation technology to guarantee the reliable pump design and the high operating efficiency. The anti-corrosion & anti-wear metal and rubber materials which are specifically developed for FGD pumps have been proved by the practice that they can ensure the long-life pump operation. Through adjusting the bearing components to change the impeller position in the pump chamber all-time high-efficient operation of the pump can be achieved. The pump is characterized by the back knock-down structure which is simple and advanced. It is easy to maintain and repair and it is on need dismantling inlet and outlet water pipes. The containerized mechanical seal specially used for the desulphurization process is adopted and its operation is reliable.








 Application:  They are mainly used to handle slurry with smoke in absorption tower of electric power station,that is thermal power plant FGD (Flue Gas Desulfurization) Project.













Country:	China
Model No:	800TL
FOB Price:	3000 ~ 20000 / Set ( Negotiable ) (Negotiable) Get Latest Price
Place of Origin:	-
Price for Minimum Order:	3000 per Set
Minimum Order Quantity:	1 Set
Packaging Detail:	Wooden Crate
Delivery Time:	20-25 days
Supplying Ability:	25000 Set per Year
Payment Type:	PayPal, Money Gram, Western Union, D/P, D/A, L/C, T/T
Product Group :	Fuel Gas Desulfurization Pump (FGD pump)
