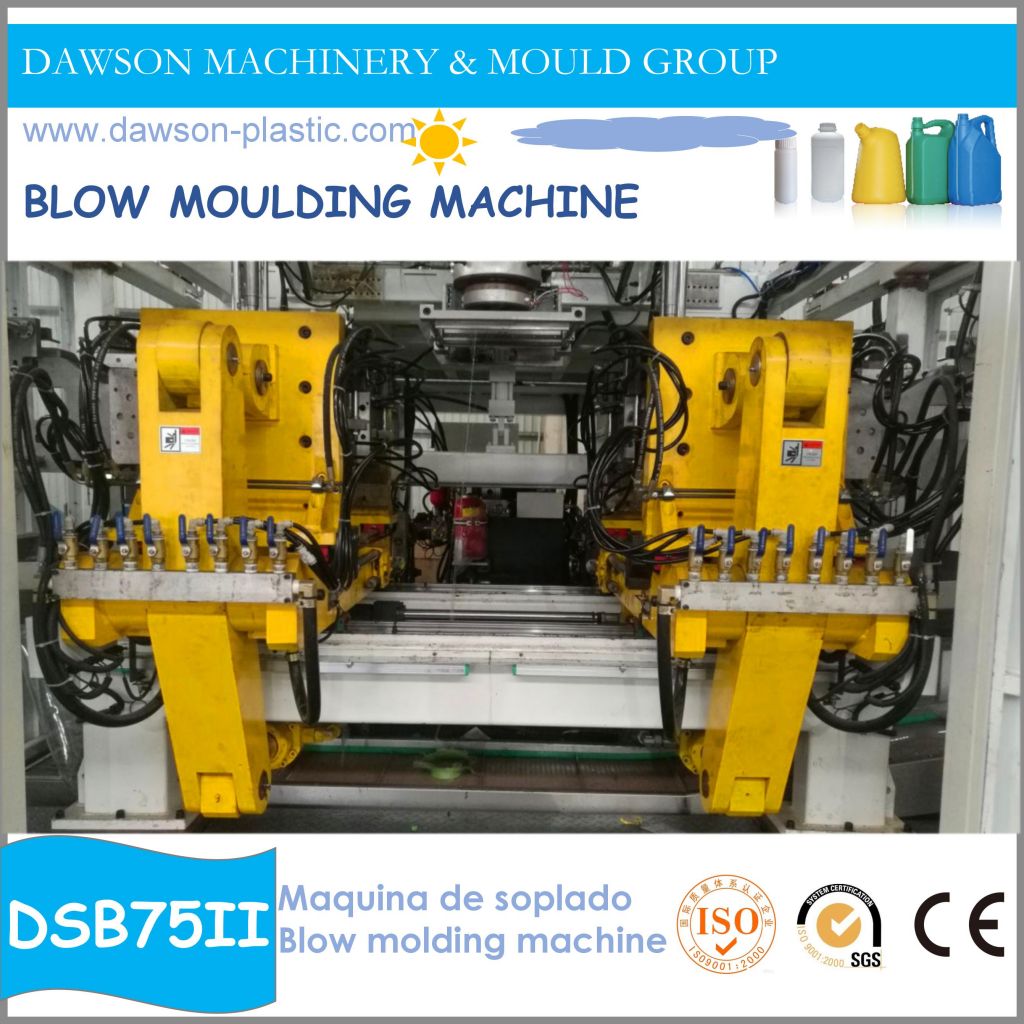

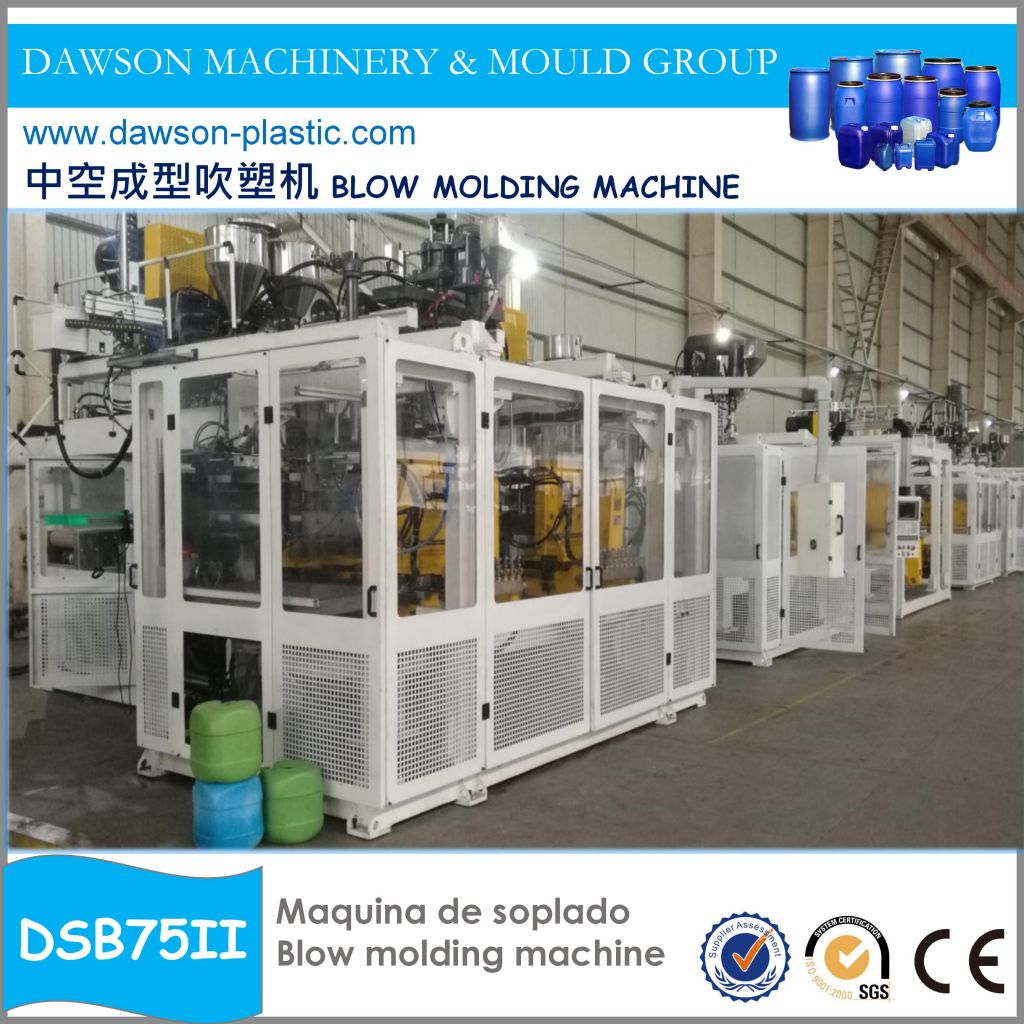

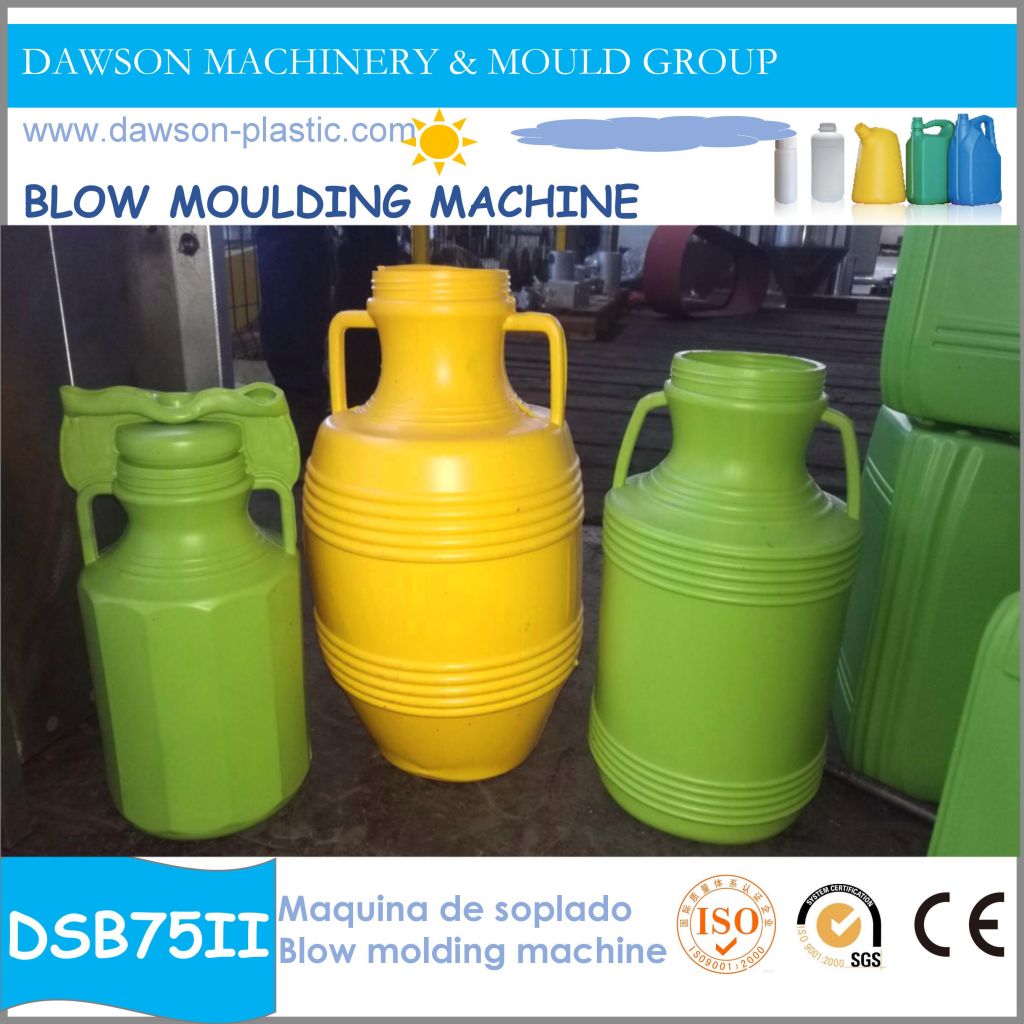

This type of blow molding machine DSB*5II can produce plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 8L. The machine is especially designed for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available.Double station single die head design, very easy to operate and maintenance.)Most components of the blow moulding machine are from famous world brand.Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.

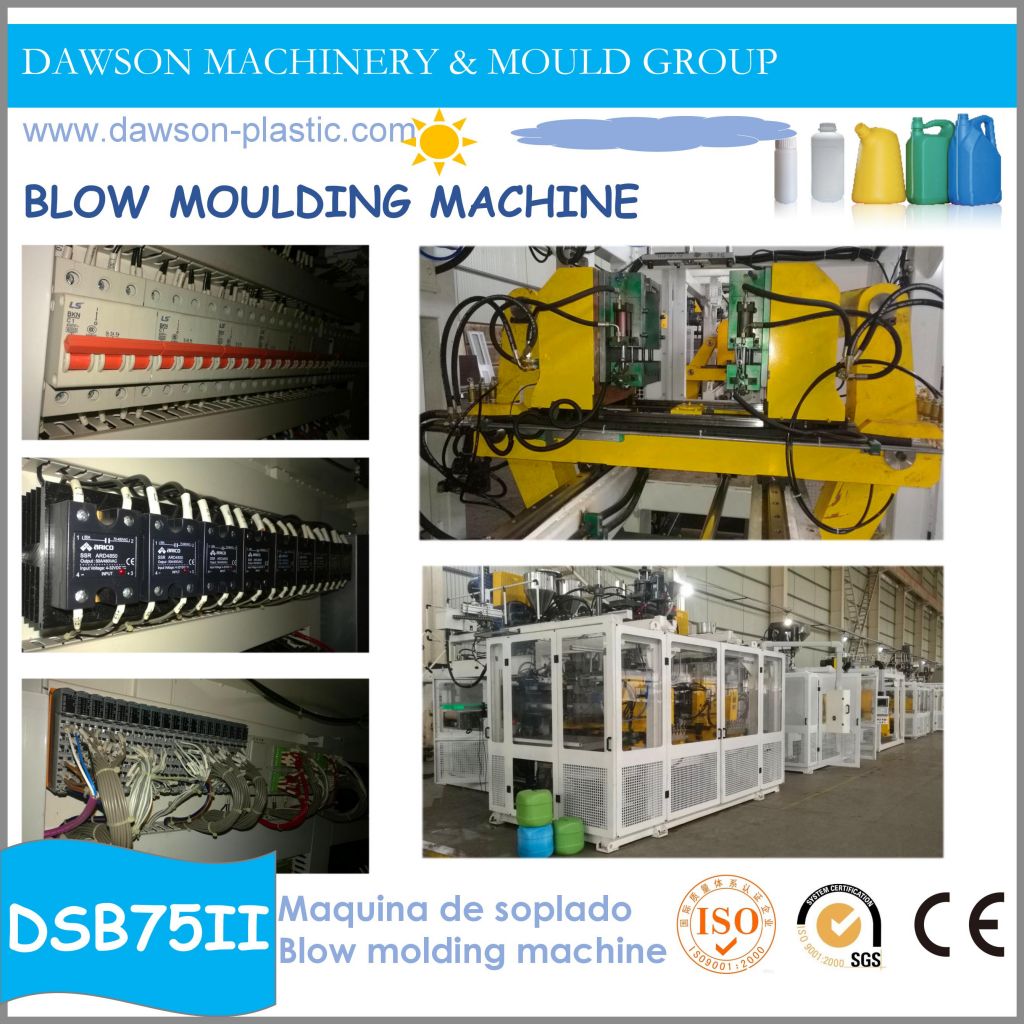

| electronic parts |
|
| Name | Trader |
| Micro computer control system | Japanese MITSUBISHI |
| Temperature Controller | TAIWAN YANHUA PID |
| Auxiliary Relay | OMRON |
| contactor | Schneider from France |
| Electric motor | Three phase **0V or **0V |
| Power Source | TAIWAN MEANWELL |
| Transducer | TAIDA FROM CHINA |
| hydraulic parts |
|
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |
| Valve | TAIWAN JINSHUN |
| Oil pump and connection | TAIWAN JINSHUN |
| Sealed part | HALLITE |
| air control system |
|
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | FESTO |
| Max. Product volume | 8 liters |
| Output capacity | **0pcs/h |
| Screw diameter | *5mm |
| Screw L/D ratio | *4 L/D |
| Screw drive power | *2 KW |
| Screw heating capacity | 6 KW |
| No.of heating zone | 4 zones |
| Output of HDPE | **0KG/H |
| Oil pump drive power | *1 KW |
| Clamping force | *8KN |
| Max.size of mold | ******0mm |
| Mold stroke | **0 X **0mm |
| Max.die diameter | **0mm |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.7 M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | *0 L/MIN |
| Size of Machine | 3.6x1.8x2.8m |
| Weight of machine | 6.3 ton |
