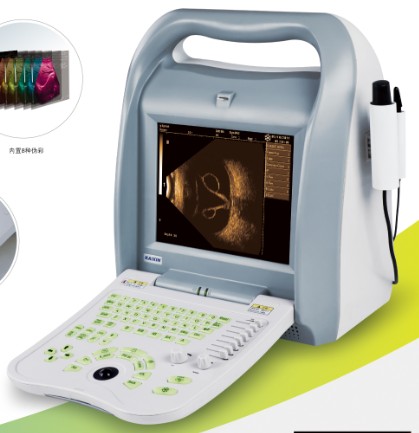

Full Digital Ophthalmic Ultrasound Scanner ODU 8

Product Description

GENERAL FUNCTIONS
1. Monitor Display:hospital name, patient name, age, sex, L/R eye,etc.
2. Preset: system,IOL, DICOM,Password, Software upgrade
3. Patient's info: name, age, sex, ID
4. Display: B,B/B,4B,B/A,A five-point measure,A single point measure
5. TGC: 8;  Gain : *****0dB ;dynamic range: ******0db,

Report print

USB2.0 to support U disk(file manipulation, software upgrade, one -key storage, etc)
Internal D disk(4GB)

A-scan

1. SPECIFICATION
Measure Range: A Five-point : ****6mm,A single-point: ****2mm
Accuracy: 0.*5mm,
Measure:ACD, Lens, Vitreous, CCT, AXL(immersion mode)
Eye type:Normal/Aphakic/ Dense Catract/ Manual
Measure mode: Immersion and contact, manual and auto measurement

Calculation:std. Deviation, Average, auto average measurement of eight groups,result correction,
Measurement method: A five-point measurement, A single-point measurement
IOL formulas:SRK-II,SRK-T,BINKHORST,HOLLADAY,HOFFER-Q,HAIGIS,


Magnification: 1.0,2.0,4.0,
Depth:****6mm , delayed depth: ****6mm

B-scan
1. specification
Imaging technique: full digital synthetic aperture beamforming
Gray scale :**6,
Frame Rate:*0frames/s,
Scan mode:High accuracy stepping Sector , motor-powered
Scan Angle:*3degree,
Depth:****8mm
Resolution:vertical less than 0.2mm  lateral less than 0.4
Post-processing, 8
Delayed depth: *****2mm
Fractionated magnification
Up/down, L/R image turning,
Image storage: more than *0,**0 images permanently
Cine loop:**6,

color options:8
2. Measurement(various callipers)
Distance, circumference, volume, angle , histogram, sectional view, etc.

INTERFACE AC**0/**0;  *0/*0Hz;  SVGA;  DICOM3.0;  foot switch
Optional Accessories Laser Printer, Video recorder, Foot Switch
N.T.:8Kg
