GD-10 DC Multi-function Geo-electrical RES/IP System

Product Description

GD**0 system is a new developed geophysical exploration DC Res/IP system with revolutionary breakthroughs. At the early design, Geomative has always uphold the three philosophies:


Face to Filed: improve field working efficiency
Face to Test: multi-function & multi-parameters, real-time data evaluation
Face to User: affordable, easy operation, low maintenance

Face to Filed

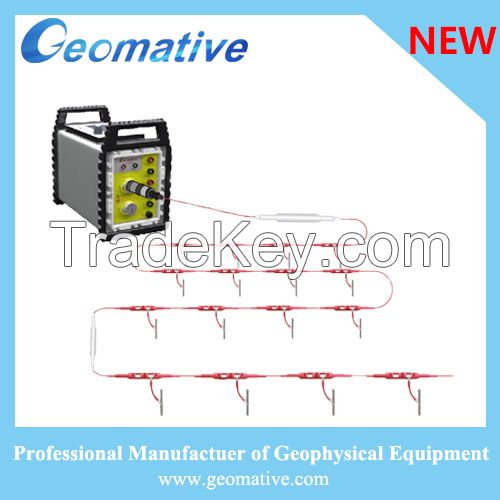

1. The New Sublevel Centralized Cable System
It is designed with high novelty, including all the advantages of the existing distributed and centralized cable system in 2D/3D Res/IP imaging survey, which features light, low cost, easy operation.
The bi-directions design in multi-electrode cable and cable leader enable the innovation on the connection of electrodes and ensure multi-function in one unit.


2. 2D/3D rolling measurement
2D/3D rolling measurement enable limited cable for long-section, measuring point is not repeated, extremely high efficiency.

3. Geomative Studio Software
The software of GD**0 Multi-function DC Geo-electrical Res/IP System includes two parts: the embedded software UI in GD**0 mainframe and Geomative Studio on PC. The two parts combined as a new way is available to break through the limits of tradition system, enable the system with powerful software.

Geomative Studio is the whole data management platform, including device management, project management and script management.
  Device management: manage device according to online device and offline device;
  Project/Data management: manage measuring project according to different levels as project-zone-task;
  Script management: classify manage according to 1D script, 2D script, 3D script, which can edit advance and store in mainframe by USB port, then recall during filed work onsite.


4. Optimized Accessories
All the accessories of GD**0 system are optimized carefully, as star-like electrode, connector of cable, BP***5, all will be helpful to improve the field working efficiency.
