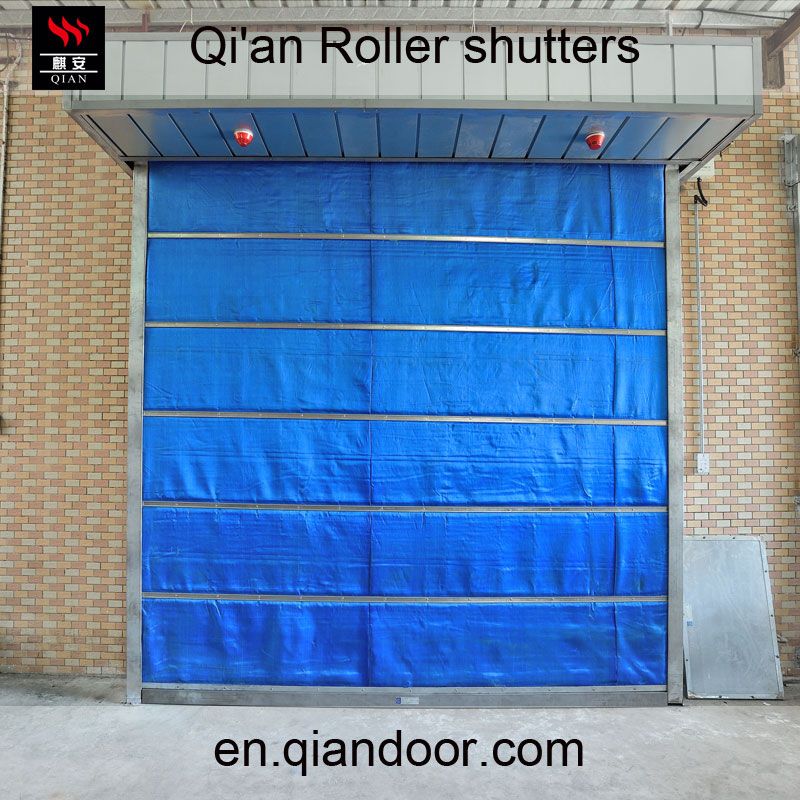

Glass Fiber Curtain FIre Roller Shutter

Product Description

The glass fiber curtain fire roller shutter can resist fire for more than three hours like the steel roller shutter. In comparison, the curtain is much lighter and complete so it has an advantage of weight over the steel roller shutter. It is easy to be installed and operated. It is space-saving, not limited by the size of wall opening. The average temperature rise is no higher than **0℃ and maximum temperature rise is no higher than **0℃.
Application: Shopping mall, warehouse, basement garage, departure lounge
Curtain: inorganic glass fiber, composed of four layers of colored inorganic fireproof fabrics, connected with steel slats
Structure of Curtain: 0.*2mm glass fiber+ 2mm fireproof fabric + *5mm fire blanket + 0.*2m radiation-proof fabric
Composition: a curtain, steel guide rails, a door head, an overhead box, a motor and a control box
Classification:
-Single-rail-single-curtain roller shutter (ordinary type)
-Double-rail-double-curtain roller shutter (special type)
Characteristics:
1. Fire-rated, colored, beautiful;
2. Soft, high tensile strength, corrosion-resistant, moisture-resistant;
3. Light (3.5kg/㎡), low load, low noise, flexible;
4. Low temperature rise on the surface.
Dimension (customized or ref. as follow):
Thickness of Curtain: *8mm
Distance between 2 curtains: **0mm
Slats: *5mm X 5mm X 1.5mm
Distance between Slats: **0mm
Dimension of Guide Rail: *0mm X *0mm X 1.5mm
Dimension of Bottom Rail: *5mm X *0mm X 1.5mm
End Bracket: Master: **0x**0x4mm; auxiliary: **0x**0x4mm
Service: OEM, ODM
