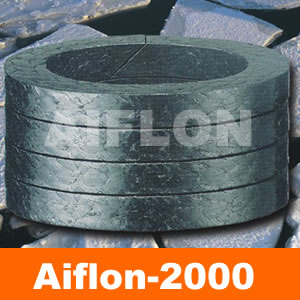

Graphite Packing

Product Description

Specification: ***0K*-Flexible Packing with Corrosion Inhibitor Corrosion inhibitor acts as a sacrificial anode to protect the valve stem and the stuffing box. Other reinforcement materials are also available. Glass fiber*******-High strength, lower cost Carbon fiber*****-Less weight loss APPLICATION : ***0 & ***0K is a multi-service packing capable of a wide variety of uses throughout a plant. It can be used in valves, pumps, expansion joints, mixers and agitators in high-pressure, high-temperature hostile environments of hydrocarbon processing, pulp and paper, power stations, refineries and industries where effective sealing is vital. Precaution: in oxidizing environment. Recommendation: Use preferably with Aiflon ***2 high carbon fiber anti-extrusion packing rings. SERVICE LIMITS: Rotating Reciprocating Valves Pressure *0 Bar **0Bar **0Bar- Shaft speed *0m/s 2m/s 2m/s Density 1.0~1.3g/cm3 (*5% for ***0K) Temperature ***0~****0C(****0C with steam) PH range 0~*4 FORMS OF SUPPLY: in coils of 2 to 5 kg, other package on request. as packing rings**-R***0,R***0K etc. as precut length Other items in : - Compression Packing - Graphite Packing Inconel reinforced Graphite packing (with corrosion inhibitor) Graphite packing with PTFE impregnation Graphite packing with carbon fiber corners Graphite packing with (G)PTFE corners Graphite packing wrapped with Inconel wire & mesh Inconel reinforced carbon fiber packing with graphite core Die-formed graphite Ring
