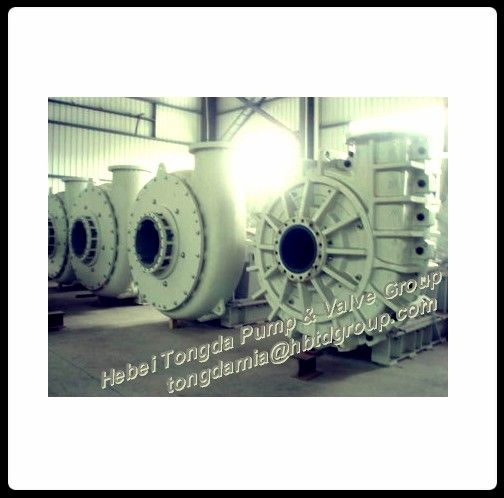

Heavy Coal Slurry Pump for Mining

Product Description

Heavy Coal Slurry Pump For Mine

ZJ series centrifugal pumps is horizontal axial-flow single stage single suctio pump. Adopting solid-liquid two-phase flow velocity ratio, it can convert the energy between sold and liquid sufficiently in the pump casting; also improves erosion of the flowing parts. With advanced water-power designation, reasonable structure and high corrosion resistant materials, Tongda pumps have high-efficiency, good-cavitation-capability, long-lifespan, work-reliable advantages, etc.

Structure:


1.Pump head—Double-case pump is vertical split, the discharge can be installed at 8 different positions with an interval of *5°.
2. Bracket—Horizontal split or cantilever
3. Shaft seal for chosen—Expeller seal and packing seal;Packing seal;Mechanical seal
4. Driving—Directly driven;Directly driven via hydraulic coupling;Belt driven

Features:


1.Size range (discharge)
*0mm~**0mm
2.Capacity
Up to ***9m³/h
3. Heads
Up to **3m
4. Pressure
To ***0Kpa

Meaning of Serial No.

For example: **0 ZJ I A *0 (*8)
**0: outlet diameter
ZJ: slurry pump
I: single stage pump
A: No. of impeller’s vanes (A for 5pcs,B for 4pcs,C for 3pcs,D for 2pcs,E for 1pc, F for 6pcs,G for 7pcs)
*0: Diameter of impeller (cm)
*8: Actual diameter after cutting
