Hidden frame glass curtain wall

Product Description

1) Surface material
Use 6**2A*6 tempered insulating glass.

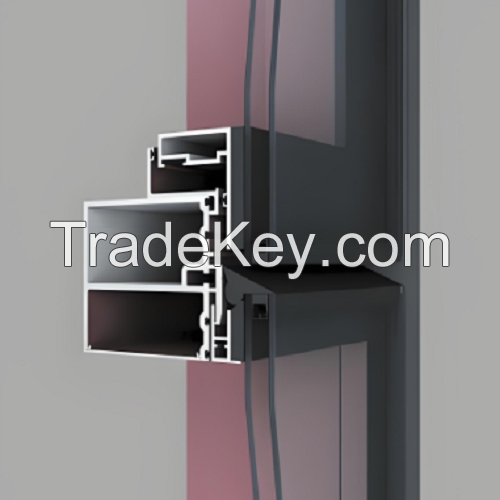

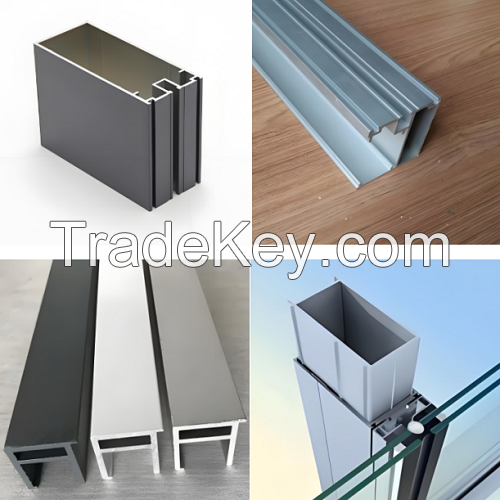

2) Keel
Aluminum profiles are made of ****-T5 aluminum alloy profiles, columns are made of **0**0 aluminum alloy columns, and beams are made of *0**0 series. Aluminum profiles are powder-coated for indoor and outdoor use; invisible profiles are anodized; beams and columns are connected with M6 stainless steel bolts to meet the requirements of temperature difference deformation and building plane deformation to the maximum extent.

3) Opening form
Use external top-hung windows, the opening angle is not more than *0°, the opening distance is not more than **0mm, whichever is smaller;

4) Sealing strips
Use EPDM strips, which have high impact elasticity, small compression permanent deformation, and excellent acid, alkali, wear resistance and insulation.

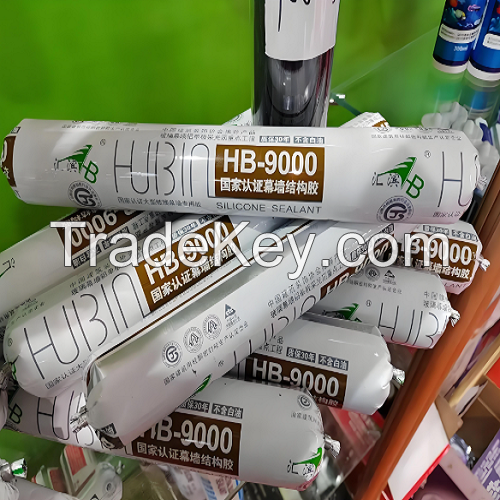

5) Curtain wall sealant
Use neutral weather-resistant silicone sealant for construction;

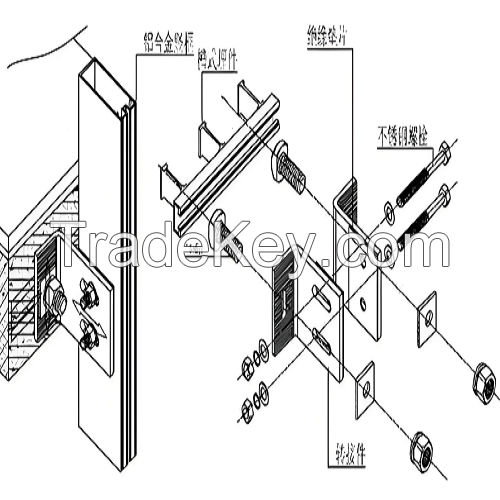

6) Adapter
Use angle steel adapter, the surface is hot-dip galvanized to meet the anti-corrosion requirements; the adapter and the main keel are connected with M*2 bolts, the connection is firm and reliable, and the adapter is provided with long holes to meet the three-dimensional adjustment of the space.

7) Embedded parts selection
The embedded parts are hot-dip galvanized embedded parts, and the size of the embedded parts is detailed in the curtain wall drawings;
