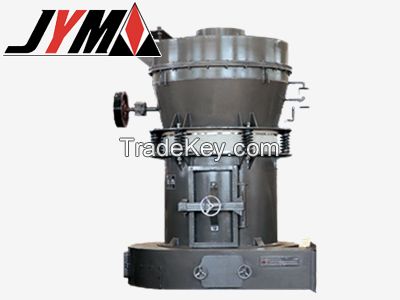

This mill assimilates the advanced technology from Germany and
Japan. It is derived from the high pressure grinder mill to produce
the fine powder particularly. This high pressure micronizer
succeeded in solving the traditional problem of classification. Due
to this advantage, it is quite popular in the industries like
mining, metallurgy, chemical industry, and construction materials
where there are big demands for the fine powder. And the fineness
of the powder produced by the micronizer can be *******0 meshes.
This machines is good at grinding the nonflammable and
non-explosive material of the hardness below 9.3 Mohs such as the
barite, the limestone, the kaolin and the slag.
The high pressure micronizer has the same principle as the Raymond
mill. There are highly compressed springs installed on the grinder
part, which improves the compression between rollers and the ring
by **0%. When the rollers are abraded to a certain level, we can
try to keep the constant compression by changing the length of the
spring in order to have a stable quality. In addition, all of the
parts have be upgraded technically to maximize the contact area
between the roller and the ring so as to avoid the small particles
can be grinded appropriately due to sags and crests. Based on the
simulation and calculation of the Bernoulli equation in
aerodynamics, we decided to change the geometrical shape, the angle
and the relative gap of the classification blade for a better
classification.
1.The high pressure micronizer has a wider application field than
the air flow mill.
2.Compared with other mills, it can have a bigger compression,
which could be *******0kg.
3.It is quite energy efficient; it only consumes 1/3 of the air
flow mill with the same outputs and fineness
4.It costs only a little but it could make a big profit. With the
same fineness and outputs, it only costs 1/8 of the air flow
mill.
5.It could handle relatively big particles, and the finished
products can be 6.5 um in fineness for the first time.
| Model | YGM***6 | YGM***7 | YGM***1 | |
| Roller | No. | 3 | 3 | 4 |
| Diameter(mm) | **0 | **0 | **0 | |
| Height(mm) | **0 | **0 | **0 | |
| Ring | Diameter(mm) | **0 | **0 | **0 |
| Height(mm) | **0 | **0 | **0 | |
| Feeding size(mm) | <*5 | <*5 | <*5 | |
| Fineness of product(mm) | 0.****0.**5 | 0.****0.**5 | 0.****0.**5 | |
| Capacity(kg/h) | *****0 | *****0 | *******0 | |
| Power | Main | *8.5 | *2 | *7 |
| Classifier | 7.5 | 7.5 | 7.5 | |
| Overall | Longth(mm) | ***0 | ***0 | ***0 |
| Width(mm) | ***0 | ***0 | ***0 | |
| Height(mm) | ***0 | ***0 | ***0 | |
