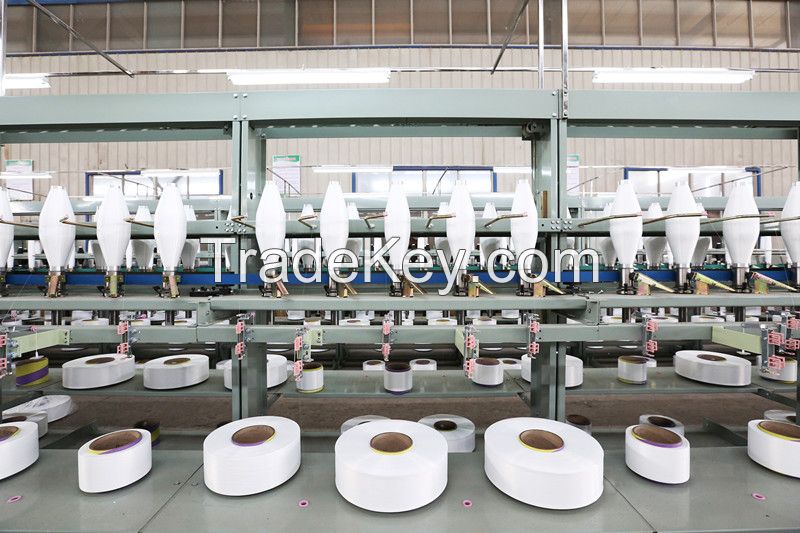

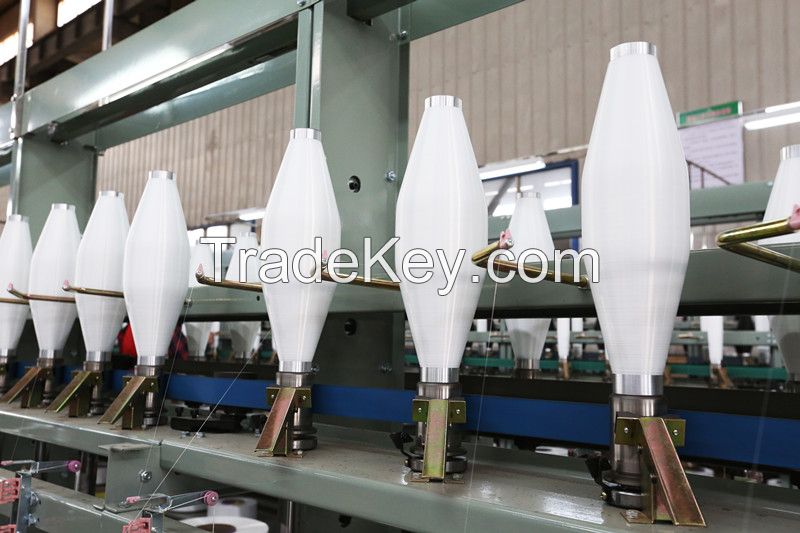

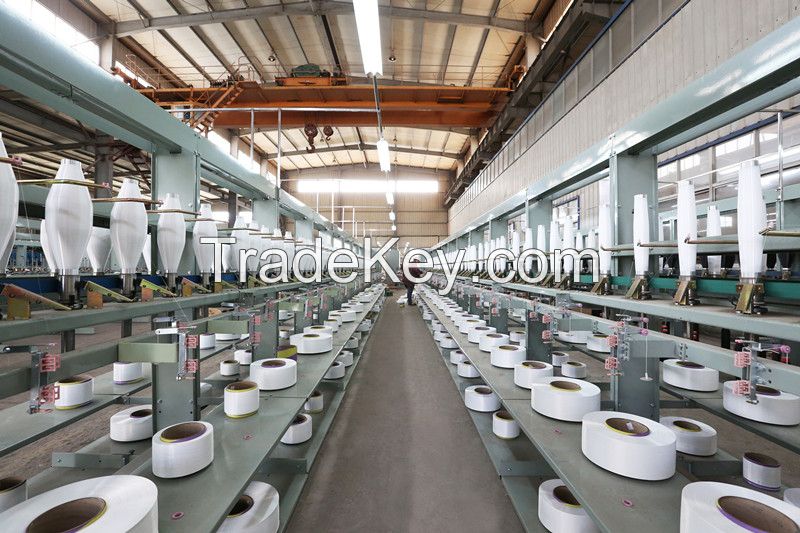

High Speed Computer-Based Spooler

Product Description

Application:

Chemical fiber yarns, such as DTY, POY, HOY, FDY etc (*0D***0D)



Main features:

This machine is useful to reel raw yarns in different shapes into bi-conical bobbin yarn with definite specifications for twisting on diverse home-made and abroad-introduced two-for-one twisting machines. It is indispensable pre-job supporting equipment for two-for-one twisting machines.



Main Specifications:

 1 Max. Spindle Speed                 ***0 r/min

 2 Spindle Distance                      **0mm

 3 Winding-up Speed                   ******0m/min

 4 Reeling Linear Direction:          S or Z way

 5 Max. Winding-up Size              Φ*2,L******0 mm

 6 Max. Winding-up Diameter       Φ**0 mm

 7 Max. Winding-up Capacity        1.2 Kg

 8 Motor Power Main motor:          3.7Kw;    Horizontal motor:0.*5Kw

 9 Outside Diameter                       (*0 Spindle) ***0x***0x***0

*0 Winding-up Method                   Warp, Weft,Combined, Bottle

*1 Max. Unwinding Height             **0mm

*2 Unwinding Type                        Cylindrical, Conical, Pineapple type

*3 Tensioner                                  Synchronous comb tensioner

*4 Up-and-down Speed                 ****5mm/s

*5 Spindle Transmission Method         Tangential Belt Rotates in tangential direction

*6 Up-and-down Control                      Inverter Control

*7 Winding Bobbin Fixed Method        Elastic Tension

For more information please contact Ms. Carol Tan by
mobile/ whatsapp/ wechat: **********9
skype: caroltjsen
