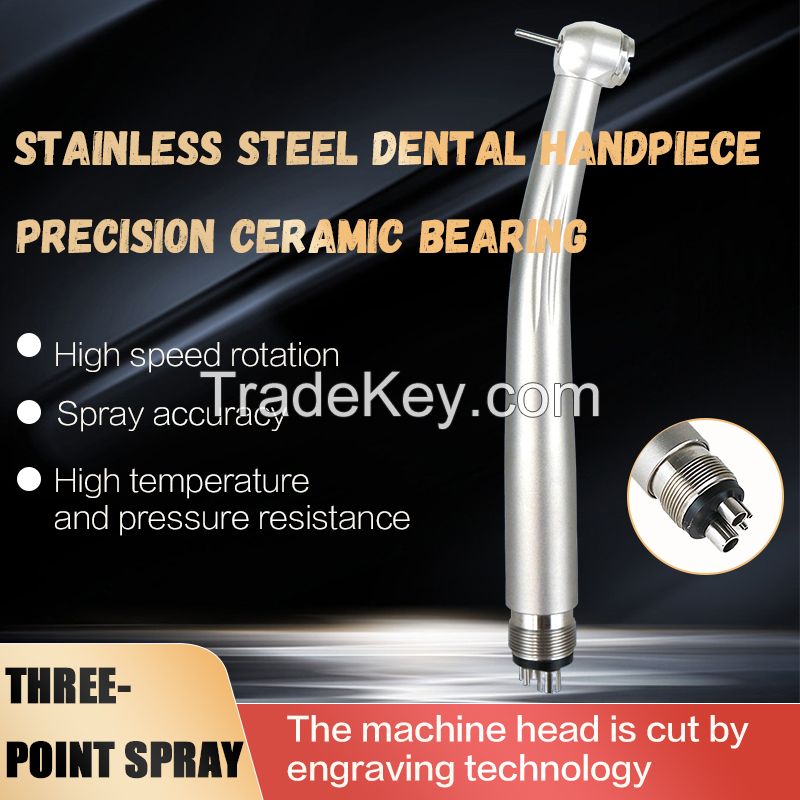

High-Speed Dental Handpiece with LED Light for Clinic Oral Turbine Dental Drill

Product Description

Usage Instructions

1. Removing the Old Cartridge

a. Insert the standard rod (included) into the head hole of the cartridge chuck.
b. Use the end cap wrench to grip the end cap and rotate it counterclockwise to remove.
c. Push the standard rod along the cartridge direction to eject the old cartridge.

2. Installing the New Cartridge

a. Insert the needle end of the cartridge into the handpiece hole.
b. Align the positioning ball of the cartridge with the handpieces positioning groove, then press down gently.
c. Place the end cap onto the handpiece threads and hand-tighten, then secure with the wrench.



Technical Specifications

1. Large Head

   • Working Air Pressure: 0.*5 MPa

   • Rotation Speed: >**0,**0 RPM

   • Head Dimensions: Diameter *2.5 mm × Height *4.5 mm

2. Small Head

   • Working Air Pressure: 0.*5 MPa

   • Rotation Speed: >**0,**0 RPM

   • Head Dimensions:

     • Diameter *0.6 mm × Height *3.5 mm

     • Diameter *1.2 mm × Height *3.5 mm

3. Built-in Generator

   • Working Air Pressure: 0.*5 MPa

   • Rotation Speed: *0,**0 RPM

4. Chuck Clamping Force

   • Static: ≥*5 N

   • Dynamic: ≥*0 N (Self-tightening during rotation)

5. Noise Level

   • ≤*5 dB

6. Net Weight

   • Fiber Optic Handpiece: ***3 g

   • Standard Handpiece: ***0 g

   • N-type Quick Connector: ***7 g

   • K-type Quick Connector: ***7 g

7. Compatible Burs

   • Shank Diameter: 1.***1.**8 mm

   • Length: ***3 mm
