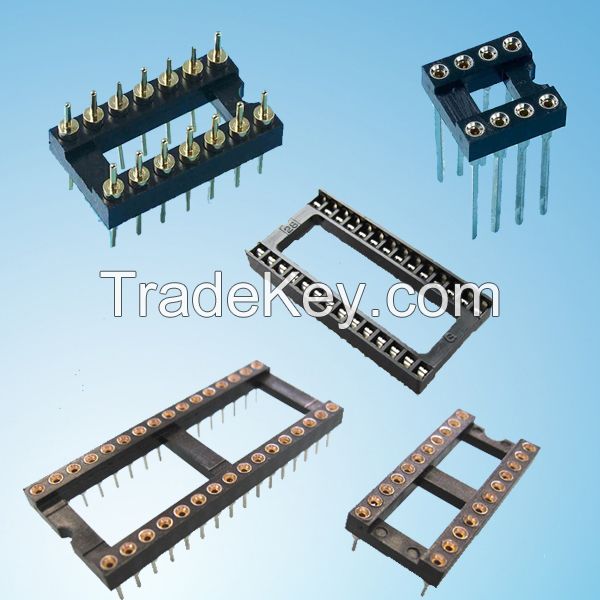

As for IC sockets
1.The shape of these ic sockets are
dual-in-line open frame type;

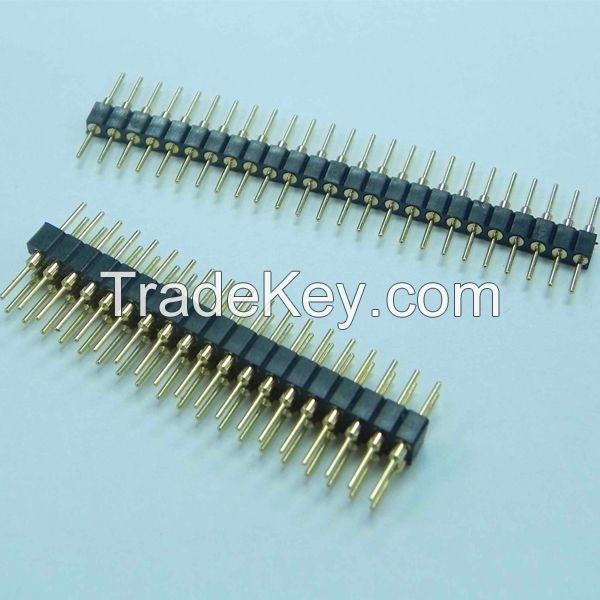

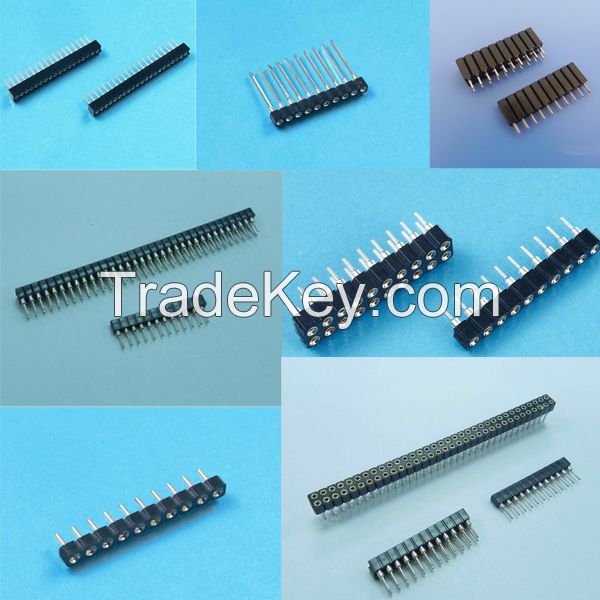

2.For sip socket,single row or double row is available and 1.*7mm
1.**8mm 2mm 2.*4mm pitch optional;
3.Male header have 1.**8mm and 2.*4mm pitch with varieties pin
length for selection
**0 series
Application and Features
1. The dual in line open frame
version ic socket connector is the most common type;
2. The open type body design gives better access to cleaning
and inspections for PCB board and better air cooling;
3. Pin design absolutely prevents **0% of the solder wicking
and flux entrapment;
4. Best quality with ROHS,ISO***1:***8,ISO****1:***4
compliant;
5. Ic
socket 6,8,*0,*4,*6,*8,*0,*2,*4,*8,*2,*6,*0,*2,*8,*0,*2,*4
pins available;
6. OEM/ODM is welcomed
Technical data
|
Electrical |
current rating |
3.0amps/contact max |
|
contact resistance |
≤ 4mΩ/contact |
|
|
insulation resistance |
≥ ***0MΩ at V=**0V |
|
|
operating voltage |
*0V AC/DC |
|
|
Mechanical |
average insertion force with steel pin of Φ0.*3mm |
≤**0g |
|
average withdrawal force with steel pin of Φ0.*3mm |
≥*5g |
|
|
mechanical life cycle |
**0 minimum |
|
|
operating temperature |
**5~***5 ℃ |
|
|
soldering temperature |
***0 ℃, *0s max |
|
|
Material |
pin(outer sleeve) |
brass,machined |
|
clip(4 finger contact) |
beryllium copper or phosphor bronze |
|
|
plating(outer sleeve) |
tin and gold |
|
|
plating(contact) |
nickel gold and tin plating(details please see model table) |
|
|
insulator body(black) |
glass filled polyester UL*4 V*0 |
If you need this type or have any other requirements pls do not hesitate to contact us for more details.
