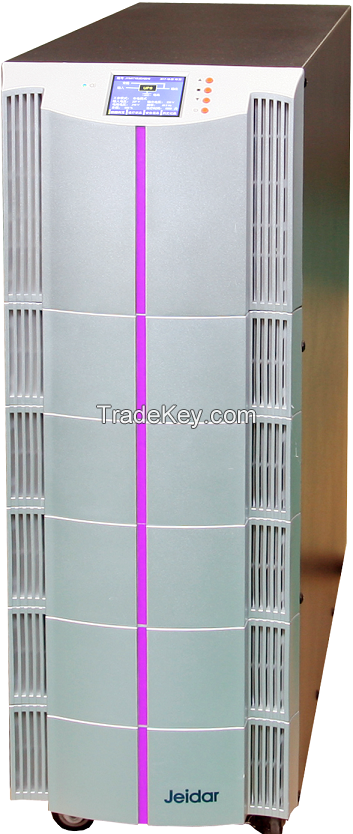

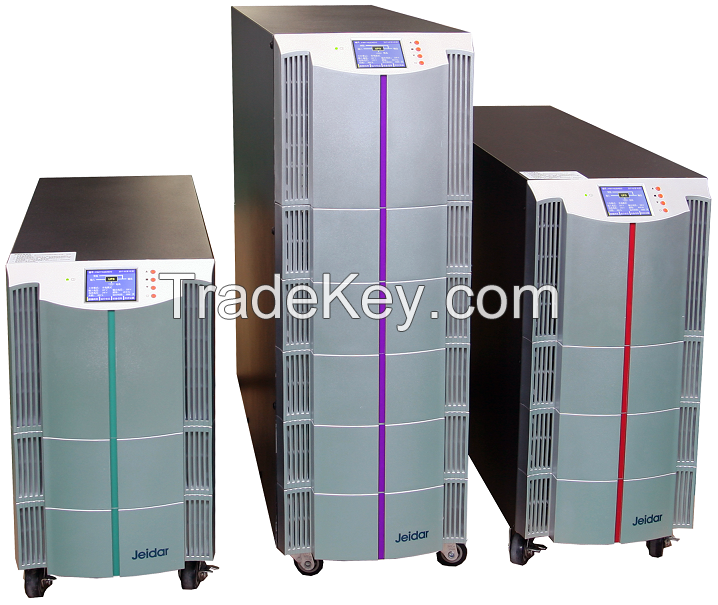

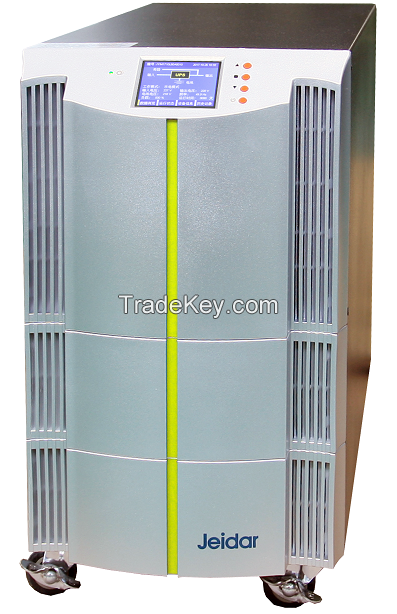

Jeidar JY Series 10-40KVA 3/1 Phase LF Online Transformer Based UPS External Battery Type

Product Description

1. System Introduction

 JY Series is a small medium capacity true double conversion online UPS with DSP control. It has 1/1 or 3/1 phase structures and 1*1 parallel redundant function. Isolated transformer and the international advanced SMD design, which has outstanding stability and high reliability. Isolated transformer effectively suppresses and isolates utility surge voltage and impacts to load devices, which greatly protects load device with good synchronization with UPS systems.

2. System Features

2.1 High Performance Index

â—† Advanced SCR Rectifier and IGBT Inverter Technology. Online Single Phase Input/Output double conversion structure to adapt **0 V and *0/*0 Hz Mains Grid Supply Systems.

◆ Wide Input Range from **6 Vac to **5Vac and *0/*0Hz ± 5%. High Adaptive Capacity to Mains Grid Supply System and Different kind of Loads. High Overload Ability *- surge current protection technology can carry the sudden impact due to 0% to **0% load immediately without transfer to bypass.

â—† Overall Efficiency *5%. *8% under ECO Mode.

â—† Full-Digitized Non-master slave parallel redundancy technology.

◆ Friendly and Intuitive User Interface. Large Color Dot-matrix LCD+LED Screen with multi-functional keyboard to check system parameters, such as fault histories, operational statuses, self-diagnosis periodically discharge settings, etc.

2.2 Safe and Reliable

◆ MCU control to operate all power conversion sessions during the operations, which has higher system reliability than traditional UPS systems.

â—† Output Isolated Transformer Built-in. It can reduce impacts and interferences from Load Harmonic Wave Current and N-Wire Voltage.

  ◆ *0% of system components are from international brands. All devices has been aged and fully tested for at least *4 hours before leaving the factory.

3. Rich Optional Accessories

JY Series UPS can use SNMP Network Adapter, RS**5/Dry Contact, USB port, and EPO function to build up a remote control and monitoring system.

4. Application Type

JY Series UPS is designed for small and medium important equipment systems, such as small and medium commercial network equipment, small data center, important medical equipment, manufacturing process control system and communication equipment.
