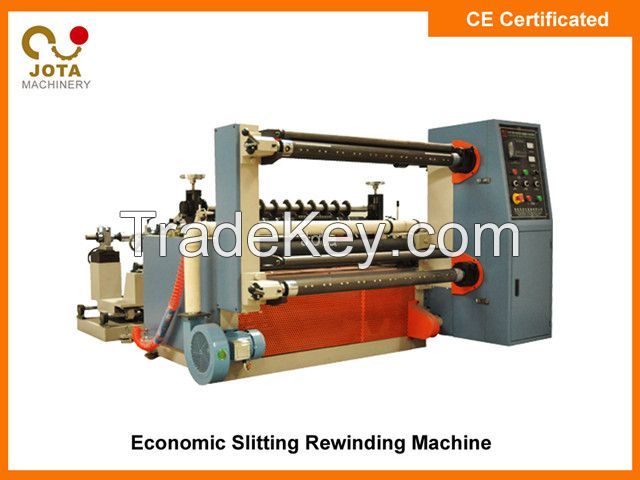

Automatic Jumbo Roll Slitter Rewinder Machine
| Specifications: | |
|
Application Material:Film,
Regular Paper, Kraft Paper, Bond Paper, Paper Board, Chip Board, Fiberglass mesh etc. |
|
|
1).Adopts PLC
contrl system
and touch screen. All the parameters are displayed on the monitor. Only material roll diameter and thickness needs to be setup, the PLC will give a proper parameters for machine running automatically. |
|
| 2).Adopts two sets of brand Inverter Motor with bar code, one for material feeding, the other for tension control. Siemens brand is from Germany. | |
|
3).Adopts two sets of
brand Frequency Inverters control the motors. On for material feeding, the other for tension control. |
|
| 4).Adopts 3 sets of Magnetic Brake/clutch from Taiwan for the unwind/rewind tension control. | |
| 5).Three sets of automatic tension control system are implanted the PLC, convenience operation. | |
| 6).All transmission rollers have been dynamic/static balance treated. | |
| 7).Adopts emergency switch. | |
| 8).Adopts auto meter counter. Got to the setup data, the machine stops and alarms. | |
| 9).All the electric appliances has been gained the CE certificate. | |
| Technical Parameters | JT-SLT-1300C |
| Max. Parent Web Width | 1300mm |
| Max. Parent Web Dia.: | 1500mm |
| Max. Rewinding Dia.: | 1000mm |
| Min. Slitting Width: |
Razor Type Blade: 10mm Disc Type Blade: 30mm |
| Thickness Range: |
Paper: 50-800gsm Film: 0.02-1.2mm |
| Max. Machine Speed: | 300m/min |
| Unwinding Shaft: | 3 Pneumatic Air Expanding Shaft |
| Rewinding Shaft: | 3 Pneumatic Air Expanding Shaft |
| Overall Dimensions: | 3600 x 2600 x 2000mm |
| Weight: | 3000kgs |
