Laminated insulated glass

Product Description

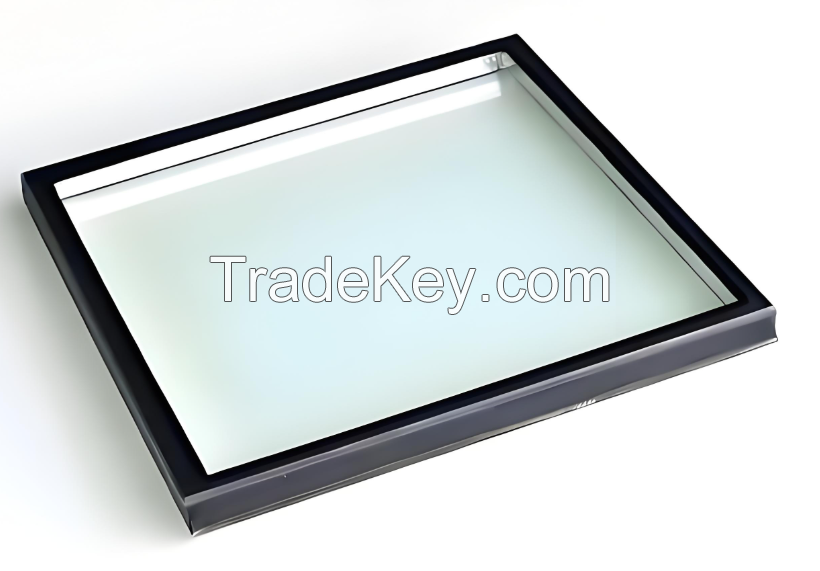

Laminated insulated glass
Laminated insulated glass is a high-performance composite glass product that combines the benefits of laminated glass and insulating glass. It offers exceptional safety, sound insulation, thermal insulation, and UV protection, making it an ideal choice for applications with stringent performance requirements. Laminated insulated glass is widely used in architectural windows, doors, curtain walls, and skylights, it is particularly suited for high-rise buildings, street-facing residences, commercial complexes, and spaces with heightened safety demands.

Laminated insulated glass structure
1. Outer Layer:
Typically made of tempered glass (heat-treated for enhanced strength, **5 times stronger than regular glass). When broken, it shatters into small granular pieces, significantly reducing injury risks.

2. Laminated Interlayer:
A PVB (Polyvinyl Butyral) film is sandwiched between two tempered glass layers and bonded under high temperature and pressure. Even if the glass cracks, the fragments remain adhered to the interlayer, preventing shattering (enhancing explosion-proof and anti-burglary performance).

3. Insulating Air Gap:
The laminated glass and another tempered glass (or laminated glass) form a sealed air or argon-filled cavity, framed by aluminum spacers and sealed with structural adhesive. The air gap typically ranges from 6mm to *4mm, providing excellent thermal insulation and noise reduction.

Laminated insulated glass performance advantages
â‘  Safety: The laminated layer is explosion-proof and penetration-proof, and the tempered layer is impact-resistant, suitable for high-rise buildings or hurricane-proof areas.
â‘¡ Energy saving: The hollow layer reduces heat conduction (low U value), reduces air conditioning energy consumption, and meets green building standards.
â‘¢ Sound insulation: The hollow structure + laminated layer can reduce ****0 decibels of noise, suitable for airports and downtown areas.
â‘£ Anti-ultraviolet: PVB film can block *9% of ultraviolet rays and protect indoor furniture from fading.
⑤ Weather resistance: Suitable for various climate environments and not easy to age.

How is laminated insulated glass manufacturing at our factory
1. Tempered treatment: The glass is heated to **0℃ and then rapidly cooled to form surface compressive stress.
2. Laminated laminate: After cleaning, lay PVB film and bond under high temperature and high pressure in an autoclave (about **0℃, ****4bar).
3. Hollow assembly: Separated by aluminum spacers, filled with molecular sieve to absorb moisture, and double-channel sealed to prevent air leakage.

Laminated insulated glass technical parameters
