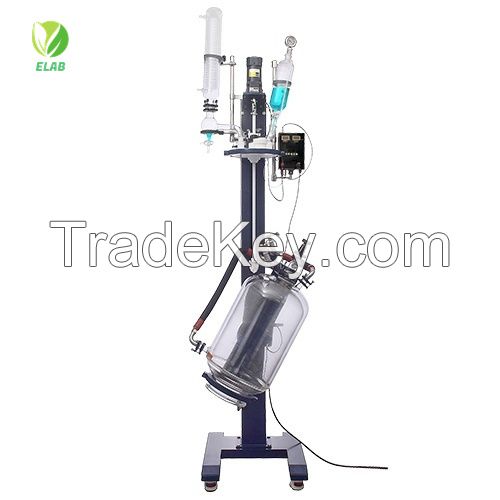

Lifting and rotating glass reactor
is improved from jacketed glass reactor, the reaction can be
lifting up and down, and also can rotate 360°, Lifting and rotating
glass reactor is very convenient to discharge the vessel samples
and very easy to clean. Lifting and rotating glass reactor is more
applied in modern fine chemical plants, biopharmaceuticals and new
material synthesis field.
| Model | GRL-10 | GRL-20 | GRL-30 | GRL-50 | |
| Kettle capacity | 10L inner diameter 230mm, outer diameter 290mm, inner length 354mm | 20L inner diameter 290mm, outer diameter 330mm, inner length 386mm | 30L inner diameter 330mm, outer diameter 365mm, inner length 481mm | 50L inner diameter 365mm, outer diameter 410mm, inner length 576mm | |
| Mezzanine capacity | about 8L | about 7L | About 9L | About 16L | |
| Voltage frequency | 220V/50Hz | ||||
| Total power | 130W | 160W | 160W | 160W | |
| Stirring motor power | 90W 1/3 | 120W 1/3 | 120W 1/3 | 120W 1/3 | |
| Lifting motor power | 40W 1/12.5 | ||||
| Stirring speed | 0-450rpm/min | ||||
| Kettle body temperature range | -80℃～+250℃ | ||||
| Temperature measurement accuracy | ±1℃ | ||||
| Vacuum | 0.098Mpa | ||||
| Kettle cover Φ265mm; six ports (full PTFE cover) | Stirring port | Φ50mm screw port | |||
| Condensation return port | 50# ball grinding port | ||||
| Constant pressure funnel mouth | 40# standard mouth | ||||
| Pressure relief port | 34# standard mouth | ||||
| Temperature measuring port | 24# standard mouth | ||||
| Solid feeding port | Φ80mm threaded port, inner diameter 50#mm | ||||
| Stirring paddle | Φ17×700H(mm), leaf span 150mm | Φ17×750H(mm), leaf span 190mm | Φ17×1000H(mm), leaf span 190mm | Φ17×1000H(mm), leaf span 190mm | |
| Condenser | Φ100×600H(mm), lower Φ60 flange | Φ100×600H(mm), lower Φ60 flange | Φ120×600H(mm), lower Φ60 flange | Φ120×600H(mm), lower Φ60 flange | |
| Condensation area | 0.4㎡ | 0.4㎡ | 0.5㎡ | 0.5㎡ | |
| Return elbow | Upper Φ60 flange port, left 50# ball mill plug | ||||
| Constant pressure funnel | 1L, the upper 29# standard port is equipped with a glass plug, the lower 40# standard plug; the lower part is equipped with a 40# standard port × 40# standard plug S-shaped adapter and the lid of the kettle | 2L, the upper 29# standard port is equipped with a glass plug, the lower 40# standard plug; the lower part is equipped with a 40# standard port × 40# standard plug S-type adapter and the lid of the kettle | |||
| Pressure reducing valve | 34# standard plug valve, air release nozzle (pagoda joint), outer diameter 12mm | ||||
| Mezzanine entry and exit circulation port | Φ45mm flange port is equipped with 6-point buffer device, and the external interface is 4-point wire port | ||||
| Discharge port | Φ75mm flange, Φ33mm discharge hole, oblique outlet (pagoda joint) Φ34mm, 300mm from the ground | Φ75mm flange, Φ33mm discharge hole, oblique outlet (pagoda joint) Φ34mm, 300mm from the ground | Φ75mm flange, Φ33mm discharge hole, oblique outlet (pagoda joint) Φ34mm, 300mm from the ground | Φ75mm flange, Φ33mm discharge hole, oblique outlet (pagoda joint) Φ34mm, ground clearance 290mm | |
| Vacuum nozzle | The outer diameter of the pagoda joint is 12mm | ||||
| Condensing coil inlet and outlet circulation nozzle | The outer diameter of the pagoda joint is 15mm | ||||
| Host lifting stroke | 600mm (actually, the stirring rod is 50mm away from the upper opening of the kettle lid) | 660mm (actually, the stirring rod is 50mm away from the upper opening of the kettle lid) | 640mm (actually, the stirring rod is 50mm away from the upper opening of the kettle lid) | 740mm (actually, the stirring rod is 50mm away from the upper opening of the kettle lid) | |
| Kettle rotation | |||||
